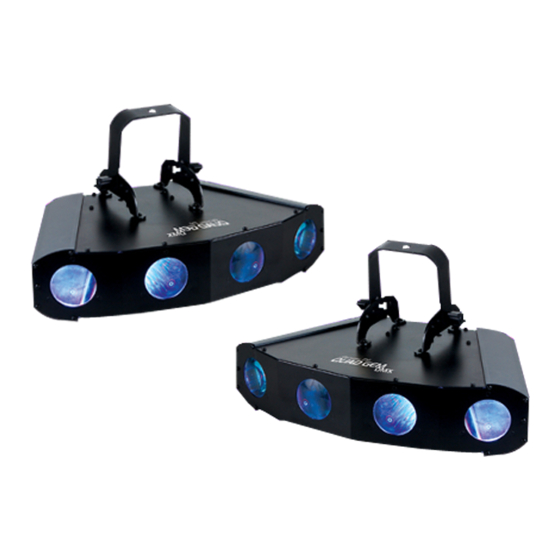

LED QUAD GEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED QUAD GEM and is the answer not in the manual?

Questions and answers

Related Manuals for Astrolite LED QUAD GEM

Summary of Contents for Astrolite LED QUAD GEM

  • Page 1 LED QUAD GEM...

  • Page 2: Safety Instructions

    INTRODUCTION Thank you for having chosen the item. You will see you have acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.
  • Page 3 Building a serial DMX-chain: Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected. Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
  • Page 4 166-191 blue+green 192-215 red+green+blue 216-255 white+red+green chasing Such channel works when channel 1 at 1-7. Control channel 5—LED pattern effects 1-21 white 21-48 48-73 green 73-96 blue 96-142 green+red 142-166 blue+red 166-192 blue+green 192-216 red+green+blue 216-255 white+red+green chasing Such channel works when channel 1 at 1-7. Control channel 6—LED pattern effects 1-22 white...

  • Page 5: Technical Specifications

    3. Press the button ENTER till AUTO shows in the led display, confirm by the button ENTER and the item will run the programmed scenes as master automatically, get the other items and press the button ENTER till A-001 shows in the led display and then confirm by the button ENTER, connect the items to the one as master by DMX cables and now they work simultaneously.
  • Page 6 Flash-rate: 10 Hz Dimensions: 480*280*130mm Weight: 5.0kgs Maximum ambient temperature t : 45° C Please note: Any information is subject to change without prior notice.
