Summary of Contents for Olympus FR-WR
- Page 1 FR-WR 取扱説明書 INSTRUCTIONS MODE D’EMPLOI INSTRUCCIONES BEDIENUNGSANLEITUNG 사용설명서 คํ า แนะนํ า การใช ง าน CÁC HƯỚNG DẪN Model No.: IM013...
-
Page 2: Names Of Parts
Be sure to read the instruction manuals for the fl ash and the wireless commander as well. If you use the product outside the country or region of purchase, you may violate local regulations. Olympus accepts no liability in this case. Checking the Contents of the Package Pouch... - Page 3 If you connect an older type of commercial fl ash with a voltage of approx. 350 V or higher, the wireless receiver will malfunction. x If you connect a fl ash with a communication terminal that does not meet the Olympus standard, the wireless receiver may malfunction. Preparing the Receiver Inserting the batteries (sold separately)
- Page 4 Attaching the wireless receiver Attaching the wireless receiver This procedure describes how to attach the wireless receiver to a separate fl ash stand (FLST-1). If you are attaching the wireless receiver to a commercial shoe adapter, refer to the instruction manual for the shoe adapter. Latch release button Hold down the latch release button ( 1 ), and slide the latch in the direction of the arrow ( 2 ).
-
Page 5: Turning On The Power
Attaching the fl ash to the wireless receiver Attaching the fl ash to the wireless receiver If you are attaching a commercial fl ash to the wireless receiver, refer to the instruction manual for the fl ash. x Make sure that both the receiver and the fl ash are turned off. x Dirt or moisture on the electrical contacts may cause a malfunction. - Page 6 You can control up to three groups of receivers. Within each group, the fl ashes will fi re with the same settings. This function allows you to use an Olympus fl ash that does not support radio communications as part of a radio communication system.

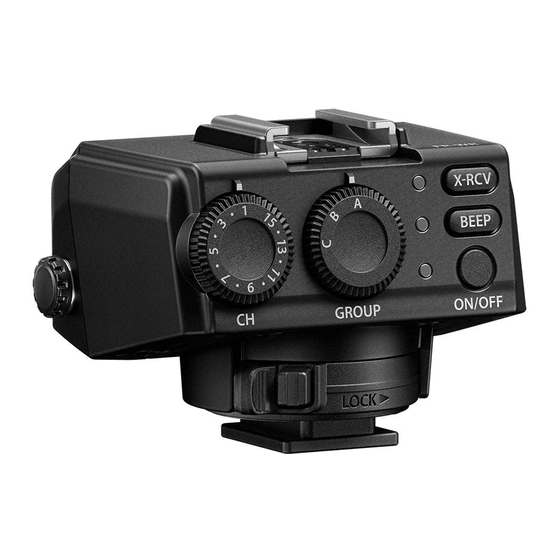

- Page 7 Frequency Frequency This product uses the 2.4 GHz band for wireless communications. However, other wireless devices may use the same frequency. Setup Group dial X-RCV lamp/button BEEP lamp/button Channel dial ON/OFF lamp/button Turn on the fl ash. • Refer to the fl ash manual for details. Press the ON/OFF button to turn on the wireless receiver.
-
Page 8: Safety Precautions
Contact your dealer or consult an Olympus Authorized Service Station. • To prevent a traffi c accident, do not direct the fl ash at a person operating a motor vehicle. - Page 9 • If you notice any abnormalities such as odor, noise, or smoke, stop using this device. Otherwise a fi re or burn may result. Remove the batteries carefully to avoid burning yourself, and contact your dealer or consult an Olympus Authorized Service Station.
- Page 10 • Consult the dealer or an experienced radio/TV technician for help. Declaration of Conformity Model Number : IM013 Trade Name : OLYMPUS Responsible Party : Address : 3500 Corporate Parkway, P. O. Box 610, Center Valley, PA 18034-0610, USA Telephone Number : 484-896-5000...
- Page 11 Simple Declaration of Conformity Hereby, OLYMPUS CORPORATION declares that the radio equipment type IM013 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.olympus-europa.com/ This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.
- Page 12 75 g (2.6 oz.) [excluding the batteries] Specifi cations are subject to change without notice. *1 Values are based on Olympus testing conditions and may vary according to the shooting conditions. The values assume the use of new batteries or fully charged rechargeable batteries.
- Page 13 Technical Support (U.S.A. / Canada) 24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel.1-800-260-1625 (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail: distec@olympus.com European Technical Customer Support Please visit our homepage http://www.olympus-europa.com or call: Tel.
- Page 14 2018.10. The following importer description applies to products imported into the EU directly by OLYMPUS EUROPA SE & Co. KG only. OLYMPUS EUROPA SE & Co. KG Wendenstrasse 14-18, 20097 Hamburg, Germany Manufactured by OLYMPUS CORPORATION 2951 Ishikawa-machi, Hachioji-shi, Tokyo 192-8507, Japan...
