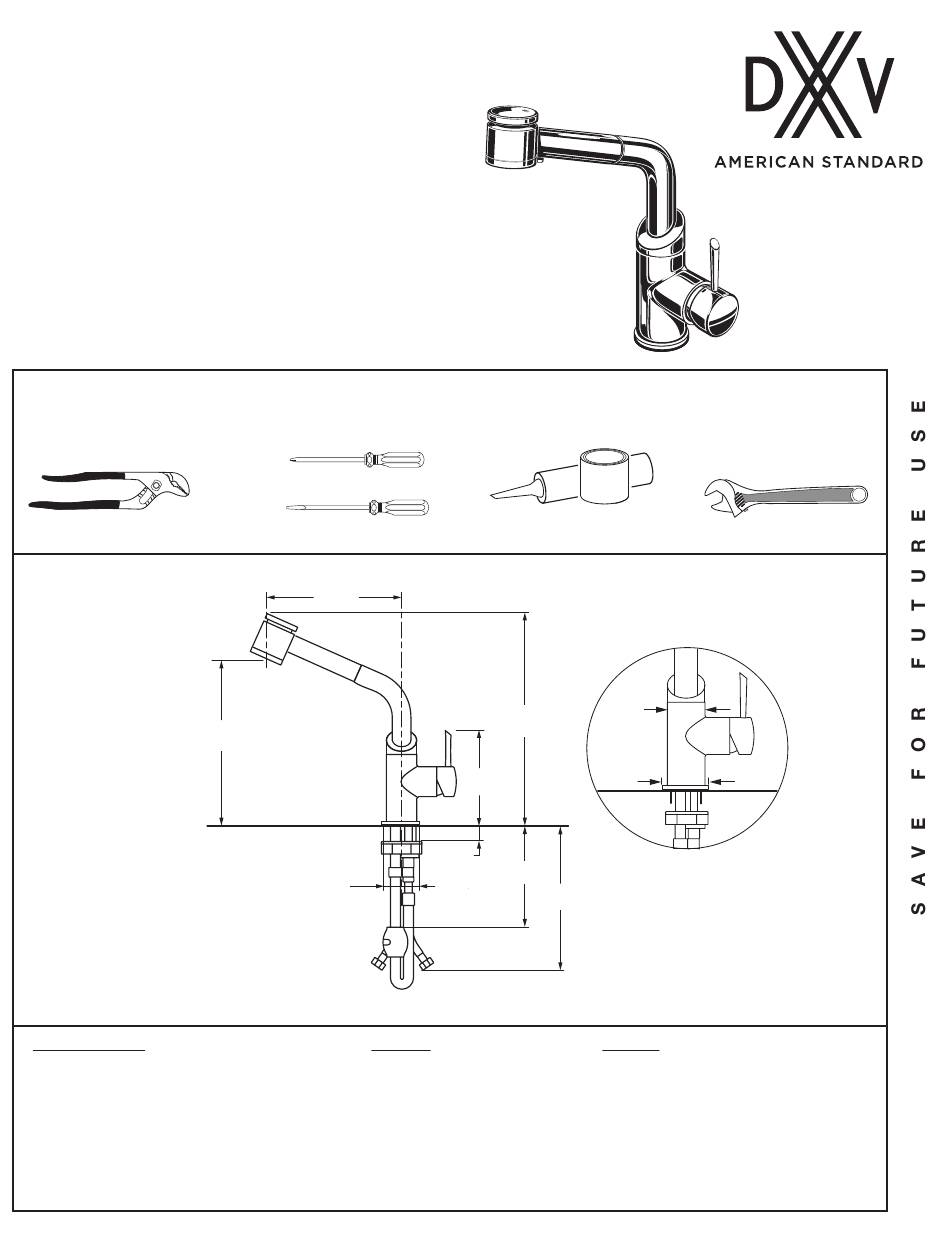

INSTALLATION INSTRUCTIONS
Fresno
Single Control Kitchen
™
Faucet with Pull Out Spray
Model D35403150
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks
ROUGHING-IN DIMENSIONS:
• For reference
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Phillips Screwdriver
Flat Blade Screwdriver
8-1/2"
(217mm)
10-1/4"
(262mm)
1-3/8" to 1-1/2"
(33 to 38mm)
DIA. MOUNTING HOLE
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
www.DXV.ca
Plumbers' Putty or Caulking
12-3/4"
(324mm)
6"
(154mm)
2"
(51mm)
15-3/4"
(400mm)
28-3/4"
(733mm)
1-800-395-1498
- 1 -
Adjustable Wrench
49 mm
(1-7/8")
60 mm
(2-3/8")
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965557 Re v. 1. 2
Advertisement
Related Manuals for American Standard DXV Fresno D35403150
Summary of Contents for American Standard DXV Fresno D35403150
-
Page 1: Installation Instructions
Fresno Single Control Kitchen ™ Faucet with Pull Out Spray Model D35403150 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores. - Page 2 CAUTION INSTALL FITTING Turn off hot and cold water supplies before beginning. RECESS • Make certain the O-RING SEAL (1) is properly seated in recess of faucet body. • Insert supply HOSES (2), SHANK (3) and SPRAY HOSE (4) through center hole of sink or mounting surface.
- Page 3 TEST INSTALLED FAUCET • Move HANDLE (1) into "off" position. • Unthread SPRAY HOSE (3) from SPRAY (2). • Turn on water supplies and check connections for leaks • Hold HOSE END (3) in sink and operate HANDLE (1) on and off, hot and cold to ush water lines thoroughly.
- Page 4 Fresno ™ Single Control Kitchen Faucet with Pull Out Spray MODEL NUMBER D35403150 Replace the "YYY" with appropriate nish code M964730-YYY0A SPOUT ASSEMBLY POLISHED CHROME ULTRA STEEL M964731-YYY0A PULL-OUT SPRAY WITH CHECK VALVE M962759-YYY0A SPRAY HOSE AND SEALS M962652-0070A M962648-0070A SPOUT SET SCREW SPOUT BUSHING &...
