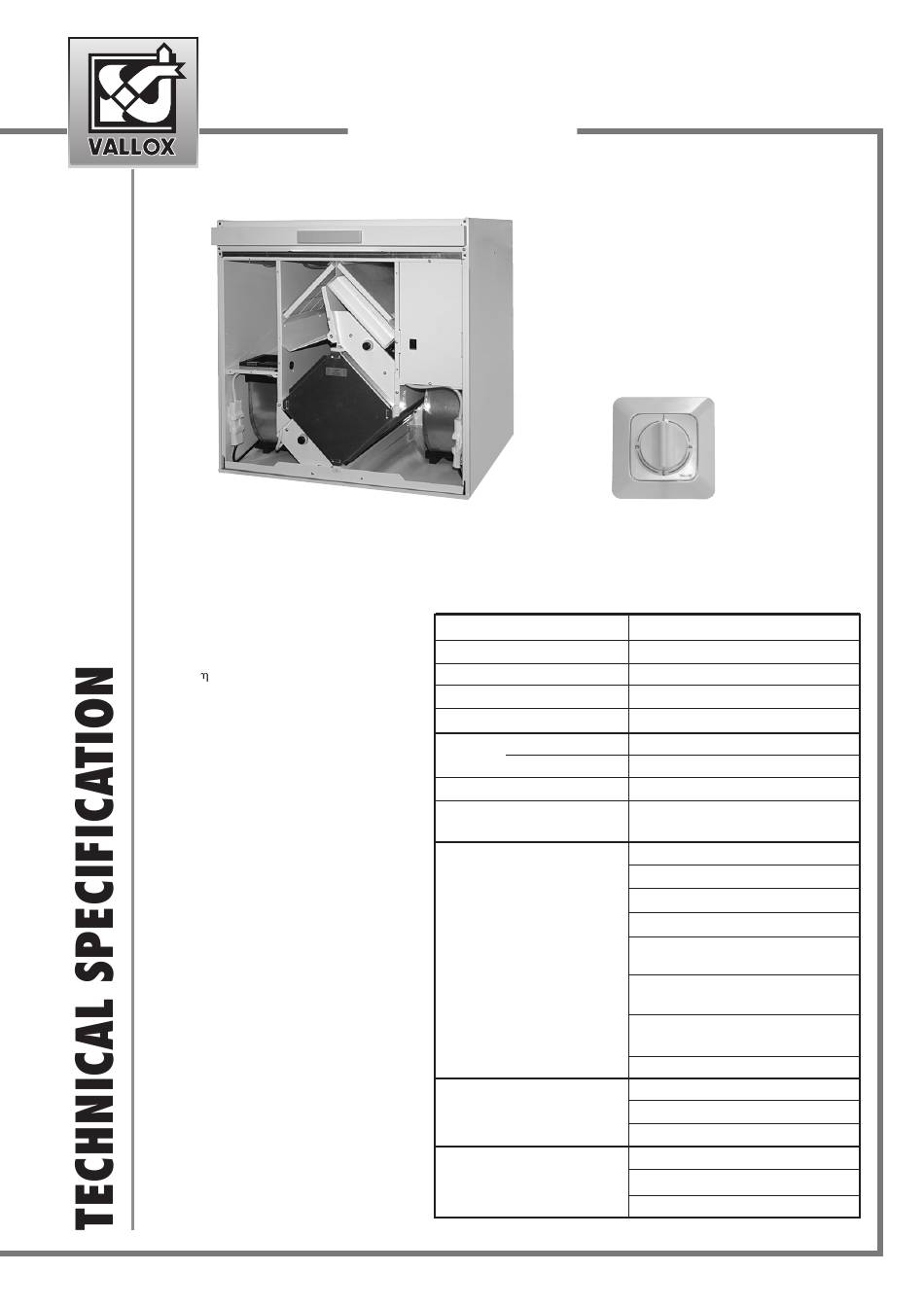

VALLOX 132 E R
• Cross-flow heat recovery cell
( >60%)
• Alternating current fans
• 4-step transformer adjustment
• Fireplace/booster function (optional)
• Manual heat recovery cell bypass
during summer
• Fireplace switch function (option)
• Antifrost
• Maintenance reminder
• Good outdoor air filtering (F7)
• Wide selection of radiator options
• Silencer unit (option)
© VALLOX • We reserve the right to make changes without prior notification
What the units include can vary depending on the sales area.
Vallox
132
E
Electrical connection
Class of protection
Fans
Extract air
Supply air
Heat recovery
Filters
Supply air
Extract air
Weight
Power adjustment
Options 132 E/132 E VKL
Options VALLOX 132 E
Options VALLOX 132 E VKL
Speed selection switch
230 V, 50 Hz
IP 34
210 W 0.91 A (AC) 120 dm
210 W, 0.91 A (AC)110 dm
Cross-flow cell, n > 60%
G4 and F7
G4
71 kg
Separate four-step speed selector
or PTXP/i132 cooker hood
Filter guard (supply and/or extract air)
Insulated attic floor penetration plate
Ceiling mounting plate Vallox 132 E
VKL expansion tank + stand
VKL heat exchanger pipe
for Vallox 132 VKL
Fireplace switch with 0-120 min.
timer, surface mounting
Fireplace switch with 0-120 min.
timer, flush mounting
Silencer unit
2.7 kW, 12.0 A
Preheating unit
Electric 1200 W, 5.2 A
Post-heating unit Electric 1200 W, 5.2 A
1.55 kW, 6.7 A
Preheating unit
Electric 1200 W, 5.2 A
Post-heating unit VKL water radiator
• 1.09.409E
• 3.10.2012
• Typ A3550 E
© VALLOX
/s (120 Pa)
3
/s (100 Pa)
3
Advertisement
Table of Contents
Related Manuals for Vallox 132E
Summary of Contents for Vallox 132E
- Page 1 1.55 kW, 6.7 A Preheating unit Electric 1200 W, 5.2 A Post-heating unit VKL water radiator © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
-
Page 2: Main Parts
Supply air to the dwelling Summer/winter damper Antifrost function Supply liquid/water of the heat recovery cell Return liquid/water © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area. - Page 3 Observe unit model and setting (summer or winter). Volume flow rate © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
- Page 4 86,2 / 95,7 97,3 / 109,0 supply/extract,dm 11,8 23,7 28,9 32,8 36,2 38,5 40,7 42,9 , dB(A) © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
- Page 5 Adjustment position 20/25 31/37 43/50 55/64 66/77 76/89 84/99 95/112 Air flow (dm /s)/pressure (Pa) , dB(A) © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
- Page 6 VENTILATION ADJUSTMENT Speed selector Vallox 132 E comes with a four-step speed selector switch. The flush-mounted switch is mounted in a standard instrument box. The switch can be used to select four of the eight speeds for the unit. Speeds 2, 4, 6 and 8 have been preselected for the unit. An expert may select different speeds at the transformer of the unit.
- Page 7 0.03 dm Water radiator freezing protection VALLOX 132 E VKL comes standard with a thermostat, which protects the radiator against freezing. It stops the unit when radiator temperature goes below +5 °C. When this happens, the self-actuated dampers close. The unit restarts and the dampers open as soon as radiator temperature exceeds +10 °C.
- Page 8 Antifreeze thermostat, cell +4 °C Cam switch Preheating radiator regulating Pressure difference switch, option thermostat +5 °C © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
- Page 9 Connection box (inside the unit) Mounted to replace wire 5-6 Antifreeze thermostat, cell +4 °C blue Cam switch © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
-
Page 10: Cooker Hood Control
3 x 1.5 S VALLOX 132 E 4 x 1.5 S OPERATING STATUS DATA CONTROL CENTRE 1993A YK 7021300A © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area. - Page 11 It is possible to mount an optional fireplace switch TK for the unit. The fireplace switch can be a 15...20 minute timer equipped with opening contacts. © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
- Page 12 It is possible to mount an optional fireplace switch TK for the unit. The fireplace switch can be a 15...20 minute timer equipped with opening contacts. © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
-
Page 13: Installation
INSTALLATION Location of the unit Vallox 132 E is mounted in a place where temperature does not fall below +10 ºC. Without protective casing, the unit has to be located in a place with no acoustic disturbance: storerooms, utility rooms etc. Vallox 132 E can also be located in a damp room, but not in a bathroom next to a sauna bath. - Page 14 2 mm. Wall mounting top bracket Wing Wall mounting bottom bracket © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
-
Page 15: Pipe Connections
Other connections Heat can be conducted to the post-heating radiator of Vallox 132 E VKL in other ways than described above. It is possible to build a separate circuit for the radiator if higher power is desired, or the risk of freezing can be eliminated by using non-freezing heat transfer solution. - Page 16 VALLOX 132 E www.vallox.com © VALLOX • We reserve the right to make changes without prior notification What the units include can vary depending on the sales area.
