INSTALLATION INSTRUCTIONS FOR REPLACING A BURNER ORIFICE
IN A MADISON PARK™ 27 DIRECT-VENT GAS FIREPLACE INSERT
KIT CONTENTS
1 ea. #38 NG Main Burner Orifice (30,000 BTU's)
1 ea. Instruction Sheet
TOOLS NEEDED
1/2" Open-End Wrench
Phillips Screwdriver
Madison Park 27 Replacement NG Burner Orifice Kit
Cat. No.
H9158
MPI27 and MPI27CD Replacement NG Burner Orifice Kit
IMPORTANT
The burner orifice provided in this kit is only for
use at elevations of 0 to 2,000 feet (610 M) in the
USA and 0 to 4,500 feet (0-1372 M) in Canada. At
higher elevations the BTU input must be de-rated
by 4% for every 1,000 feet (305 M) to maintain
the proper ratio of gas to air. If the installer must
convert the unit to adjust for varying altitudes, a
deration information sticker must be filled out by the
installer and adhered to the appliance at the time
of the conversion. Contact your local gas supplier
for deration requirements for your area.
If you encounter any problems, need clarification of these instruc-
tions or are not qualified to properly install this kit, contact you
local distributor or dealer.
READ THIS INSTRUCTION SHEET IN ITS ENTIRETY BEFORE BEGIN-
NING THE INSTALLATION.
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND
OPERATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO
THESE INSTRUCTIONS.
TURN OFF THE APPLIANCE AND ALLOW IT TO COMPLETELY COOL
BEFORE PROCEEDING.
Description
P/N 900419-00
Rev. NC, 02/2015
INSTALLATION INSTRUCTIONS
Step 1. TURN OFF THE GAS SUPPLY TO THE APPLIANCE. UNPLUG THE
POWER CORD.
Step 2. Remove the facade by lifting it up and away from the unit to
unseat the facade hooks from the mounting slots on the unit.
Place the facade face down on a soft, non-abrasive surface to
prevent damage.
Step 3. Remove the glass door by unhooking the latch at the upper right
and left of the door (see Figures 1 and 2). The top of the door
can now be pulled away from the firebox and rotated up and off
of the appliance.

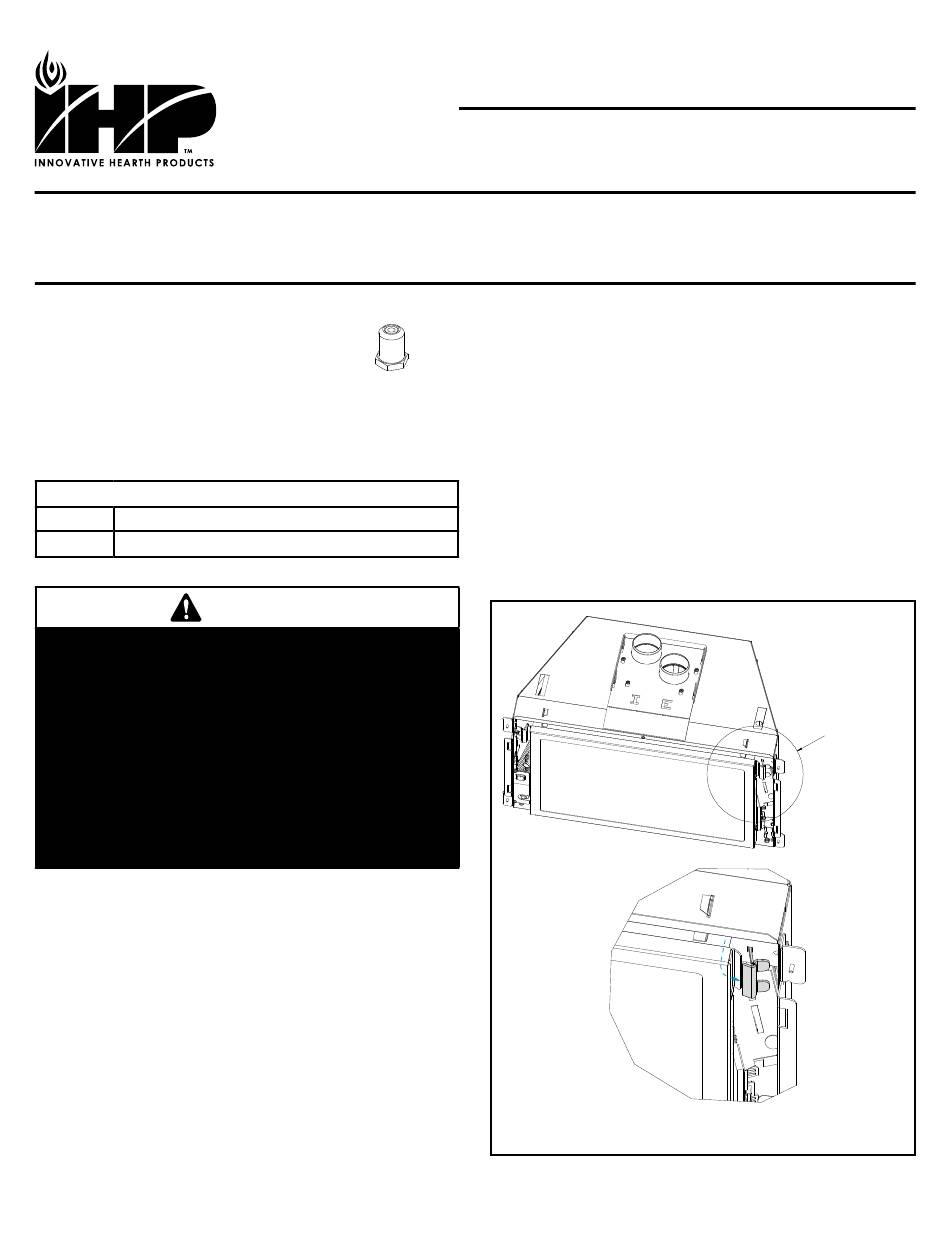

Figure 1 - Door Latches
HEARTH PRODUCTS
KITS AND ACCESSORIES
REPLACEMENT BURNER ORIFICE KIT
MPI27/MPI27CD, NATURAL GAS
See Detail A
SEE DETAIL A
Detail A
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IHP MPI27
Summary of Contents for IHP MPI27
- Page 1 Cat. No. Description can now be pulled away from the firebox and rotated up and off H9158 MPI27 and MPI27CD Replacement NG Burner Orifice Kit of the appliance. IMPORTANT The burner orifice provided in this kit is only for use at elevations of 0 to 2,000 feet (610 M) in the USA and 0 to 4,500 feet (0-1372 M) in Canada.
- Page 2 Figure 2 - Door Removal REMOVE BURNER Step 4. MPI27, Log Burner Removal (see Figure 3): a. Remove the left and right log support panels by lifting up the front edge to unseat the tab, then by pulling straight out to unseat the rear tab.
- Page 3 Figure 5 - Replace Burner Orifice Step 9. Reinstall the log set or glass media (depending on model). See Log Set Installation or Glass Media Installation in the Installation Step 7. MPI27: and Operation Manual. a. Reinstall the shutter tube on the adjustment arm stud.
- Page 4 IHP reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information. Printed in U.S.A. © 2015 Innovative Hearth Products P/N 900419-00 Rev.
