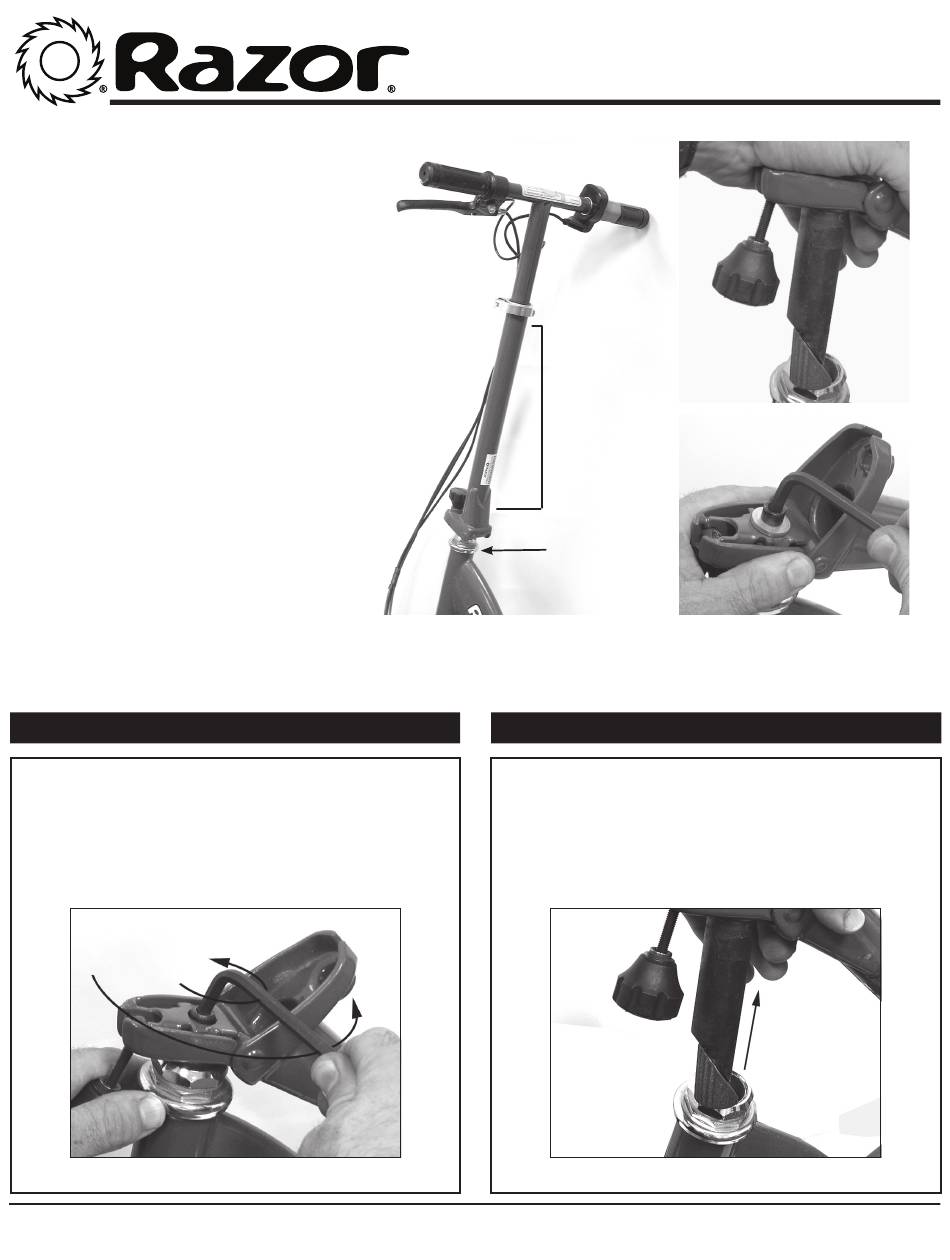

Assembly Overview and
Part Names:
A. T-bar Assembly
B. Quick Release Lever
C. Extension Tube with Folding System
D. Knob
E. Quill
F. Wedge
G. Stem Bolt
H. Hex Key (6mm)
I. Headset Lock Nut
Kit Contents:
1. Replacement Bolt
2. Washer
3. Wedge Assembly
4. Hex Key Wrench
WARNING: Turn off the main power switch before proceeding with the following instructions.
Step 1: Loosen the Stem Bolt
Using the hex key, loosen, but do not remove, the
stem bolt. Loosen the bolt 1-1/2 to 2 turns.
Need Help? Visit our website for additional instructions at www.razorusa.com or call toll-free at 866-467-2967 Monday - Friday
8:00am - 5:00pm Pacific Time.

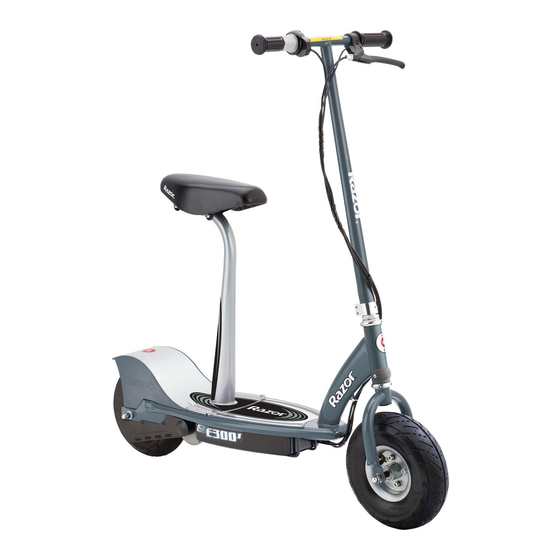

E300 ELECTRIC SCOOTER
REPAIR KIT INSTRUCTIONS
A
B
C
I
Step 2: Remove Folding System
With the stem bolt loose, you should be able to
lift the folding system out of the fork as shown.
If needed, lightly tap on the top of the stem bolt
with a small hammer to release the wedge from
inside the fork and allow removal.
D
E
F
H
G
1
