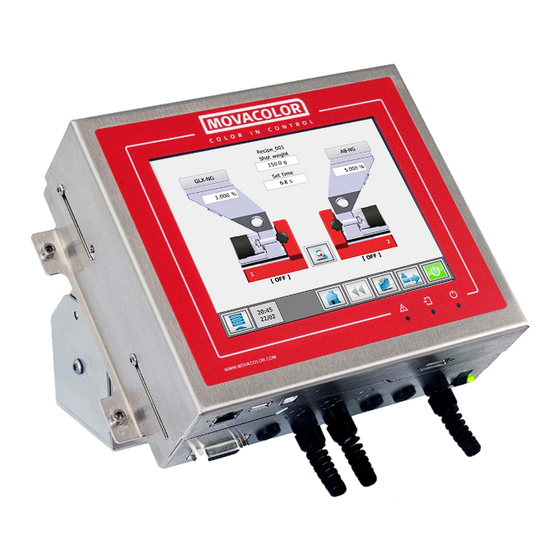

- Page 1 MCTC CPU Exchange Software version : MCTC2.X and higher Manual revision : 03 Language : English Date : March 2017...
- Page 2 Index Index 1 Introduction Symbols Terms Transport Receipt 2 General information Safety Certification Operating environmental conditions 3 CPU Exchange 4 Touchscreen calibration MCTC CPU Exchange manual...
- Page 3 Two or more dosing systems on one machine. Transport To protect the Movacolor unit against damage during transport, the unit is packed in a cardboard box filled with polyurethane foam. Delivery terms are Ex-Works Sneek, The Netherlands. Buyer is responsible for the transport.
- Page 4 Before switching on the unit for the first time, ensure that the mains power voltage applied is between 95 and 250VAC. Always switch off the Movacolor control cabinet and disconnect the mains power plug from electrical power before performing maintenance.
- Page 5 2 upper screws, remove the 2 lower screws. Unlock the CPU board by moving both the locks sideward simultaneously gently. The CPU board pops up a little bit, you can take it out of the socket now. MCTC CPU Exchange manual...
- Page 6 Push down the board gently until it “clicks” in the locking mechanism. Be sure the module is inserted correctly (straight). WRONG CORRECT Close the MCTC control cabinet and place/tighten the 4 screws. MCTC CPU Exchange manual...
- Page 7 You will need an empty USB memory stick and a special file called mctc_ts-calibrate.muf. Request this file at your local Movacolor representative or download from the Movacolor website software section (login required) ...
