Summary of Contents for Eleiko WPPO

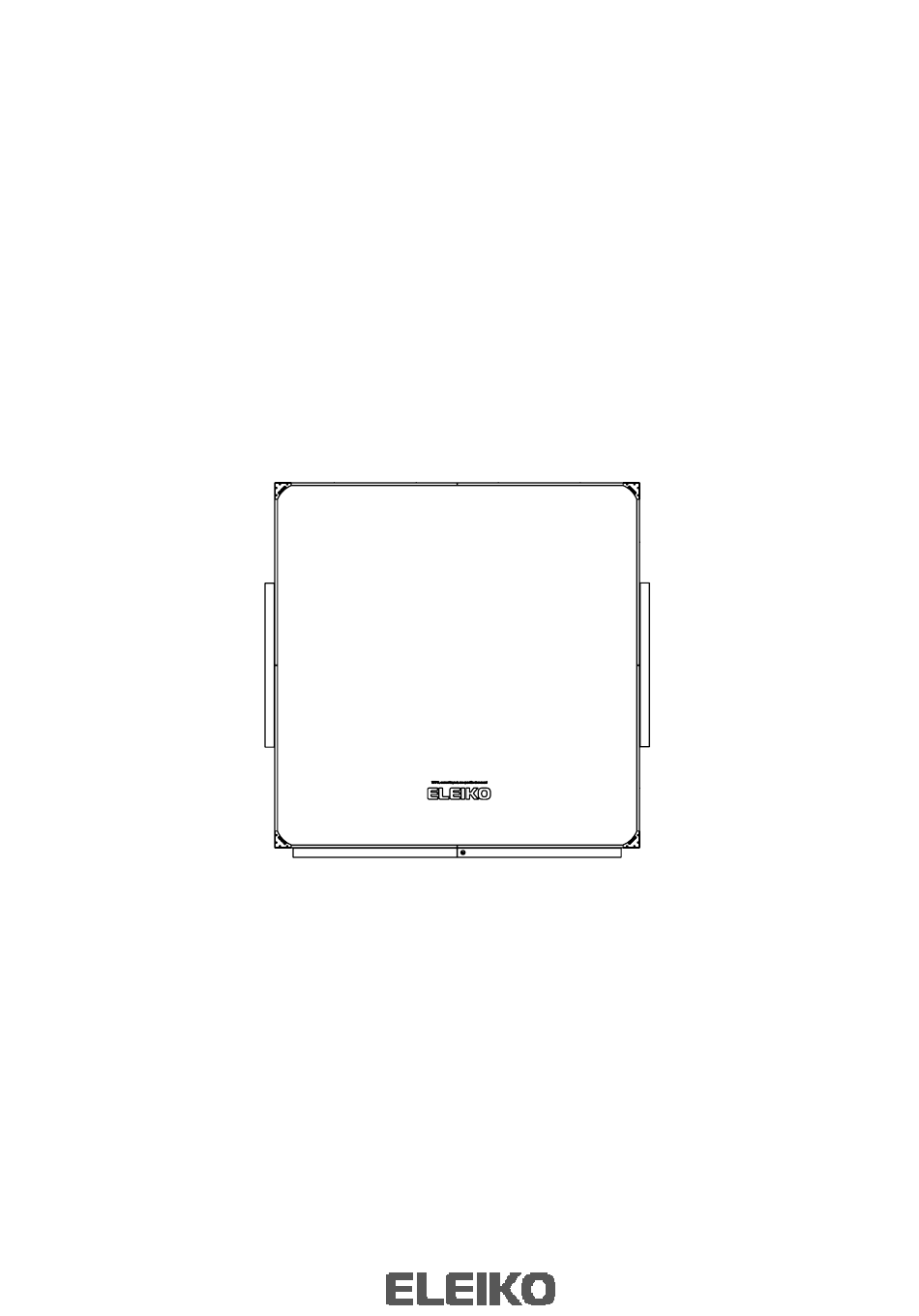

- Page 1 Eleiko WPPO Powerlifting Competition Platform - 4 x 4 m Art.nr 3061189-xxx...
-
Page 2: Safety Instructions
ELEIKO-installer. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment. -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS This product is used for WPPO powerlifting Bench press, competition and training. Product weight 278 kg Dimensions (L x W x H) 4000x4000x30 FOOTPRINT AREA 4000 Add sufficient clearance, not less than 0,6 m, on all sides. Taking into... - Page 4 CONTENTS Steel tube Textile carpet 4x4 m Plywood Art no: 3002108-01 Art no:3002107 Ramp Corner Bracket Screw M8x12 Screw M6x12 Wood Screw 4x45 Plastic extension Art no: 2000747-L12 Art no:2000863-L12 Tape, double sided Art no: 3001973...
-
Page 5: Required Tools
REQUIRED TOOLS Allen key 5 mm Allen key 4 mm Screw driver, phillips GENERAL The table below is general torque to use for different threads. Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8. TORQUE (Nm / ftlb) THREAD Quality 8.8... - Page 6 ASSEMBLY INSTRUCTIONS bracket screw M8x12 corner screw corner Bracket...
- Page 7 ASSEMBLY INSTRUCTIONS plywood...
- Page 8 ASSEMBLY INSTRUCTIONS tape, double Carpet, textile 4x4 m sided...
- Page 9 ASSEMBLY INSTRUCTIONS Steel tube Ramp Plastic extension Screw M6x12 Wood Screw 4x45 wood screw 4x45 screw M6x12...
- Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
