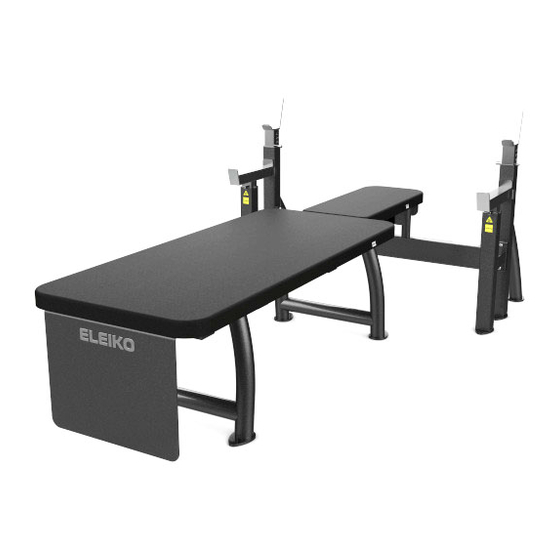

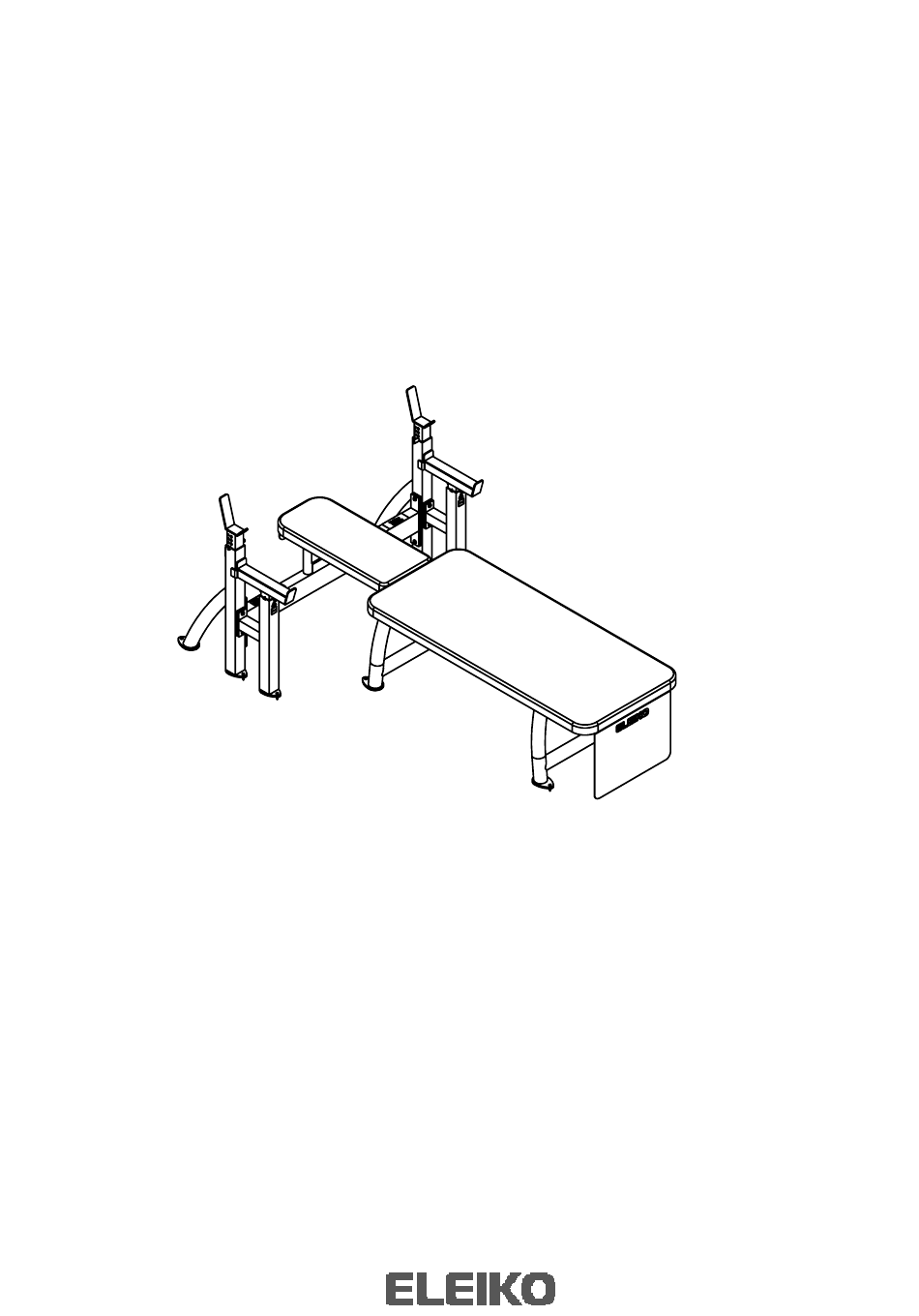

- Page 1 Eleiko WPPO Powerlifting Bench Art.nr 3085175-060...
- Page 2 Replace damaged labels immediately. 8. Eleiko package for products can be made of wood, be aware of splinters, MUST use gloves and proper work wear. 9. Eleiko package material could be a risk when handling, be aware of crushing, MUST use work wear including gloves and hard shoes.
-
Page 3: Product Specifications
PRODUCT SPECIFICATIONS This product is used for WPPO powerlifting Bench press, competition and training. Product weight 74 kg / 163 lbs Max user weight 180 kg / 397 lbs Max training weight 350 kg / 772 lbs 2228x1246x1095 mm Dimensions (L x W x H) 98"x49"x43"... -
Page 4: Required Tools
REQUIRED TOOLS Screw driver Wrench Hex key Hex key Hex key Philips 17 mm 8 mm 6 mm 4 mm Avoid electric screw drivers, most of the time they destroy more then they help. GENERAL The table below is general torque to use for different threads. - Page 5 CONTENTS RXS 5,5x19 MK6S M10x16 RXS 5,5x32 Art no. 2000855-L19 Art no. 2000765-L16 Art no. 2000855-L32 Washer M6x25 M6x45 Art no. 2000889 Art no. 2000682-L25 Art no. 2000682-L45 Washer Nut M10 MC6S M10x90 Art no. 2000719 Art no. 2000718 Art no. 2000863-L90 MK6S M10x60 Art no.
- Page 6 CONTENTS Sign small Padding large Padding small Art no. 3061190A35 Art no. 3061190p70 Art no. 3085175A07 Art no. 3061190A02 Pad support front Pad support rear Sign large Art no 3085175A01 Art no. 3061190A19 Beam Side right Side left Safety support Art no.
- Page 7 ASSEMBLY INSTRUCTIONS Make sure floor is clean Sign small (x1) and no sharp edges or anything that can damage the upholstry, Place the two paddings upside Screw RXS 5,5x19 (x2) down according to picture. Pad support front (x1) Screw M6x25 Washer (x4) Leg (x2) Nut M10...
- Page 8 Pin (x2) Safety arm (x2) Side right (x1) Screw MK6S M0x16 (x4) Upright (x2) beam (x1) Side left (x1) Pin (x2) Screw MK6S M0x16 (x4) Safety support (x2)
- Page 9 Screw MK6S M10x60 Nut M10 (x3)
- Page 10 ST5,5x32 (x10) For safe lifting. Attach Bench to floor, if wooden floor, use the screws ST 5,5x32 if other flooring use appropriate screw. At least, tighten all screws properly For safe use, be certain pin is properly inserted before load bar on bench.
- Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
