- Page 1 ELEIKO SVR PLATFORM retrofit small and large...
- Page 3 Be sure to install the equipment on a stable base and properly level the equipment. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment.
-
Page 4: Product Specification

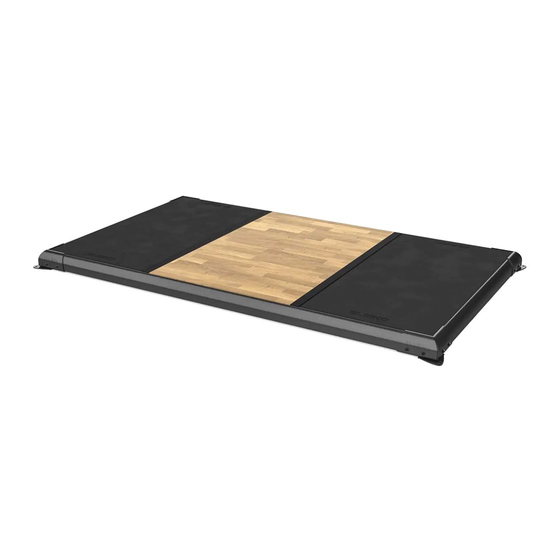

PRODUCT SPECIFICATION Weightlifting training platform. For indoor use only. Product weight from 240 kg / 530 lbs See below. Height Dimensions 105 mm / 4.1 in FOOTPRINT AND FREE AREA Add sufficient (mm) clearance, not less than 1.5 m (59 in), on all sides. - Page 5 CONTENTS for SMALL version Rubber tile standing deck Bonded foam for Art No 2000803 small standing deck Art No 2000618 ARP 220 yellow Art No 2000821 Insert deck Bonded foam (different looks depending for insert deck on insert version) Bonded foam corner Art No 2000820 Flat iron...
- Page 6 CONTENTS for LARGE version Bonded foam Rubber tile standing deck for standing deck Art No 2000802 large Art No 2000614 ARP 220 yellow Art No 2000821 Bonded foam Insert deck for insert deck (different looks depending on insert version) Bonded foam corner Art No 2000820 A-tube, L=2360...
-
Page 7: Required Tools
REQUIRED TOOLS... - Page 8 ASSEMBLY INSTRUCTIONS screw M10x16 corner bracket Loose screws!
- Page 9 flat iron C-Ttube screw M8x25...
- Page 10 x4-6 x4-6 bonded foam for standing deck ARP 220 yellow bonded foam Shows large platform. For small platform, only 2 sets of foam on each side of the middle part.
- Page 11 standing deck insert deck wood screw...
- Page 12 bonded foam frame front for insert deck standing deck...
- Page 13 rubber tile...
- Page 14 corner B-tube A-tube IMPORTANT: DO NOT TIGHTEN ANY CORNER UNTIL ALL FRAME PIECES ARE INSERTED INTO ALL CORNERS.
- Page 15 IMPORTANT: TIGHTEN FRAME AND SCREW IN ORDER SHOWN IN DIAGRAM, 1-2-3-4 (CRISS CROSS PATTERN). MAKE SURE TO PUSH THE OTHER END OF TUBE TO MAKE THE FRAME TIGHT.
- Page 16 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
