ABOUT BATTERY
1. When the Battery Low LED lights up, power is low. Please
replace the batteries.
2. When not in use we recommend removing the batteries to avoid battery
leakage which may damage the circuit board.
NOTICE OF USE
1.
If you are not going to use this device for a long time, remove the batteries to avoid
damage caused by corrosion from battery leakage.
2.
Unauthorized repair or disassembly of this device will void all the warranties.
3.
Avoid water.
4.
Do not store this device in an excessively hot place.
5.
Avoid knocks or dropping this device.
6.
Never use the antenna of this device to touch a metal surface or the antenna of
signal emission source. The warranty does not cover any damage caused
electricity or feedback.
SPECIFICATION
* Specification may change without notice.
Detecting range
50 MHz ~ 6.0 GHz
1. Wireless and wired camera, Micro SD hidden camera
2. Wireless RF devices
Detect object
3. Operating and standby cell phones
4. Magnet of GPS tracker
Dimension
L 10.4 x W 5.5 x T 2.2 cm
Weight
About 75g (not include battery)
Power
AAA / UM-4 dry battery x 3
Warning mode
Vibration
1. Adjust detecting distance to find signal source
Sensitivity Tuner
2. Eliminate the environment interference
100mW 2.4GHz Wireless camera
10mW 5.8GHz Wireless camera
Detecting Distance
GSM Cell phone
Smartphone
3G 2100 cell network
* The detecting distance will be varied depending on the signal strength.
WARNING
Use this device as an auxiliary, supplemental help or aid to prevent the risks caused by hidden camera,
cellular phone or other wireless devices. This device does not take the place of all the supervisions. Performance of this Radio
frequency (RF) product will be affected by the circumstance of use. The producer and marketing group accepts no liability for any loss
or damage by malfunction or misuse.
COPYRIGHT
All rights reserved
©Copyright 2019, All rights reserved.
by static
up to 20 feet
up to 3 feet
up to 40 feet
up to 10 feet
up to 2 feet
Made in Taiwan
06.2019
DSA055UEMR

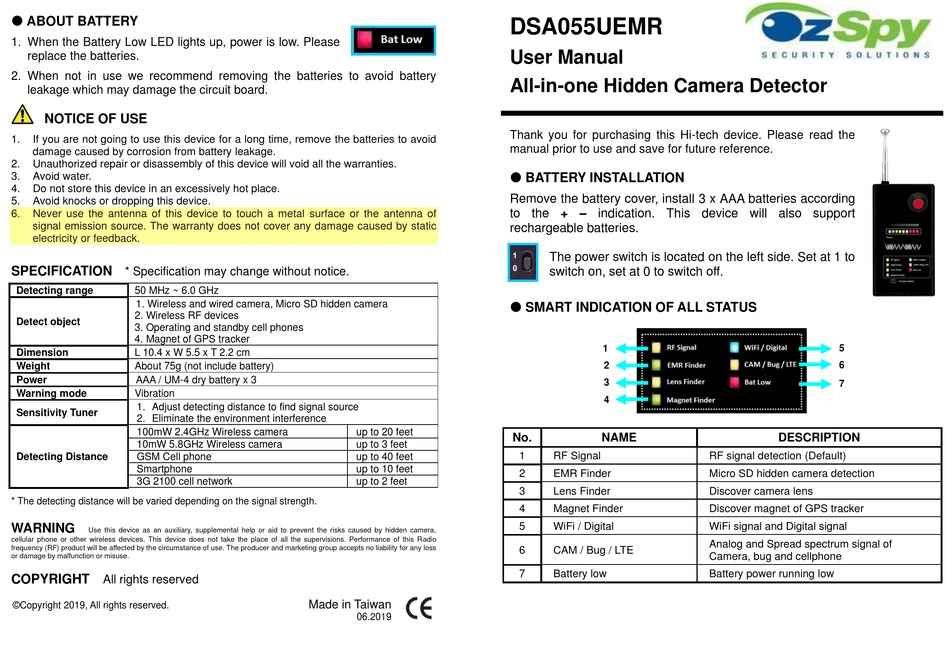

User Manual
All-in-one Hidden Camera Detector
Thank you for purchasing this Hi-tech device. Please read the
manual prior to use and save for future reference.
BATTERY INSTALLATION
Remove the battery cover, install 3 x AAA batteries according
to the + – indication. This device will also support
rechargeable batteries.
The power switch is located on the left side. Set at 1 to
switch on, set at 0 to switch off.
SMART INDICATION OF ALL STATUS
1
.
2
.
3
.
4
.
No.
NAME
1
RF Signal
2
EMR Finder
3
Lens Finder
4
Magnet Finder
5
WiFi / Digital
6
CAM / Bug / LTE
7
Battery low
5
.
6
.
7
.
DESCRIPTION
RF signal detection (Default)
Micro SD hidden camera detection
Discover camera lens
Discover magnet of GPS tracker
WiFi signal and Digital signal
Analog and Spread spectrum signal of
Camera, bug and cellphone
Battery power running low
Advertisement
Table of Contents
Related Manuals for OzSpy DSA055UEMR
Summary of Contents for OzSpy DSA055UEMR
- Page 1 ABOUT BATTERY DSA055UEMR 1. When the Battery Low LED lights up, power is low. Please User Manual replace the batteries. 2. When not in use we recommend removing the batteries to avoid battery All-in-one Hidden Camera Detector leakage which may damage the circuit board.
- Page 2 POWER-ON SELF-TEST the wired camera by the reflection of the illuminated light on the camera lens. Look through the Viewfinder in Lens finder mode, to locate the camera lens. Every time this device is switched on, it will perform a power-on self-test of all The lens finder can locate a hidden wireless camera even if the camera is functions and all the LEDs will light up (excludes Bat.
