ASME A112.18.1 / CSA B125.1
ICC/ANSI A117.1
Models/Modelos/Modèles
65390LF-sLHP & 65790LF-sLHP
Series/Series/Seria
RSVP™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Note: Handle Kits must be ordered separately. / Nota: Los juegos de manijas se venden por separado. /
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your
Brizo
®
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
®
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet
Brizo
facilement, vous devez:
®
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
TWO HANDLE WIDESPREAD LAVATORY FAUCETS -
LESS HANDLES
LLAVES DE AGUA / GRIFOS DE CAÑO ALTO -
SIN MANIJAS
ROBINETS À GRAND ENTRAXE POUR LAVABO -
SANS LES MANETTES
65390LF-sLHP
Note : Manettes en kit vendues séparément.
L
sSpecify Finish / Especifíque el Acabado / Précisez le Fini
1
Note: Drain sold separately
for 65790LF-LHP models.
Nota: El desagüe se vende
por separado para los
modelos 65790LF-LHP.
Note : Renvoi vendu
séparément pour les
modèles 65790LF-LHP.
65790LF-sLHP
L
2/15/09
Rev. A
Advertisement
Related Manuals for Brizo 65390LF-LHP
Summary of Contents for Brizo 65390LF-LHP

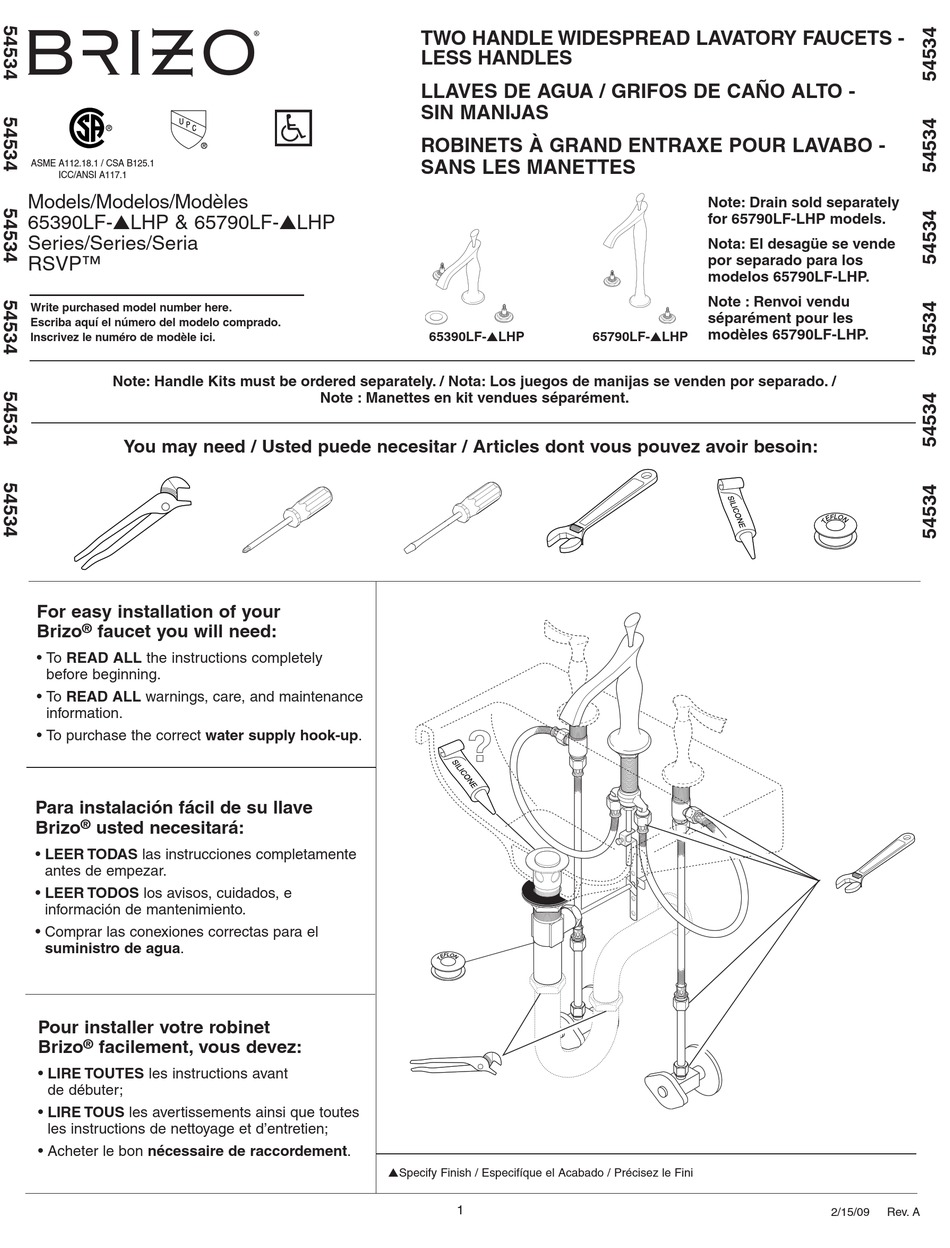

- Page 1 Note: Handle Kits must be ordered separately. / Nota: Los juegos de manijas se venden por separado. / Note : Manettes en kit vendues séparément. You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
-
Page 2: Instructions De Nettoyage
This warranty excludes all industrial, commercial & business usage, whose purchasers are parts may be obtained by calling 1-877-345-BRIZO (2749) (in the U.S. and Canada) or by hereby extended a five year limited warranty from the date of purchase, with all other terms of writing to: this warranty applying except the duration of the warranty. - Page 3 Modelos / Modèles 65390LF-LHP Models / RP48410s Lift Rod Barra de Alzar Tige de Manoeuvre HL5390s Lever Handle & Body, Hot Side Palanca y Cuerpo, Lado Caliente Manette et corps, eau chaude HX5390s Cross Handle & Body Manija en Cruz y Cuerpo...
- Page 4 Modelos / Modèles 65790LF-LHP Models / HX5790s Cross Handle & Body RP63504s Spout Finial Manija en Cruz y Cuerpo Pomo Manette cruciforme et Grain corps de manette HL5790s Lever Handle & Body, Hot Side Palanca y Cuerpo, Lado Caliente Manette et corps, eau chaude RP46408 Mounting Flange w/Gasket Brida de Montaje con Empaque...
- Page 5 1 1/8" (29 mm) Diameter Min. INSTALLATION OF VALVE ASSEMBLIES & TRIM INSTALLATION OF SPOUT Note: When drilling holes for side valves, it is recommended that hole size must be a Note: When drilling mounting holes for the spout it is recommended that minimum of 1 1/8"...
- Page 6 1/2" (12.7 mm) IPS If handles do not align, unscrew one or both handle & body assemblies and try assembling again after rotating handle slightly forward or backward until MAKE CONNECTIONS TO WATER LINES: alignment is achieved. NOTE: If handle alignment is still not satisfactory, remove one or both handle &...
- Page 7 65790LF, order and install push button drain or Remove pivot nut (1). Install horizontal rod (2) grid strainer drain. (See Brizo ® price list or visit Apply silicone to underside of flange (1). and stopper (3) as removable (4) or non-remov- www.brizo.com.)
- Page 8 3 mm Maintenance SHUT OFF WATER SUPPLIES BEFORE SERVICING FAUCET. If your faucet leaks out of spout outlet or around handle body, replace valve cartridge (1). A. Remove handle & body assembly (2) by turning body counterclockwise by hand. B. Remove screw (3) and stem adapter (4) using allen wrench provided with faucet. C.
