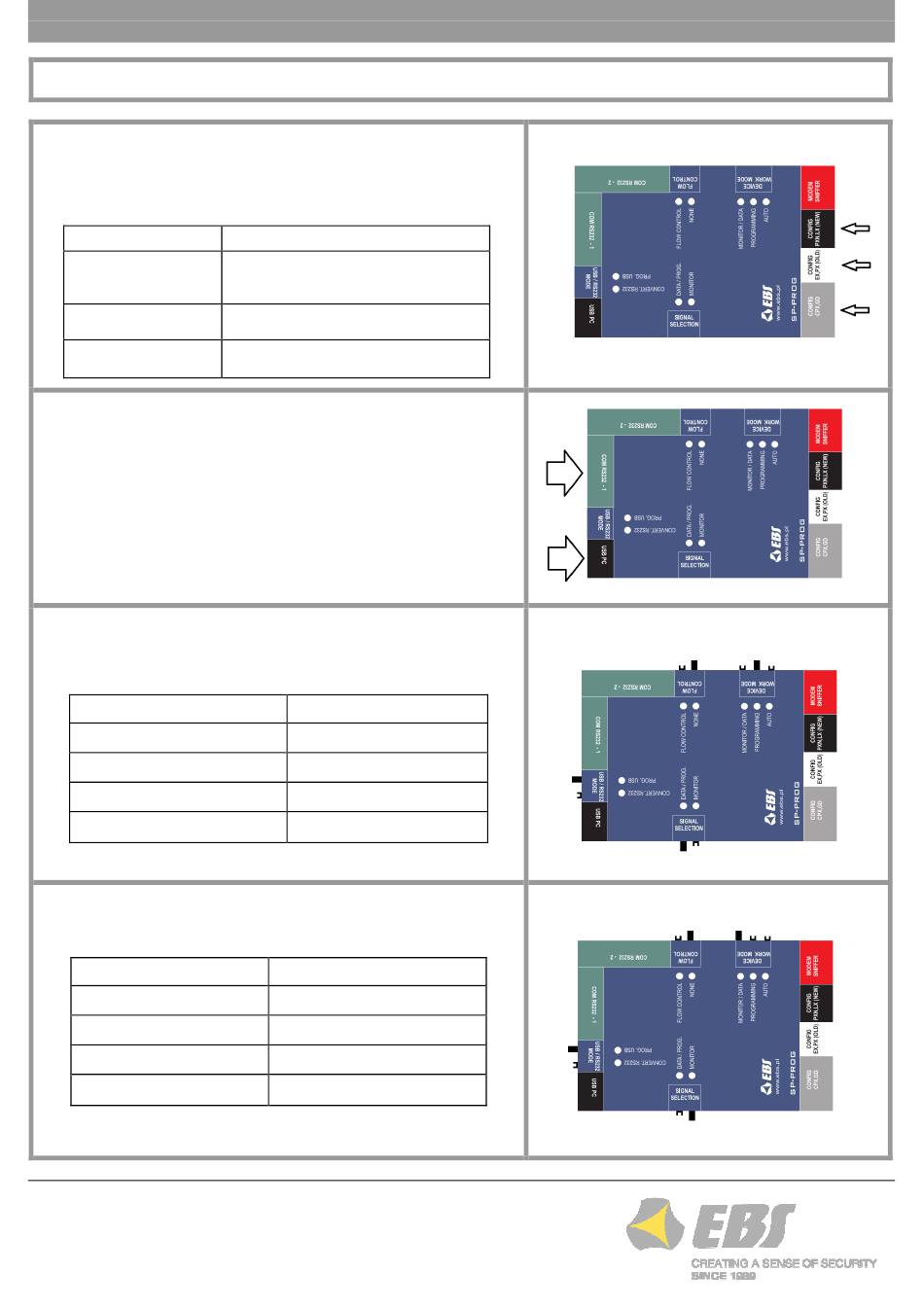

EBS SP-PROG Quick Start Manual

PL
1.

Connecting device to the programmer.

To configure or monitor the status of the device using the SP-PROG
programmer, connect them to the appropriate socket showed in the
table below.
Socket
CONFIG PXN,LX
(NEW)
CONFIG EX,PX
(OLD)
CONFIG CPX,GD
2.

Connecting programmer to the computer.

Connect SP-PROG programmer to the PC using RS232 serial COM
port - 1 or the USB port.
3.

Programming the device.

To enter the programming mode (configuration), set the switches on
the housing SP-PROG programmer as follows:
Switch
DEVICE WORK MODE
SIGNAL SELECTION
FLOW CONTROL
USB / RS232 MODE
4.

Monitoring the device.

To enter the monitor mode, set the switches as follows:
Switch
DEVICE WORK MODE
SIGNAL SELECTION
FLOW CONTROL
USB / RS232 MODE
* when monitoring device GD30 switch to position DATA/PROG
EBS Sp. z o. o.
59 Bronislawa Czecha St.
04-555 Warsaw, POLAND
Technical support : +48 22 51 88 477
E-mail : support@ebs.pl
Webpage : www.ebs.p
Quick start guide SP-PROG programmer
Device
PX100N, PX200N, PX100D, LX10,
LX20, LX20G, LX20G-3C, EX20, AG2*,
AG3*, AT*
EX200A, PX100A, PX200A
CPX200N, CPX200NW, LX2N, GD30,
GD30.2
Position
PROGRAMMING
DATA / PROG
NONE
PROG. USB
Position
MONITOR / DATA
MONITOR *
NONE
PROG. USB
SP-PROG_short_manual_v2.1_EN_PL_RU_ES.doc
