EBS MINI-PROG-BT Installation Reference

DESCRIPTION

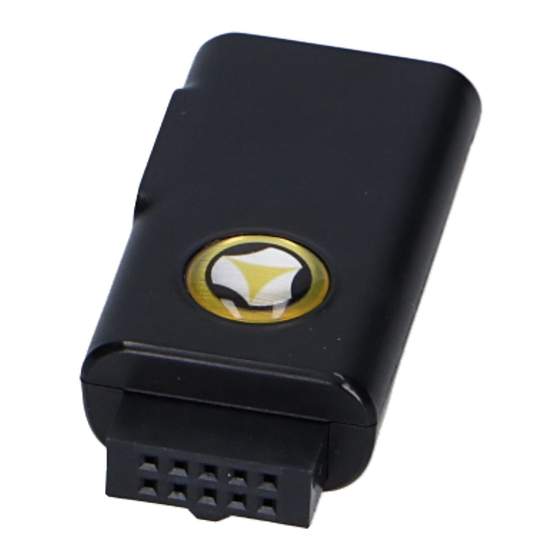

The MINI-PROG-BT is a small programmer that allows you to configure and monitor the EPX PRO

communicator equipped with the IDC10 interface. The MINI-PROG-BT, with Bluetooth technology and

dedicated application for the EBS Config 2.0, allows you to quickly program the communicator and control

its status using a computer or smartphone. In order to connect your device, you must have a Bluetooth

SPP (Serial Port Profile).

In addition, the MINI-PROG-BT has a micro USB connector that allows you to connect it to a computer that

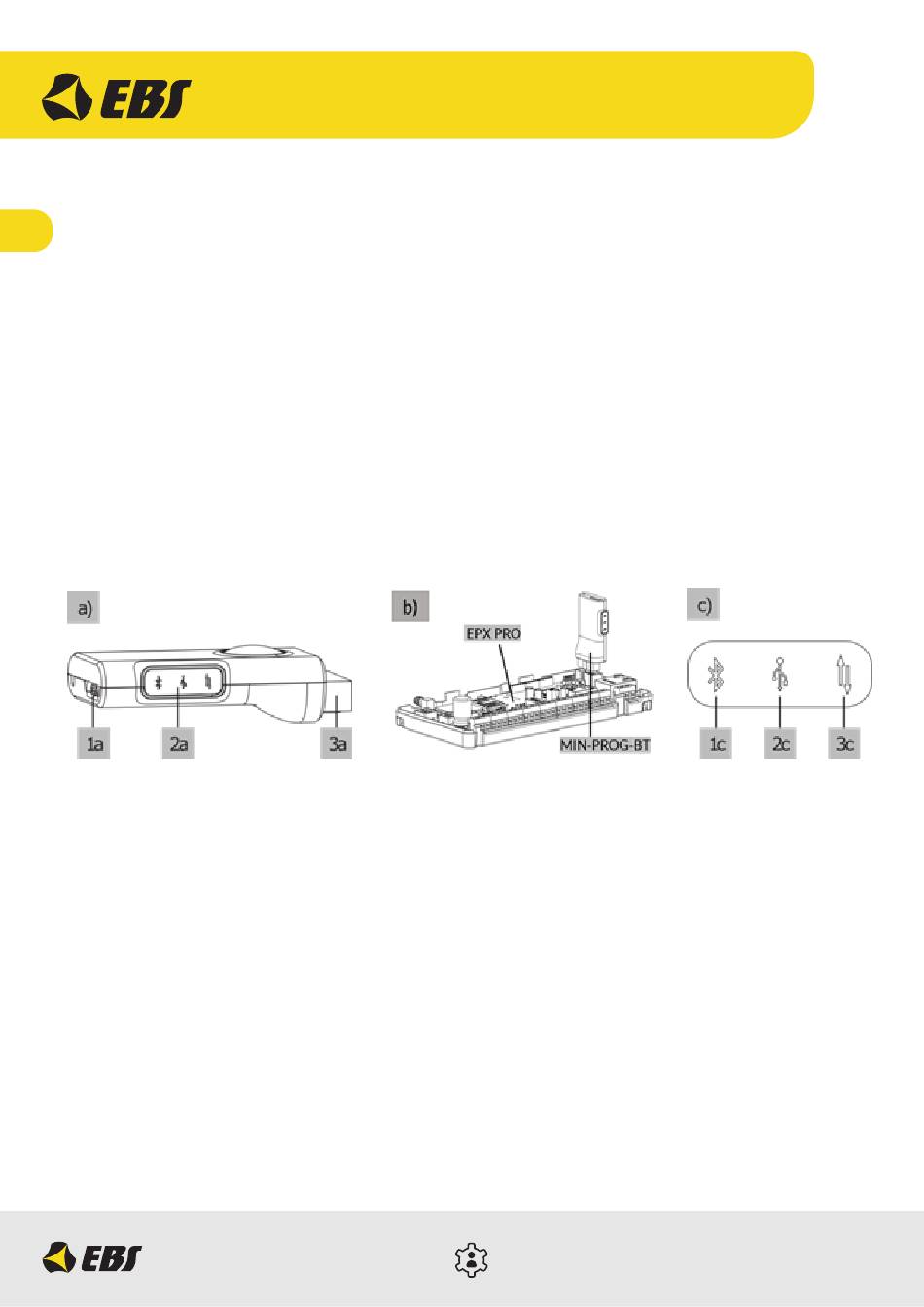

does not contain Bluetooth. The MINI-PROG-BT is powered from the host device (Fig. b). The figures

below present the programmer ports (Fig. a) and symbols (Fig. c).

* for the smartphone, an Android mobile app is available. iOS users must access the EBS Config 2.0

experience using a Windows computer.

Legend:

1a –

micro USB port for connecting the programmer to a PC via a USB cable.

2a – Panel with illuminated symbols.

3a – IDC10 socket for connecting the device directly to the device being configured/monitored.

1c – Blue-illuminated Bluetooth symbol – indicates Bluetooth connection.

2c – Yellow-illuminated USB symbol – indicates USB connection.

3c – Green-illuminated data transmission symbol – indicates the operation mode of the device

(continuous illumination: monitoring; flashing: configuration).
