Summary of Contents for SANUS VuePoint SAN25BB

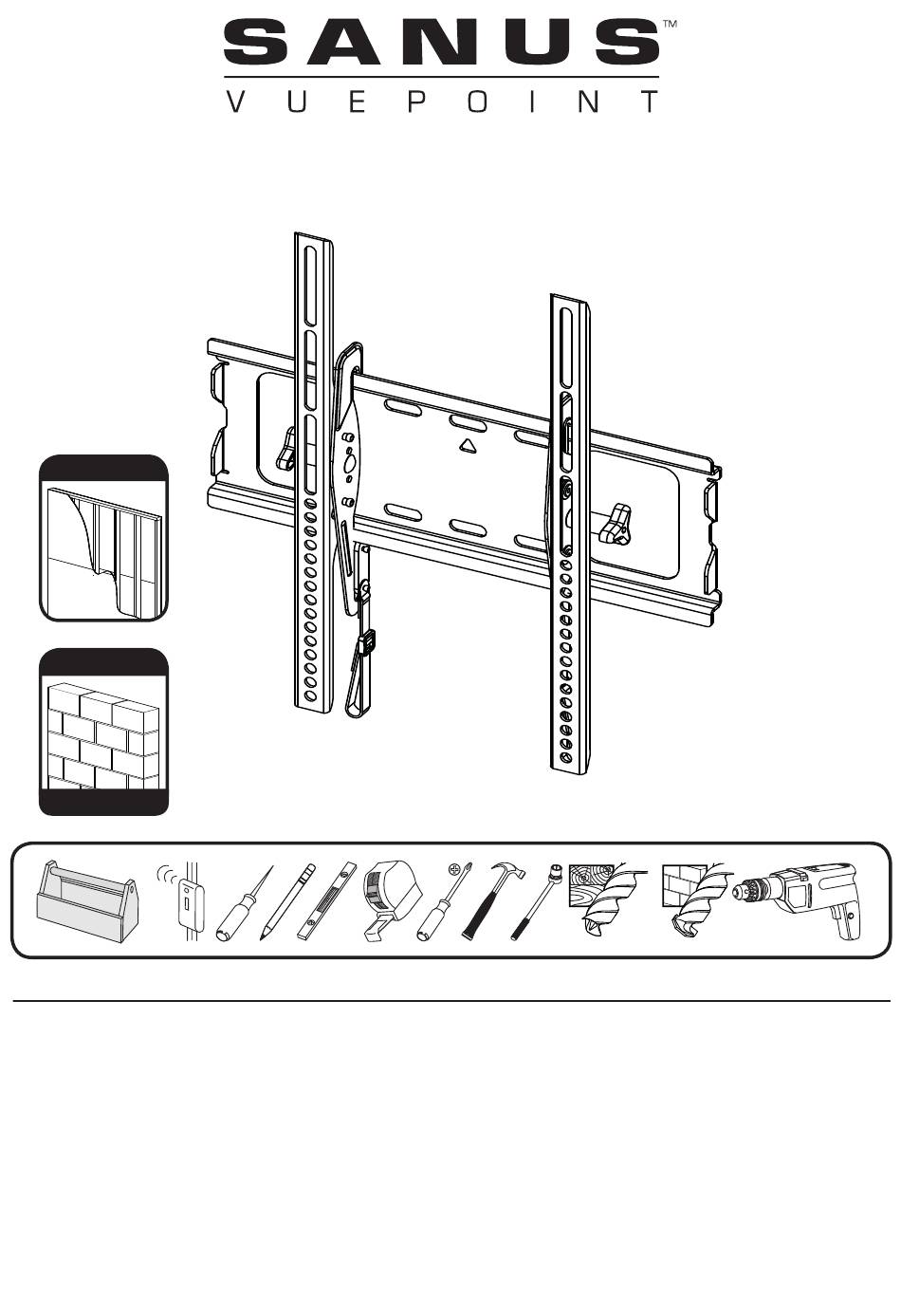

  • Page 1 SAN25BB (6904-002013 <00>) Wood Concrete Block or Solid 13mm 5.5mm 10mm (1/2 in.) (7/32 in (3/8 in. Sanus Systems 2221 Hwy 36 West Saint Paul, MN 55113 USA Customer Service Americas: 888-333-9952 • 952-277-3958 • info@vuepointav.com Europe, Middle East, and Africa: + 31 40 2324700 • info@vuepointav.com Asia Pacifi...
  • Page 2 WARNING: This product Solid Concrete and Concrete Wood stud walls Choose an Option Do Not contains small items that could Block Mounting be a choking hazard. Troubleshooting and Caution / Warning Heavy! Assistance Required. Unlock/Lock Tools required Maintenance 6902-002016 <00>...
  • Page 3 10° 5° 46.6 mm 1.84 in. 50 mm to 405 mm 120.7 mm 4.75 in. 430 mm 16.93 in. 95.2 mm 152 mm 3.75 in. 6.0 in. 405 mm 15.94 in. 393.7 mm 15.5 in. 6902-002016 <00>...
  • Page 4 CAUTION: IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT Specifi cations  Weight capacity-DO NOT EXCEED: 36 kg (80 lbs) includes TV and any accessories  Tilt: +5° / -10° CAUTION: Avoid potential personal injuries and property damage! ...
  • Page 5 [01] x 1 [02] x 1 [03] x 1 5/16 x 2.75 in. [04] x 3 [06] x 3 [05] x 3 M4 x 12mm M4 x 30mm [07] x 4 [08] x 4 M6 x 12mm M6 x 20mm M6 x 35mm [09] x 4 [10] x 4...
  • Page 6 CAUTION: Install TV Brackets Before you begin, hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M6, or M8). Verify that there are adequate threads to secure the brackets to the monitor. If you encounter resistance, stop immediately and contact customer service. CAUTION: Avoid potential personal injuries and property damage! Use the shortest screw and spacer combination to accommodate your needs.
  • Page 7 For TVs with a fl at/unobstructed back. Ensure that the bracket is level on the back of the TV. Standard confi gurations are shown. If you need extra space to accommodate cables, recesses, or protrusions, see installation option 1-2 that uses spacers. For special applications, or if you are uncertain about your hardware selection, contact Customer Service.
  • Page 8 For TVs with an irregular/obstructed back. Ensure that the bracket is level on the back of the TV. Standard confi gurations are shown. For special ap- plications, or if you are uncertain about your hardware selection, contact [03] Customer Service. [02] [11] [08]...
  • Page 9 For ease of access, straps should be level with the bottom of the TV. 6902-002016 <00>...
  • Page 10 CAUTION: Wall Mounting 2-1: Wood Stud Mounting CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage:  Pilot holes MUST be drilled to a depth of 75 mm (3 in.), using a 5.5 mm (7/32 in.) diameter drill bit. ...
  • Page 11 5.5mm 13mm (1/2 in.) (7/32 in Wood Stud Wall Mounting – See Cautions in Step 2. Locate studs. Verify the center of the stud with an awl or thin nail or use an edge to edge stud fi nder. Level the wall plate [01] and mark the hole locations. <...
  • Page 12 13mm 10mm (1/2 in.) (3/8 in. Solid Concrete and Concrete Block Mounting – See Cautions in Step 2. Level wall plate and mark the hole locations. Drill pilot holes as illustrated. Insert lag bolt anchors [04]. Tighten the lag bolts [06] only until the washers [05] are pulled fi rmly against the wall plate [01].
  • Page 13 CAUTION: Hang the TV with Mounting Brackets onto the Wall Plate HEAVY! You will need assistance with this step. CAUTION: When installing the monitor to the wall plate, be sure the locking tabs [T] engage into the locked position. There is an audible click when the parts are correctly assembled. To remove the monitor, pull down the straps [S] to disengage the locking tabs, then lift the monitor off the wall plate.
  • Page 14: Maintenance

    MAINTENANCE: A: Adjust up / down tilt tension 10° 5° 6902-002016 <00>...
  • Page 15 6902-002016 <00>...
  • Page 16 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product.
