VALVE TO PEDAL CONNECTION (SEE FIG. 2)
Unscrew the front nut (1) and insert the cable (4) through the slot
1.
cable support bracket. See pedal instructions for more details and
exact slot location. The rear nut (3) remains at the end of the thread
(2). Adjust cable holder (2) for proper pedal operation and secure
it's position with nuts (1) and (3).Use 3/32 wrench for tightening
nuts(M5x0.8mm).
Verify that the actuating cable is inside the valve recepticle; see
2.
Fig.3
Insert cable end T-bar (5) into the pedal lever ( see instruction for
3.
pedal )
3

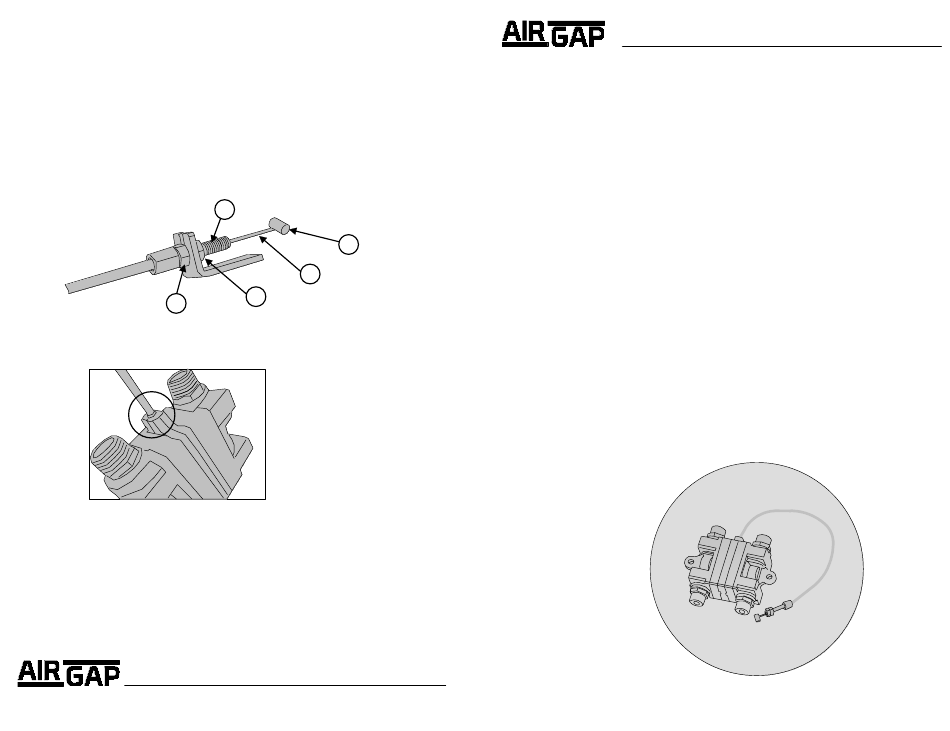

FIG. 2
FIG. 3
CAUTION:
During installation, avoid unnecessary bends of the actuating cable.
The AG250-002 valve is maintenance-free.
500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com
2
5
4
1
Copyright 2018 AIR GAP INTERNATIONAL
AG250-002
Model:
TAP-A-FLOW™
COLD/HOT POTABLE
WATER VALVE
Part No.
AG250-002
Doc. # 400-0766-002
Placentia, California
Advertisement
Related Manuals for AIR GAP AG250-002
Summary of Contents for AIR GAP AG250-002
- Page 1 FIG. 2 WATER VALVE FIG. 3 CAUTION: During installation, avoid unnecessary bends of the actuating cable. The AG250-002 valve is maintenance-free. Part No. AG250-002 Copyright 2018 AIR GAP INTERNATIONAL 500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com...
- Page 2 (drywall type or block/brick type ) into the wall. (shown drywall type) Dual Mechanical Water Valve Mount the AG250-002 valve to the wall with the water flow direction Water Flow Direction arrow pointing up. Use supplied bushings and screws (use 6mm/ Arrow Up 1/4"...
- Page 3 When the pedal is released, the water flow stops. CAUTION: During installation, avoid bending valve actuating. Any bending needs to be smooth. Part No. AG250-103 Copyright 2018 AIR GAP INTERNATIONAL 500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com Doc. # 400-0788-001...
- Page 4 FIG. 3 Insert valve cable end T-bar (5) into the pedal lever (6). (FIG. 2) Pass cable from the AG250-002 valve through the 1" opening under the cabinet plate and connect it to the pedal AG250-103. Use provided #10 screws to attach the pedal.
