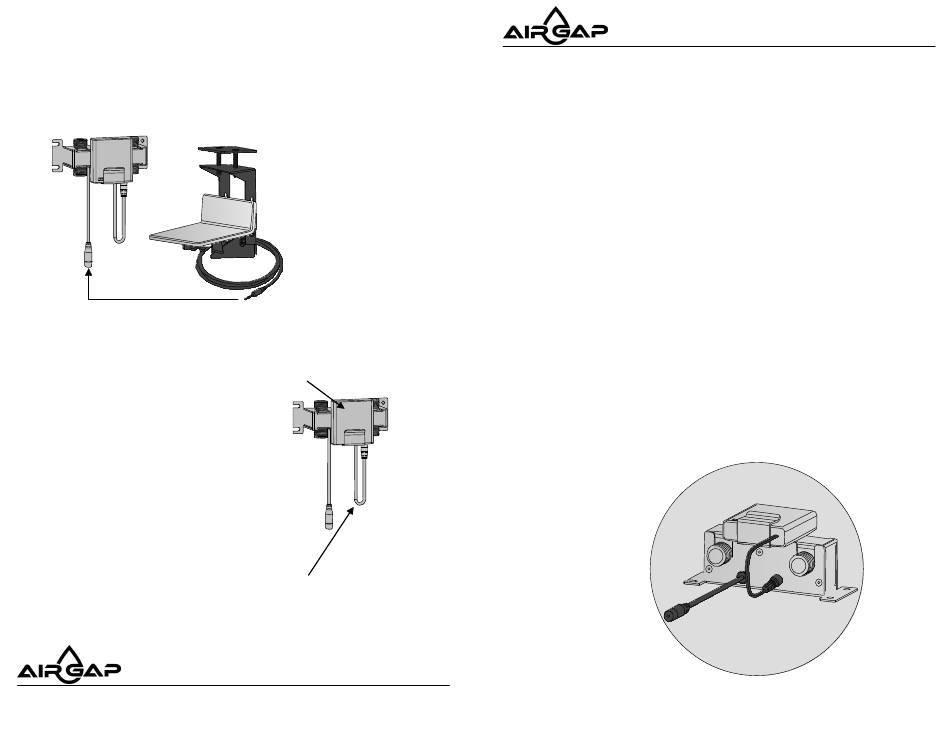

VALVE TO PEDAL CONNECTION (SEE FIG. 2)
Connect 3.5mm Female Cable from the valve to the 3.5mm Male
1.
Cable on the pedal. See pedal installation on manual for the pedal.
FIG. 2
CAUTION:
AG250-003 Valve is battery operated ( AA type, 4pcs included)
Change battery instruction.
Disconnect cable connection between
1.
battery pack and valve.
Remove Battery pack from valve body.
2.
3.
Open battery pack by removing a screw
on the bottom of battery pack.
4.
Replace batteries, following "+" and
"_" sign.
Close battery pack by installing the
5.
screw. Install battery pack into valve unit
in original place.Squeeze metal tab if
needed to hold battery pack in place.
6.
Connect 2.5 mm power plug cable
from battery pack to 2.5mm power
jack on the valve body (see FIG 3.)
500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com
Battery pack
2.5 mm
Power Plug
cable from
battery pack
Copyright 2019 AIR GAP INTERNATIONAL
AG250-003
Model:
TAP-A-TAP™
COLD/HOT POTABLE
WATER ELECTRICAL
VALVE
Part No.
AG250-003
Doc. # 400-0787-003
Placentia, California
Advertisement
Table of Contents
Related Manuals for AIR GAP AG250-003
Summary of Contents for AIR GAP AG250-003
- Page 1 AG250-003 FIG. 2 Model: TAP-A-TAP™ COLD/HOT POTABLE WATER ELECTRICAL CAUTION: AG250-003 Valve is battery operated ( AA type, 4pcs included) VALVE Change battery instruction. Battery pack Disconnect cable connection between battery pack and valve. Remove Battery pack from valve body.
- Page 2 Disconnect hoses (hot and cold water) between the faucet and water supply. Dual Electiical Mount the AG250-003 valve to the wall in shown on FIG.1 position . Water Valve Use supplied screws and anchors to mount valve. Install them in mounting openings on opposite corner of the unit (use 6mm/ 1/4"...
- Page 3 As long as the pedal is pressed, water will flow from the faucet. When the pedal is released, the water flow stops. (battery operated) Part No. AG250-603 Copyright 2019 AIR GAP INTERNATIONAL Doc. # 400-0792-001 500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com...
- Page 4 Secure pedal to the floor by removing paperback from opening under the cabinet plate and connect it to the adhesive pads on the bottom of the pedal (1) or secure AG250-003 valve installed inside the cabinet. (FIG.1) pedal using mounting screws (2). (FIG.2 ) BOTTOM VIEW FIG.
