MadgeTech QuadTemp Quick Reference Card

Product Quick Reference Card
Device Maintenance
Battery Replacement
Materials:
3/32" HEX Driver (Allen Key)
Replacement Battery (U9VL-J)
- Remove the cover from the device by unscrewing the four
screws.
- Remove the battery from its compartment and unsnap it
from the connector.
- Snap the new battery into the terminals and verify it is secure.
- Replace the cover taking care not to pinch the wires. Screw
the enclosure back together securely.
Note: Be sure not to over tighten the screws or strip the threads.
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT
SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, DISASSEMBLE,
CRUSH, PENETRATE OR INCINERATE. BATTERY MAY LEAK OR
EXPLODE IF HEATED ABOVE 60°C (140°F).
Recalibration
The QuadTemp or OctTemp standard calibration is one point
at 25°C for the internal temperature sensor and 0mVs for the
thermocouple channels.
Pricing:
Recalibration traceable to NIST $60.00
Recalibration $40.00
Additional:
As Found Data $15.00 per parameter/channel
Verification Point $15.00 per point
Channel (1st) $30.00 at 25°C
$45.00 at custom point
Additional Channels $3.00 at 25°C
$4.50 at custom point
To send the devices back, visit www.madgetech.com, select
Services then RMA Process.
Part Number QuadTemp
Internal Channel
Semiconductor
Temperature Sensor
Internal Channel
0.05°C
Temperature Resolution
Internal Channel Accuracy +0.5°C
Remote Channel Temperature
*See Table for Details
Sensor Range, Resolution & Accuracy
Cold Jct. Compensation Automatic
Channels 1 internal & 4 remote
Memory 500,000/channel
Sample Rate 4 seconds up to 24 hours
LED Indicator None
Required Interface Package IFC110 or IFC200
Baud Rate 115,200
Typical Battery Life 18 months typical
Operating Environment –20 to +60°C, 0 to 95%RH (Non–Condensing)
Material Anodized aluminum
Dimensions 7.24" x 2.7" x 1.02"
(183mm x 68mm x 26mm)
Approvals CE
* Remote Channel Range, Resolution & Accuracy
Thermocouple Range (°C) Resolution
J -210 to +760 0.1°C
K -260 to +1370 0.1°C
T -260 to +400 0.1°C
E -260 to +980 0.1°C
R -50 to +1760 0.5°C
S -50 to +1760 0.5°C
B +60 to +1820 0.5°C
N -260 to +1300 0.1°C
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
PO Box 50 Warner, NH 03278
l
Phone 603.456.2011 Fax 603.456.2012
l
www.madgetech.com info@madgetech.com
l

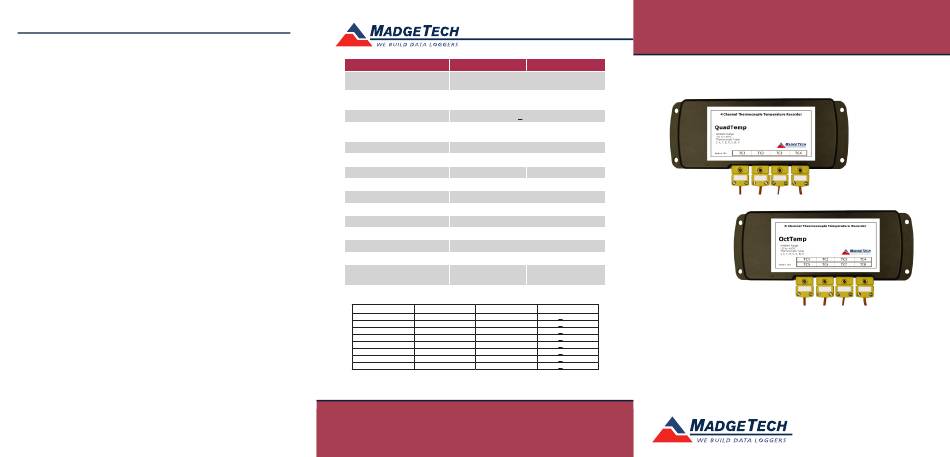

Product Information Card
OctTemp
1 internal & 8 remote
500,000/channel
7.24" x 2.7" x 1.26"
(183mm x 68mm x 32mm)
Accuracy
+0.5°C
+0.5°C

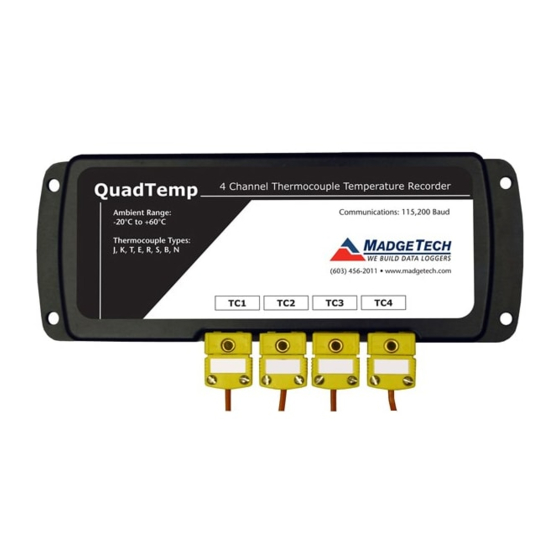

QuadTemp
+0.5°C
4-Channel Thermocouple Based Temperature Recorder
+0.5°C
+2.0°C
OctTemp
+2.0°C
+2.0°C
8-Channel Thermocouple Based Temperature Recorder
+0.5°C
REV F 2010.04.15
QuadTemp and OctTemp
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
