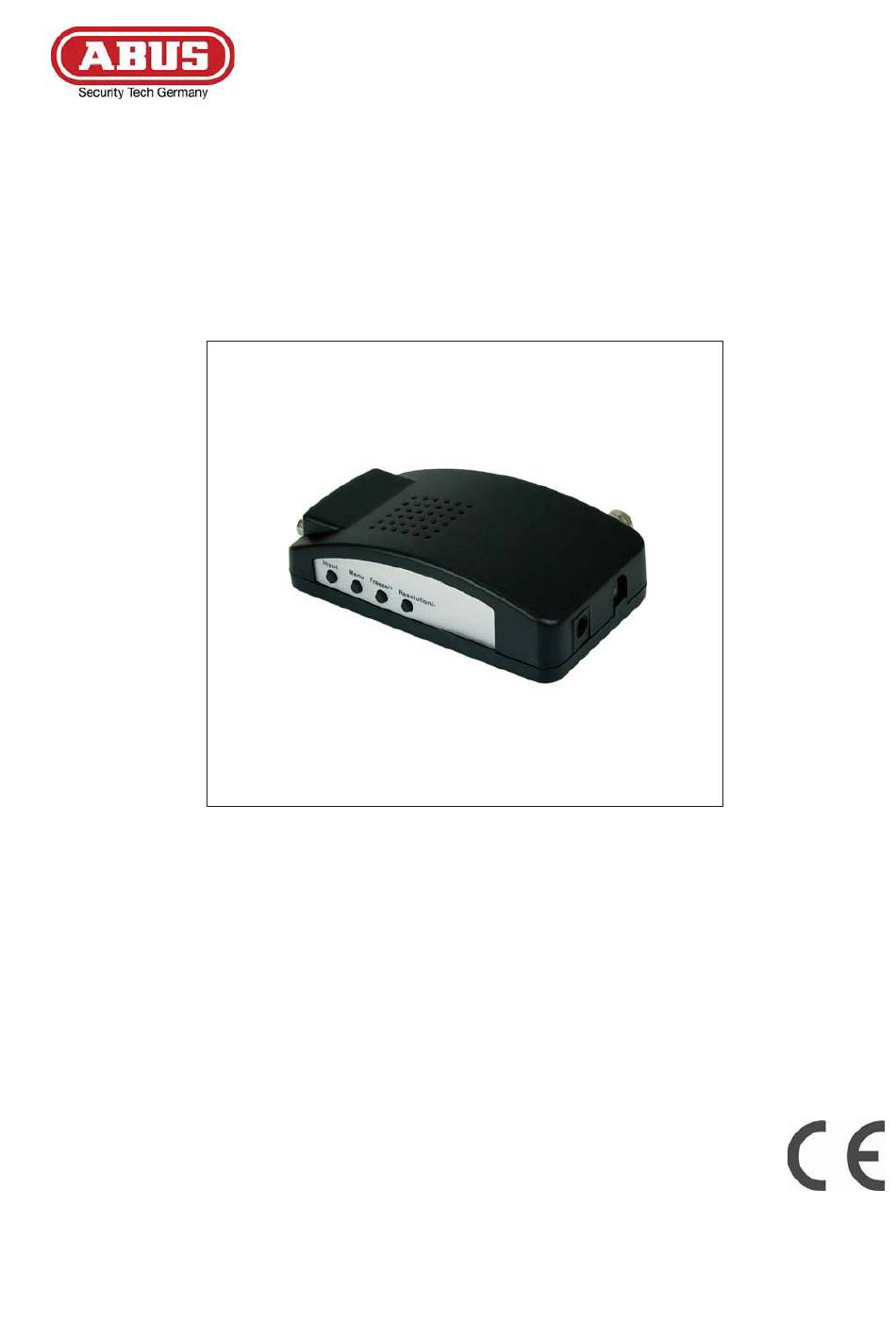

Page 1: User Manual
TVAC20000 User manual Version 01/2010 Original English user manual. Keep for future use. - Page 2 The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
- Page 3 The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss! ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.
- Page 4 English Warnings Follow all safety and operating advises before starting-up the device! 1. Follow these directions in order to avoid damage of the power cord or plug: Do not modify or process the power cord or plug arbitrarily. Do not bend or twist the power cord. Make sure to disconnect the power cord holding the plug.
-
Page 5: Table Of Contents
English Table of contents Intended use ............................15 Scope of delivery ..........................15 Features and functions ........................15 Physical descriptions .......................... 16 Maintenance and cleaning ........................17 5.1 Maintenance ..........................17 5.2 Cleaning ............................17 Disposal ..............................17 Technical data ............................18... -
Page 6: Intended Use
English 1. Intended use This converter attends to convert a Composite- and S-Video signal into a VGA signal. You have the possibility to use a recorder or camera (B/W and color cameras) with a composite output together with a monitor that has a VGA input. -
Page 7: Physical Descriptions
English 4. Physical descriptions VGA Input for BNC input of PC / Recorder camera or recorder S-Video Input of recorder or camera VGA output of monitor Spannungs- versorgung Funktionstasten Power supply Function keys Description of the connectors: VGA Output Output of the converted signal into VGA VGA input Recorder or PC signal input S-Video input... -
Page 8: Maintenance And Cleaning
English Resolution / - By pressing this button you can choose the resolution. By pressing this button several times you can switch between the different resolutions. You can choose between following resolutions: 800x600 Pixel @ 60Hz 800x600 Pixel @ 75 Hz 1024x768 Pixel @ 60 Hz 1280x1024 Pixel @ 60 Hz Many monitors have an automatic adjusting function therefore it... -
Page 9: Technical Data
English 7. Technical data Typenumber TVAC20000 Inputs 1x BNC (FBAS, 1 Vpp), 1x S-Video, 1x VGA Outputs 1x VGA Resolution 800x600 Pixel @ 60Hz 800x600 Pixel @ 75 Hz 1024x768 Pixel @ 60 Hz 1280x1024 Pixel @ 60 Hz Video system...
