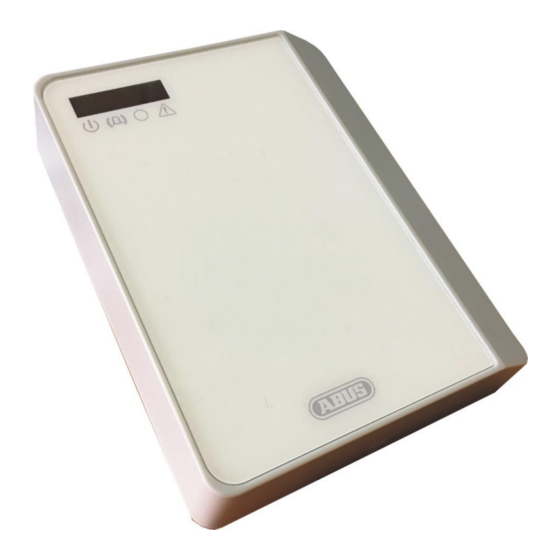

- Page 1 AZWG10200 ABUS PSTN/IP converter Version 1.8.6.6 AZWG10200...
-
Page 2: Preface
European regulations. Conformity has been verified, and the CE Declaration of Conformity is available from the manufacturer on request (www.abus-sc.com). To guarantee safe operation, it is essential that you observe these installation instructions. -
Page 3: Table Of Contents
Connecting the AZWG10200-PSTN/IP CONVERTER ............15 AZWG10200-PSTN/IP CONVERTER password ..............17 Loading a configuration ......................17 Importing a configuration from the AZWG10200-PSTN/IP CONVERTER ......18 Saving a configuration on the PC/laptop ................18 Saving a configuration on the AZWG10200-PSTN/IP CONVERTER ........19 Changing a configuration ....................19 'Modules' tab ........................20... - Page 4 Alarm lines (eight monitored analogue inputs) ............25 AUX lines (two digital inputs, high/low) ..............26 Test notifications (test and poll notifications) ............27 AZWG10200-PSTN/IP CONVERTER system ............28 Outputs ..........................29 Diagnosis ..........................30 Diagnosis > Modules ......................31 GSM ......................32 Clock ......................32 Ethernet/LAN ....................32 Converter analogue port ..................33 Diagnosis >...
-
Page 5: Introduction
If you have any questions, please contact your specialist dealer. Further general information and information on product support can be found at www.abus.com on the general page or for dealers and installers, in the Partner portal. -
Page 6: Safety Information
Safety information Explanation of symbols The following symbols are used in this manual and on the device: Symbol Signal Meaning word Danger Indicates a risk of injury or health hazards. Danger Indicates a risk of injury or health hazards caused by electrical voltage. -
Page 7: General Information
Power supply The AZWG10200-PSTN/IP CONVERTER is suitable for supply voltages from 10 to 28 V DC. It uses 70 mA when idle at 12 V DC, 85 mA when communicating via LAN and 170 mA when communicating via GPRS. - Page 8 The AZWG10200-PSTN/IP CONVERTER can be set for all methods and is tested according to the highest SP and DP versions...
-
Page 9: Redundant Transmission
For redundant transmissions, the LAN connection is usually set as the primary path and the GPRS module as the redundant path. The GPRS module can also be set as the primary path in the AZWG10200-PSTN/IP CONVERTER. If the primary path experiences a fault, the redundant path automatically takes over the monitoring times of the primary path. -
Page 10: Installation
Installation The AZWG10200-PSTN/IP CONVERTER comes in a plastic housing. Open the housing by loosening the screw on the bottom and then lifting the cover. There are four installation holes on the back of the housing, which can be accessed as soon as the printed circuit board (PCB) has been unscrewed. -
Page 11: Motherboard Connections
Motherboard connections Ethernet: standard RJ45 CAT5-E connection. Plug the supplied RJ45 cable into the Ethernet port on the AZWG10200-PSTN/IP CONVERTER and connect it to the DSL modem/router. An internet connection must be available on the modem/router. GSM antenna: connect the supplied adhesive-mounted antenna to the SMA GSM antenna connection on the AZWG10200-PSTN/IP CONVERTER. -
Page 12: Signal Lines
The telephone number and ID number must be set in the alarm system; see chapter 'Param-It+ programming'. SIM card The SIM card must support GPRS (2G) IP data transmission. For redundant use, 1 MB per month is sufficient. The AZWG10200-PSTN/IP CONVERTER supports multi-roaming SIM cards. -
Page 13: Led Displays
Yellow R (2) FLASHING briefly ON – long OFF: Ethernet/LAN fault FLASHING long ON – briefly OFF: GPRS/GSM fault Continuously illuminated: Ethernet/LAN and GPRS/GSM fault Programming with ParamIt+ All parameters for the AZWG10200-PSTN/IP CONVERTER can be configured using the ParamIt+ software. ParamIt+... -
Page 15: Connecting The Azwg10200-Pstn/Ip Converter
USB cable or use the 'Remote access' option to connect. The external IP address can be entered for remote access to the AZWG10200- PSTN/IP CONVERTER. Remote access progress is displayed on the right-hand side: ParamIt+ automatically detects the AZWG10200-PSTN/IP CONVERTER and opens the start screen. -
Page 17: Azwg10200-Pstn/Ip Converter Password
AZWG10200-PSTN/IP CONVERTER password If password protection is enabled on the AZWG10200-PSTN/IP CONVERTER, the login window opens: If you do not know the password, the device can be reset using the 'Factory setting' key. ATTENTION! All programming data will be deleted when... -
Page 18: Importing A Configuration From The Azwg10200-Pstn/Ip Converter
Importing a configuration from the AZWG10200-PSTN/IP CONVERTER The configuration saved on the AZWG10200-PSTN/IP CONVERTER can easily be imported using the 'Receive' key. Press OK. Press OK again to confirm. Saving a configuration on the PC/laptop The newly created or changed programming can be saved by pressing the key with the diskette icon on it. -
Page 19: Saving A Configuration On The Azwg10200-Pstn/Ip Converter
AZWG10200-PSTN/IP CONVERTER by pressing the 'Send' key. Press OK. Press OK. Changing a configuration The configuration of the AZWG10200-PSTN/IP CONVERTER is ideally changed by working through the tabs from left to right. Many settings are configured by default. -
Page 20: Modules' Tab
Obtain IP address automatically (DHCP) this option ticked, AZWG10200-PSTN/IP CONVERTER automatically obtains the network settings via DHCP Ethernet/LAN Enter the desired data for a fixed IP address, gateway and subnet mask. (If these fields are greyed out, the tick mark for 'Obtain IP address automatically (DHCP)' must be removed.) - Page 21 does not work or stops working and no connection can be established, the data can be obtained via DHCP after several failed attempts to connect using the entered data.
-
Page 22: Transmission' Tab
The communication options, the data of the IP receiver at the monitoring station and the notification order are set in the 'Transmission' tab. The AZWG10200-PSTN/IP CONVERTER provides a free choice between using the primary path or opting for redundant transmission. Up to eight different combinations of communication and receiver options can be set. - Page 23 Ethernet UDP or TCP. The choice of UDP or TCP should match the setting of the monitoring station receiver. GPRS UDP or TCP. The choice of UDP or TCP should match the setting of the monitoring station receiver. Target type: transmission method. Currently only IP address is possible.
-
Page 24: Encryption' Tab
PSTN converter in sequence 1. This is normally first the primary path and then the redundant path. The test, dialler and AZWG10200-PSTN/IP CONVERTER notifications can be set up using the setting sequence for a receiver. -
Page 25: Alarm Lines (Eight Monitored Analogue Inputs)
Alarm lines (eight monitored analogue inputs) The AZWG10200-PSTN/IP CONVERTER has eight analogue inputs that are freely configurable for EN 54-21 fire and fault notifications or multiple breaking and entering and technical notifications. The following settings can be configured for each input: ... -
Page 26: Aux Lines (Two Digital Inputs, High/Low)
AUX lines (two digital inputs, high/low) The two digital inputs of the AZWG10200-PSTN/IP CONVERTER can be used for the tamper contact, for example. wiring, input type; the following options are available in the menu: Not active: input is switched off... -
Page 27: Test Notifications (Test And Poll Notifications)
Test notifications (test and poll notifications) The AZWG10200-PSTN/IP CONVERTER has eight internal timers that are used to monitor the connection paths via automatic test, poll and interval- based notifications. The timers are easy to configure using pre-settings in line with the EN risk classes. Poll notifications are used when the interval is short. -
Page 28: Azwg10200-Pstn/Ip Converter System
CONVERTER, system, date/time and the next test notification are displayed on the right-hand side.] AZWG10200-PSTN/IP CONVERTER system The system and transmission notifications can be set in this tab. The cover switch is not used for the AZWG10200-PSTN/IP CONVERTER PCB. Line: ... -
Page 29: Outputs
A to Z, 0 to 9 and do not use bookmarks or international characters. System setting: Bypass area: the AZWG10200-PSTN/IP CONVERTER provides the option of blocking notifications from this area. Outputs The AZWG10200-PSTN/IP CONVERTER is equipped with two relay outputs. -
Page 30: Diagnosis
OUT2/relay 2 The relay settings can be configured in this tab. Relay 1 is mostly used for transmission errors. If the AZWG10200-PSTN/IP CONVERTER has still not received any acknowledgement after the third transmission attempt, this relay is enabled. As soon as an acknowledgement is received, the relay is reset. -
Page 31: Diagnosis > Modules
Diagnosis > Modules... -
Page 32: Gsm
Serial number of the GSM module ICCID SIM identification number Number GSM call number, if not blocked Provider Provider through which the AZWG10200-PSTN/IP CONVERTER has established a connection, if not blocked Consumption Display of sent and received bytes from today and yesterday Clock Status of date and time synchronisation. -
Page 33: Converter Analogue Port
'Diagnosis' tab. cover switch status used with AZWG10200-PSTN/IP CONVERTER. Monitored lines on the motherboard: Eight alarm inputs A1–A8 of the ZWG10200- PSTN/IP CONVERTER motherboard Digital lines on the motherboard Two AUX inputs D1, D2 of the AZWG10200- PSTN/IP CONVERTER motherboard... -
Page 34: Diagnosis > Outputs
Key: Green: input in 'Reset' state Orange: in delay time Red: active for alarm or fault Yellow: tampering (on double resistance monitored inputs) Black: unknown, not configured Grey: input is disabled Diagnosis > Outputs The status of the relays can be read out using the 'Outputs' sub-tab of the 'Diagnosis' tab. -
Page 35: Diagnosis > System
The event log can be read out using the 'System' sub-tab of the 'Diagnosis' tab. The event log is divided into: transmission and system. Done Green, AZWG10200-PSTN/IP CONVERTER is ready for operation Red, AZWG10200-PSTN/IP CONVERTER is not (yet) ready (restart) - Page 36 The event log is imported up until the last restart or max. 250 index lines. The next notifications are loaded by scrolling down and double-clicking the ↓ cursor or 'PgDn' when the last notification is reached. If new notifications occur while connecting to the event log, these are displayed behind the 'Refresh' key.
-
Page 37: Upgrade
Upgrade The firmware of the AZWG10200-PSTN/IP CONVERTER can be easily upgraded using the 'Upgrade' tab. Select the desired upgrade on the left-hand side. Detailed information on the upgrade is displayed on the right-hand side. If the upgrade matches the variant of the AZWG10200-PSTN/IP CONVERTER, the 'Start upgrade' key becomes active. -
Page 38: Technical Data
Technical data PSTN/IP Converter Product name AZWG10200 Article number Manufacturer ABUS Security-Center GmbH & Co. KG -25 °C to +60 °C Operating temperature 150 x 190 x 64 mm Dimensions (LxWxH) 0,338 Kg Weight Closed-circuit current Power consumption 70 mA Max. -
Page 39: Warranty
Declaration of conformity ABUS Security-Center GmbH & Co. KG hereby declares that the device with item number AZWG10200 complies with the essential requirements and other relevant provisions of Directives 2011/65/EC, 2014/30/EC. The declaration of conformity can be obtained from the following address: ABUS Security-Center GmbH &... -
Page 40: Notes
