Resolution RE108 Quick Start Manual page 2

Operation
8 Hardwire 4.7K-ohm Zones – transmit 8 unique wireless IDs:
•
Alarm, when device sees open circuit.
Tamper, when device sees short circuit.
Supervisories, every hour for each zone.
Translator Main Zone wireless transmission (9
•
Tamper, when cover opened.
Low battery, when either low AA batteries, OR loss of 12V DC external.
Supervisory every hour.
LED Operation
•
Green LED: On if AC power present.
Red LED: When 12V DC is present: "Blinks" on transmit to panel;
"on" if device tamper or device low battery.
Specifications
GE Device Type: Same as Std DWS
Transmitter Type: Talks to SAW and Crystal receivers.
Zone sensing duration: State sensed if held more than 600ms.
End-of-line Resistors: 4.7k-ohm, 5%.
Max wire run: 1000 feet.
Backup batteries: Two AA Alkaline.
External supply: 8.5 to 13 VDC or 6-9 VAC
Standard: Resolution RE012: 12VDC, 50mA.
Optional: GE 60-898-ITI, for securing screw
Wire connection polarity DOESN'T matter!
Current draw with supply: 4mA, normal operation.
PIR usage: PIR may need tight voltage tolerance. Add PIR and
device current requirements together to get total
current need.
AC Fail Indication: Translator ID sends Low Battery signal if its external
12V is gone for 15 minutes. Restores on external 12V
restore.
AA Low Battery Conditions:
tamper, external 12V restore.
AA Battery Life on AC Fail:
Housing dimensions: 4x6x1 inches
Specifications subject to change without notice.

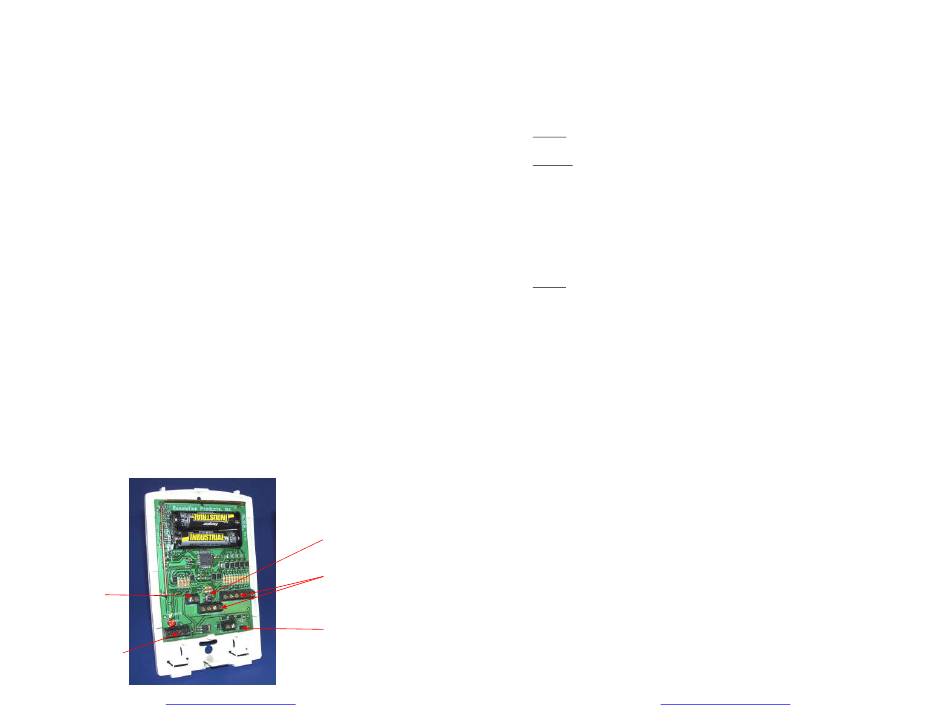

Internal Picture
Terminals for Zone 3
Terminals for Zones 1, 2
RE108_Hardwire_to_GE-Compat_Translator
Page 3 of 4 24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
th unique ID):
(all 8 zone ID's and device ID)
Low battery for 1 minute. Restores on device
3-5 years, when monitoring contacts.
Tamper / Enroll Switch
Terminals for Zones 4-8
Power Terminals
15-Oct-14
Notices
"GE", "Honeywell", and "DSC" are trademarks owned by General Electric Company, Honeywell
International Inc., and Tyco Safety Products Canada LTD, respectively.
Resolution Products, Inc. products will function with one of either GE, DSC or Honeywell systems.
However, no Resolution product is produced by, endorsed by, nor is officially associated with GE,
Honeywell or DSC. Resolution recommends verifying operation at installation.
Do not use Translator for life safety devices, such as smoke or CO sensors.
Warranty
Resolution Products, Inc. will replace products that are defective in their first five (5) years.
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference that may be received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by Resolution Products, Inc. could void the
user's authority to operate this equipment.
FCC ID: U5X-RE108
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1)This device may not cause interference, and
(2)This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et
(2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
IC: 8310A-RE108
