2K Swirl Nozzle Attachments
1. Description

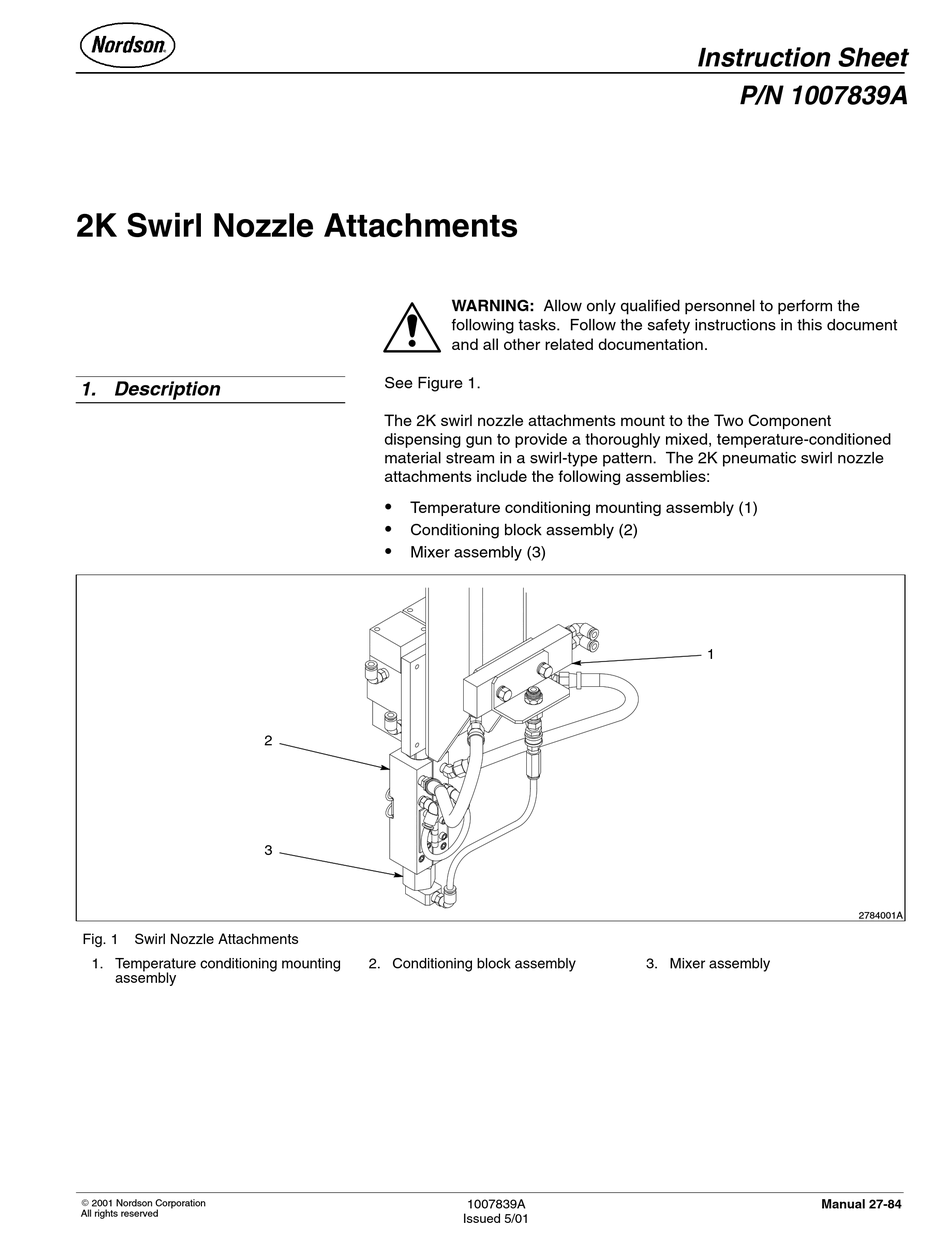

Fig. 1
Swirl Nozzle Attachments
1. Temperature conditioning mounting
assembly
E 2001 Nordson Corporation
All rights reserved
See Figure 1.
The 2K swirl nozzle attachments mount to the Two Component
dispensing gun to provide a thoroughly mixed, temperature-conditioned
material stream in a swirl-type pattern. The 2K pneumatic swirl nozzle
attachments include the following assemblies:
S
Temperature conditioning mounting assembly (1)
S
Conditioning block assembly (2)
S
Mixer assembly (3)
2
3
2. Conditioning block assembly
WARNING: Allow only qualified personnel to perform the
following tasks. Follow the safety instructions in this document
and all other related documentation.
1007839A
Issued 5/01
Instruction Sheet
P/N 1007839A
1
3. Mixer assembly
Manual 27-84
2784001A
Advertisement
Related Manuals for Nordson 1007839A
Summary of Contents for Nordson 1007839A
- Page 1 Temperature conditioning mounting assembly (1) Conditioning block assembly (2) Mixer assembly (3) 2784001A Fig. 1 Swirl Nozzle Attachments 1. Temperature conditioning mounting 2. Conditioning block assembly 3. Mixer assembly assembly E 2001 Nordson Corporation 1007839A Manual 27-84 All rights reserved Issued 5/01...
- Page 2 8. Attach the elbow (12) to the air nozzle collar (13). 9. Open the hinged conditioning blocks on the temperature conditioning mounting assembly (15) and attach them to the mixer tube housing. 10. Engage and close the toggle latch. E 2001 Nordson Corporation Manual 27-84 1007839A All rights reserved...
- Page 3 5. Washer 15. Conditioning block assembly 10. Water hose fittings Note: Illustration shows a typical installation. Items 1 and 3 through 6 will vary according to the applications. E 2001 Nordson Corporation 1007839A Manual 27-84 All rights reserved Issued 5/01...
- Page 4 NOTE: See Figure 3. Air for the mixer assembly is provided and controlled by a proportional valve. For more information, refer to the (contd) manufacturer’s proportional valve documentation in the Nordson service package for information on setting adjustments for your specific setup. Blow-Off Air...
-
Page 5: Maintenance
1. Check the hoses and tubing for leaks. See Figure 6. Keep air ports on the mixer assembly air nozzle adapter (3) clean and remove any overspray. E 2001 Nordson Corporation 1007839A Manual 27-84 All rights reserved Issued 5/01... -
Page 6: Troubleshooting
This section contains troubleshooting procedures. These procedures cover only the most common problems that you may encounter. If you cannot solve the problem with the information given here, contact your local Nordson representative for help. Problem Possible Cause Corrective Action... - Page 7 (6). 3. Install the air nozzle collar. 4. Install the retaining ring (7). 5. Thread the assembly to the bottom of the mixer tube housing (1). E 2001 Nordson Corporation 1007839A Manual 27-84 All rights reserved Issued 5/01...
- Page 8 2K Swirl Nozzle Attachments To order parts, call the Nordson Customer Service Center or your local 6. Parts Nordson representative. See Figure 4. Temperature Conditioning Mounting Assembly Item Part Description Quantity Note — 1005731 Assembly, mounting, temperature conditioning, 2K swirl, supply air S Insulator, Haysite, 1.50 x 2.75 x 0.125 in.
- Page 9 2K Swirl Nozzle Attachments Temperature Conditioning Mounting Assembly (contd) 2784004A Fig. 4 Temperature Conditioning Mounting Assembly E 2001 Nordson Corporation 1007839A Manual 27-84 All rights reserved Issued 5/01...
- Page 10 S Connector, 45D hose, 1005938 -20 x NPT, brass S Adhesive, pipe/thread hydraulic sealant 900481 S Adhesive, threadlocking 900464 AR: As Required NS: Not Shown 2784003A Fig. 5 Conditioning Block Assembly E 2001 Nordson Corporation Manual 27-84 1007839A All rights reserved Issued 5/01...
- Page 11 S Ring, retaining, external, heavy duty, 62 1005604 S Lubricant, Never Seez, 8 oz can 900344 S Lubricant, Mobil SHC 634 156289 AR: As Required NS: Not Shown 2784002A Fig. 6 Mixer Assembly E 2001 Nordson Corporation 1007839A Manual 27-84 All rights reserved Issued 5/01...
- Page 12 2K Swirl Nozzle Attachments Original copyright date 2001. Nordson and the Nordson logo are registered trademarks of Nordson Corporation. Haysite is a registered trademark of Snythane-Taylor Corporation. Mobil SHC is a registered trademark of Mobil Oil Corporation. Never Seez is a registered trademark of Bostik Findley Inc.
