ENGLISH

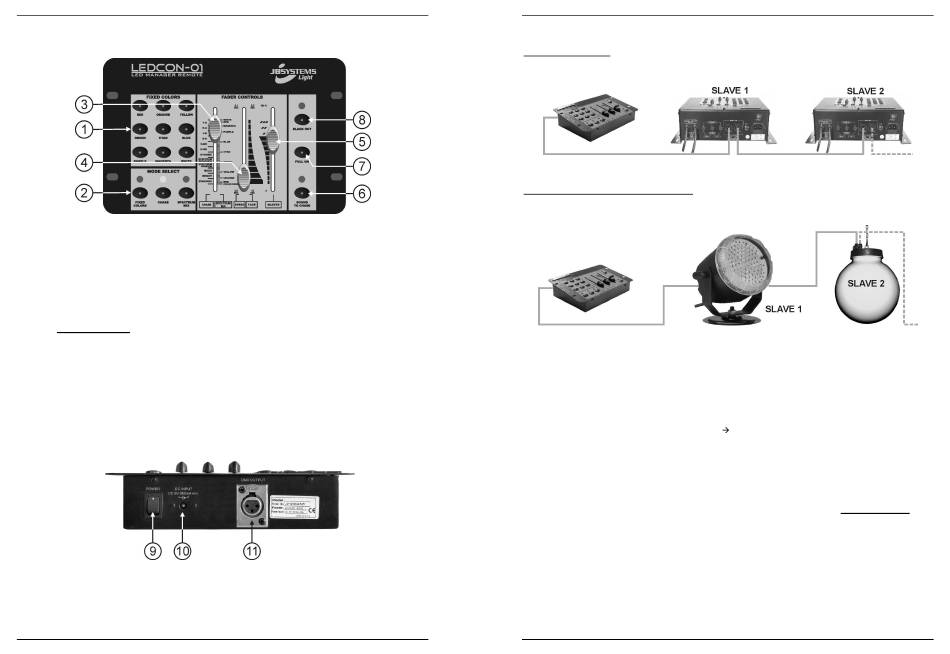

FUNCTIONS (FRONT)
1. FIXED COLOR BUTTONS: 9 buttons each with a preset color.
2. MODE SELECT BUTTONS: 3 buttons used to set the controller in different working modes:
• FIXED COLORS: select this mode if you want to use the "fixed color" buttons (1).
• CHASE MODE: select this mode if you want to select one of the 12 color chases using the
"chase/color" fader (3).
• SPECTRUM MIX: select this mode if you want to select one of the 32 different colors using the
"chase/color" fader (3).
3. CHASE/COLOR FADER: used to select one of the available color chases:
• Left side of the fader indicates the different chases.
• Right side of the fader indicates the different colors.
Important remark: There's also a function called "color fade" which is very nice for "background
lighting" applications. Select this function to fade gently from one color to another. You can adjust
the fade-over time with the color-fade fader(4).
4. SPEED/FADE FADER: used to select the chase speed or color fade time:
• Left side of the fader indicates the chase speed, ranging from 2,5s to 0,1s.
• Right side of the fader indicates the color fade time, ranging from 12s to 2,5s.
5. MASTER FADER: used to control the overall dimming of the LEDs and overall strobe speed.
6. SOUND BUTTON: used to toggle the chase mode between sound and static mode.
7. FULL ON BUTTON: used to set the 3 colors (R+G+B) at maximum level.
8. BLACKOUT BUTTON: used to set the 3 colors (R+G+B) at zero level.
FUNCTIONS (REAR)
9. POWER SWITCH: Used to switch the unit ON/OFF
10. DC INPUT: connect the supplied AC/DC adapter to this input. If you should use another adapter, please
make sure that it has 9Vdc and minimum 300mA with + in the center.
11. DMX OUTPUT: Sends DMX-signals to the connected units.
JB SYSTEMS®
OPERATION MANUAL
3/20 LEDCON-01 remote
ENGLISH
CONNECTIONS
With LED MANAGER:
• You need to "daisy chain" the DMX in/outputs of 1 or more LED-Managers with the DMX-output of the
LEDCON-01 remote using a good quality balanced cable (ex. JB Systems ref. 7-0063).
• The LEDCON-01 remote will be used to control all connected slaves. The LED Managers are automatically
switched as slaves (slave LED is lit). The controls on the slave units are disabled.
With LED BALL and/or LED SPOT/WASH :
• You need to "daisy chain" the DMX in/outputs of 1 or more LED BALL and/or LED SPOT/WASH projectors
with the DMX-output of the LEDCON-01 remote using a good quality balanced cable (ex. JB Systems ref.
7-0063).
• In order to work perfectly all connected LED projectors must have DMX address 001. To set all projectors
to DMX address 001, do the following: push the "auto DMX address" button on all projectors. First press
the button on slave1, than slave2, than3, etc.
Remark: All connected LED projectors will respond equaly (all will have the same colour) If you like, you can
also put 1 or more LED MANAGER(s) in the DMX-chain.

SPECIFICATIONS

Power Input: DC 9V 300mA minimum.
AC/DC Power adapter: AC 240V, 50Hz
DMX output: 3pin XLR
Audio input: None, internal microphone
Size: 21,0 x 14,0 x 4,6cm
Weight: 930 grams
Every information is subject to change without prior notice
You can download the latest version of this user manual on our website: www.beglec.com
JB SYSTEMS®
OPERATION MANUAL
9Vdc / 300mA (or more)
