Future Design VR18 Quick Start Manual

Rs232 485 modbus communication module

Hide thumbs Also See for VR18:

Procedure of Installing VR18 RS232/485 Modbus Communication Module

Communication Module Part Number is CM181

1. Turn off the power, disconnect all power & communication cords and remove I/O cards

located in the rear slots.

2. If it is panel-mount style, remove the mounting clamp. If it is bench top/portable style,

remove the handle, two ears and two feet as described below; figure references may be

found in the VR18 Manual.

a. The handle: Remove it in a reverse way as Figure 2-11, 2-10 & 2-9.

b. Two ears: Remove them by pulling toward the backside.

c. Two feet: Remove them in a reverse way as Figure 2-14, 2-13 & 2-12.

3. Remove six screws in the back, then take off the metal housing

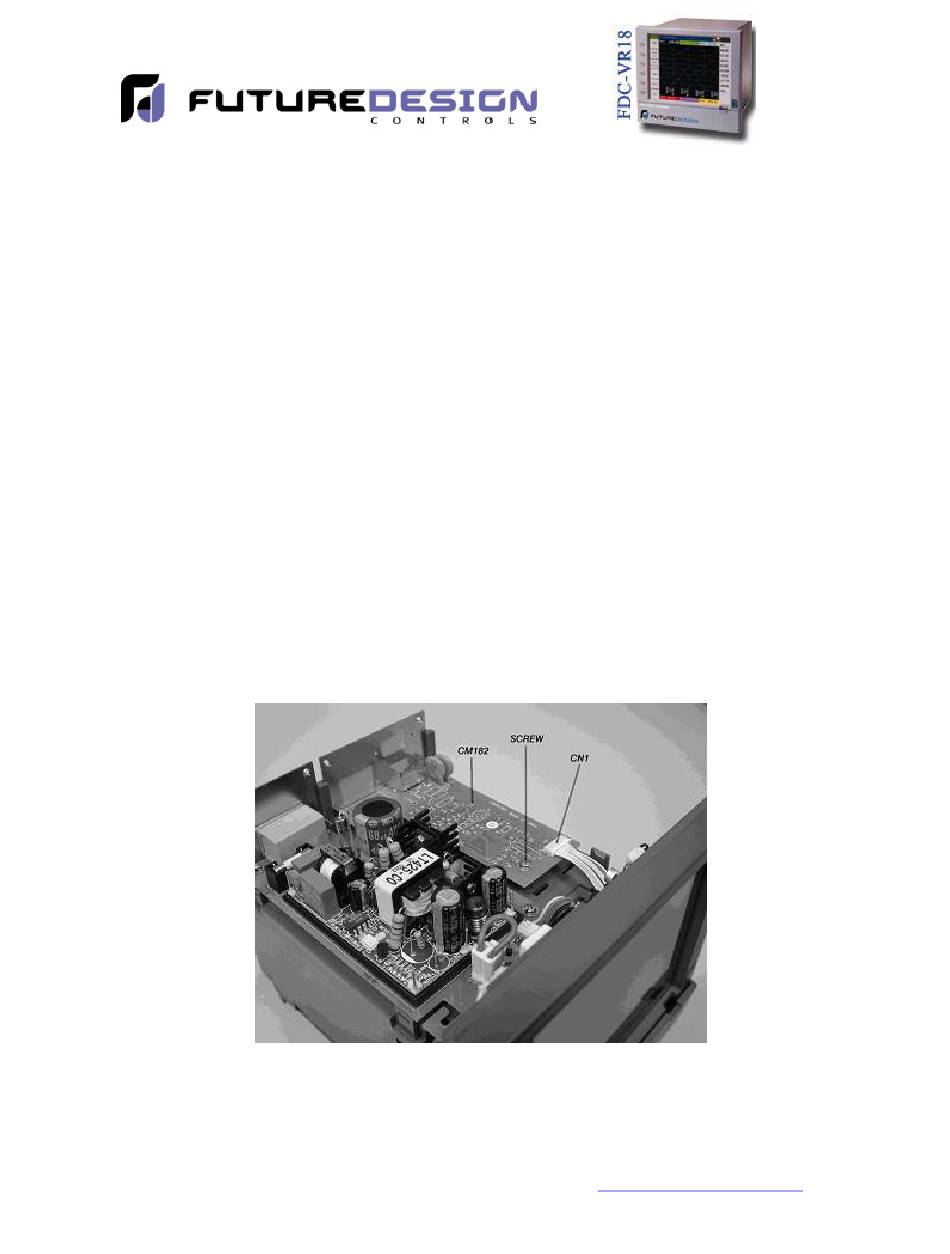

4. Carefully discount cable of CN1 located on the CM182 Ethernet Interface Module, and

then remove the screw

VR18-Install RS232-485 Comms Module.doc

P.O. Box 1196 / Bridgeview, IL 60455

888.751.5444 / 888.307.8014 fax

Technical Support: 866.342.5332

http://www.futuredesigncontrls.com
