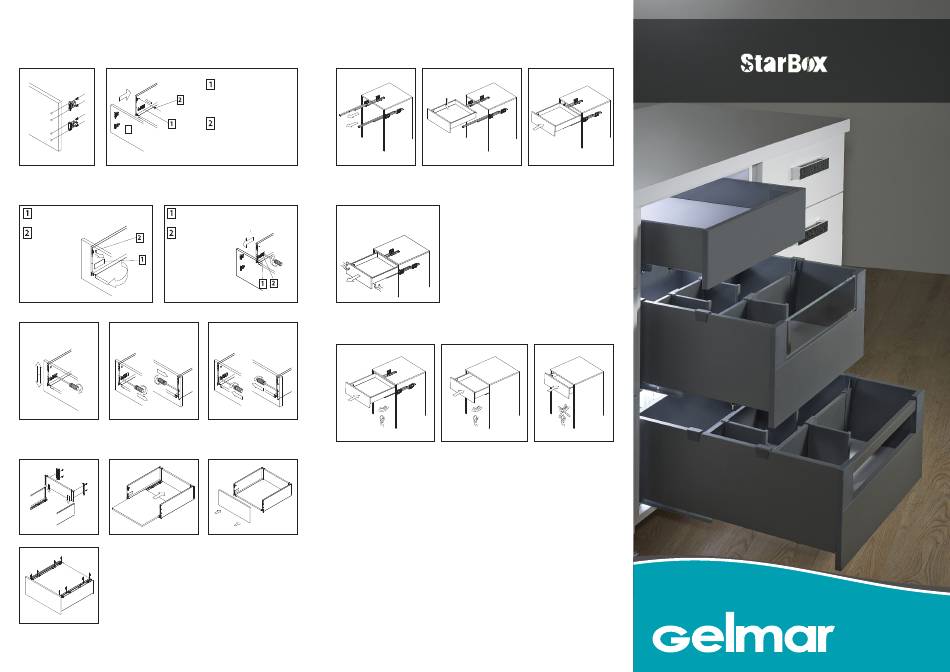

Gelmar StarBox Slimline Installation Manual

Assembly & Installation of StarBox

Mounting Front Fixing Brackets

Removing Front Panel

Take off the plastic cover Take off the plastic cover
Take out the Take out the
upper pin upper pin
Front panel height Front panel
adjustment: ±2mm side adjustment: 1mm right

Mounting the drawer

Installing the drawer

Tighten the
fixing screw after
installing the panel.
Press the upper pin
into the panel after
you installing the
panel.

Removing the drawer

Push the metal spring away from
the panel and pull out

Function of the damper

Front panel
side adjustment: 1mm left
DIY Installation Guide
Slimline
(The system does not include the drawer back & base)
