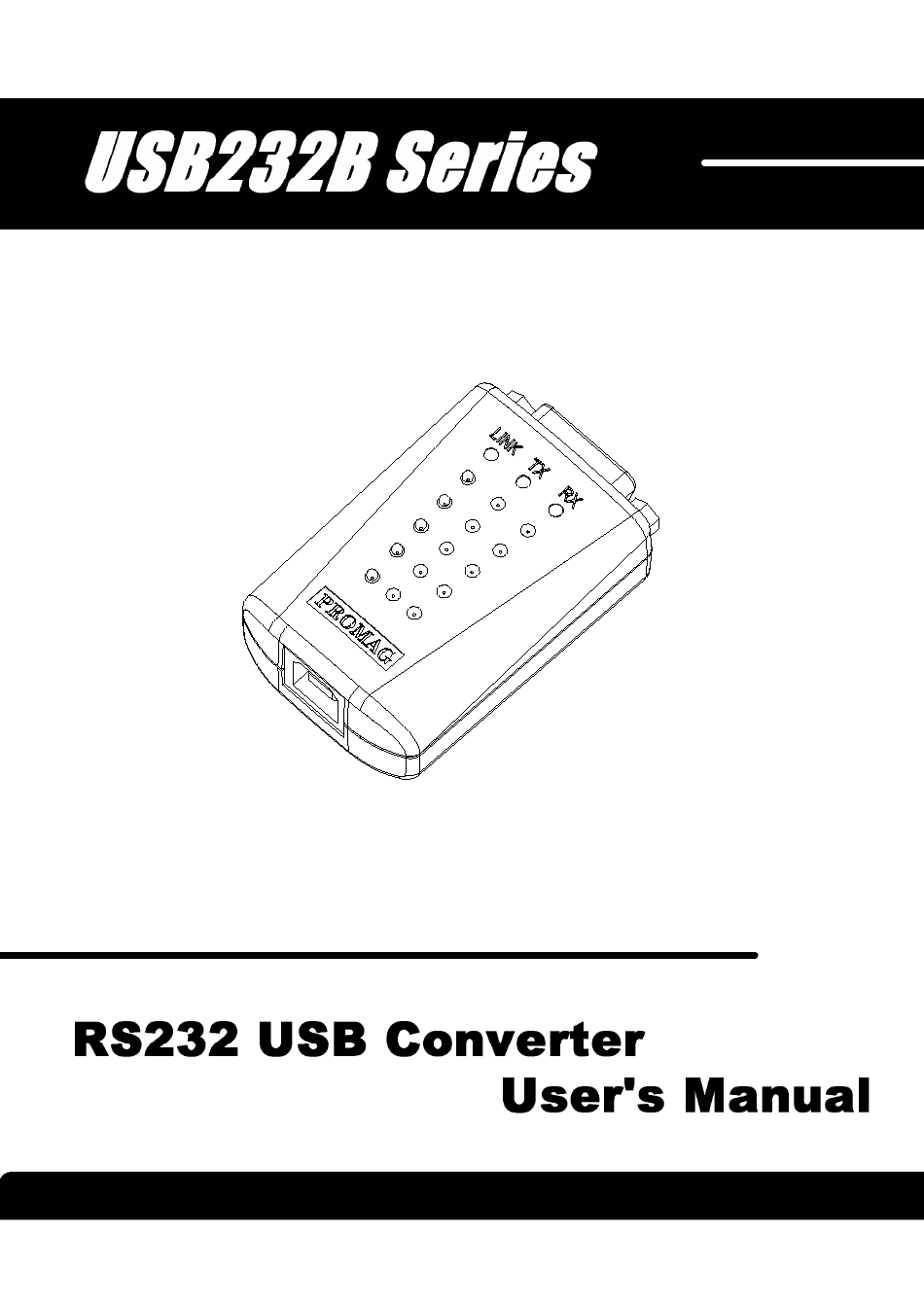

- Page 1 TM951136...
- Page 2 Using the USB232B serial Port Smart Interface Converter Want to connect your terminals or devices with serial port connection to your PC but don't have a 25-pin serial port connection? This USB232B converter will get you hooked. Using this converter for your unit, it provides a single serial port for connecting to any peripheral with serial interfaces such as barcode readers, mag-stripe readers, time recorders and access control systems, etc.
-
Page 3: Table Of Contents
Information ..............1 Installation ............... Remove Driver Software ........Technical And Operational Description ...... Connections ............... Specifications ............................. Note FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Information
Information USB-232B Converter MACHINE TYPE FUNCTION USB Ver 2.0 Multiple Port RS232 STATUS USB-232B - 1 -... - Page 5 Standard Package Main Unit ( USB232B-00 ) Driver Disk and User manual ( DISK5277 ) USB Cable ( WAS-1487 ) - 2 -...
-
Page 6: Installation
Installation Driver Software Installation - 1.First connect the USB232B converter into your PC’s USB port. 2.Insert the USB232B driver software coded at DISK5277 set up CD into the CD-ROM drive of your computer .The setup program will begin to run automatically . 3.Then first time you use the Disk5277 , you will need to install the said disk by twice operations. - Page 7 3. Windows has finished installing the software Finish driver software installation Click finish 4. What do you want Windows to do ? Select this Click Next - 4 -...
- Page 8 5. Select Searching locations for new driver Select this Click Next 6. Windows has finished installing the software - 5 -...
- Page 9 7. Make sure the driver software installation is finished Connect USB232B unit into the USB port of the computer and then Click " Start " ->" Settings " -> " Control Panel " -> " System " ->" Device Manager "...
-
Page 10: Remove Driver Software
Remove Driver Software How to remove USB232B Driver Software from your computer- Put DISK5277 into the CD-ROM disk drive of the computer and then find and execute FTDIUNIN.EXE by following the steps as below: 1. Execute FTDIUNIN.EXE program Execute FTDIUNIN.EXE program 2. -
Page 11: Technical And Operational Description
Technical And Operational Description Front Panel of USB232B-00 LINK RS232 Port USB Port RS232connector Connecting with the terminal device,which is equipped with RS232 interface. USB connector Connecting with the Computer USB port or Hub. LINK LINK LED turns on when the USB232B unit is ready for use. -
Page 12: Connections
Connection 1. Communication between TR550 time recorder RS-232 Device and USB Port WAS-1487 WAS-1436 USB PC USB232 TR550 2. Communication between TR510 time recorder RS-232 Device and USB Prot WAS-1487 WAS-1392 USB PC USB232 TR510 3. Communication between AC9400 access control RS-232 Device and USB Port WAS-1487 WAS-1436... -
Page 13: Specifications
Specifications USB Interface: USB 1.1 and USB 2.0 compatible. Hot swap function supported Drivers for Windows 2K/XP RS232 RS232 Interface : RS232 , Full , 8N1 , max 250K bps, 8KV ESD ± Power : No external power supply necessary; the USB232B derives its power from the USB port. -
Page 14: Note
Note 1. Do not disconnect the USB-xxx converter during running your application program to avoid any unexpected problem. 2. USB-xxx Driver software provides maximum 8 pcs of USB-xxx converters to be used for multiple device communication.The addresses of the multiple devices are according to the COM PORT addresses of the PC or the addresses of the HUB USB PORT where the devices are connected.You should insert the USBxxx into the...
