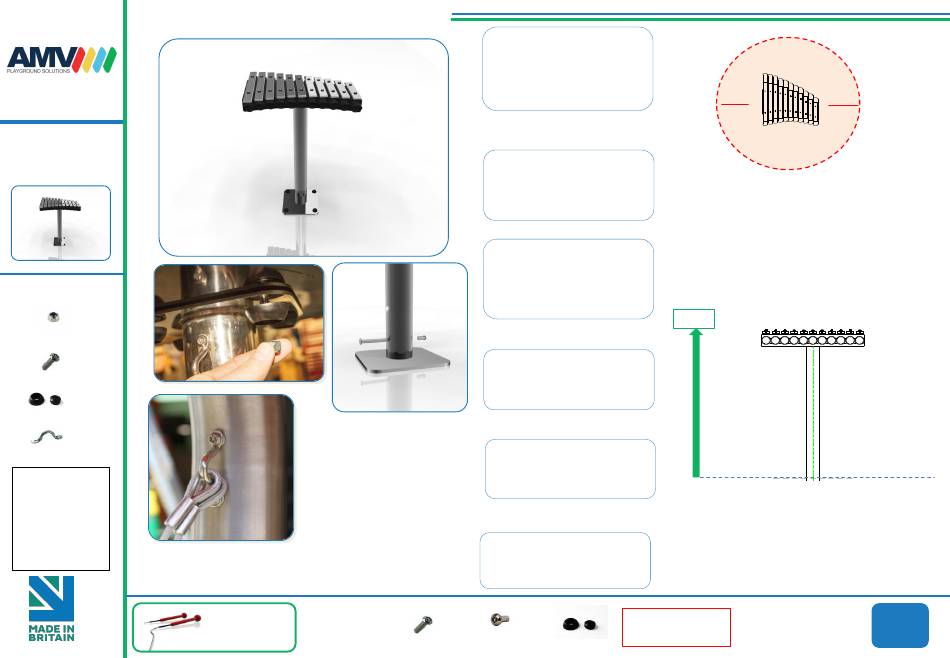

Installation Instructions
Surface Fixed
Cadenza
Page 1 of 3
Instrument
Components:
x4
M8 Nyloc Nut
x2
M6x20 Security Screw
x4
2 Part Cover
Cap
x1
M6 Saddle Strap
Metric
Conversion:
250mm/ 10"
300mm/ 12"
450mm/ 18"
700mm/ 28"
850mm/ 33"
1.5m/ 59"
BS EN 1176
(1.1)
(1.3)
Weight of heaviest part
7kg
(Cadenza)
Surface Fix
Pair Small Red
Beaters X1
Components:
1. Attach the steel legs to the
base of the instrument with
the M8 Nyloc Nuts and 2 part
security caps. (1.1) (See
Assembly Guide)
2. Attach Surface Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
3.Locate Plate in desired
location and mark holes to fix
(1.2)
to desired surface.
4. Fix to Surface using
recommended ground
anchors not supplied
5. Make sure all fixings are
covered and secure using
cover caps provided
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
x1
x1
M10x70 Security Screw
M10 Barrel Nut
2 Part Cover Cap
1.5m
KS1 – 700mm
KS2 – 850mm
KS1,2
Ground Anchors
x4
not supplied
Install Instrument
1.5m
with 1.5m free space
(from widest point)
around it.
Ground Surface
14 Kg
