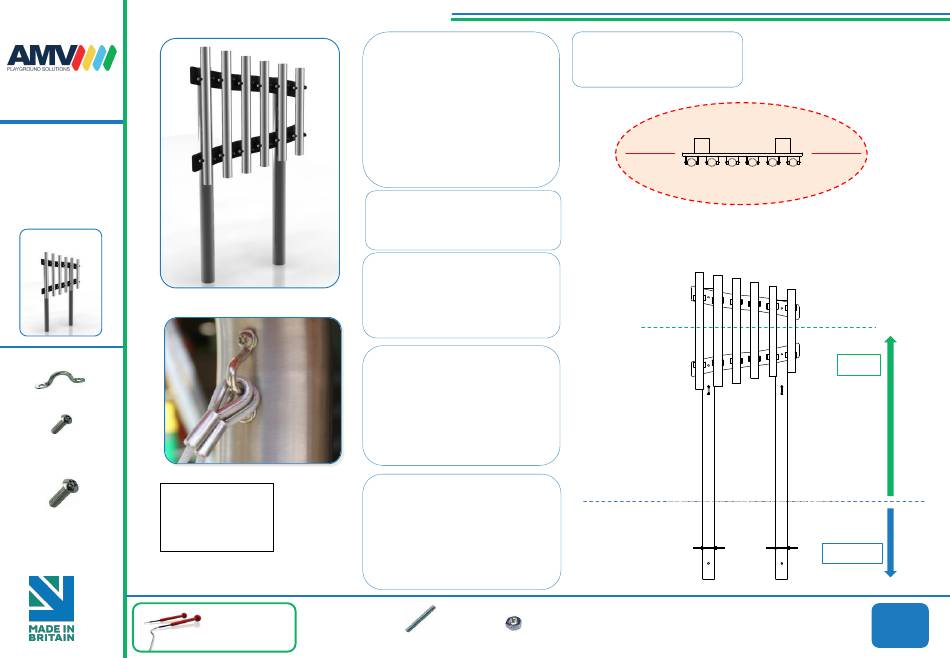

AMV Playground Solutions Soprano Pentatonic Freechimes Installation Instructions

Installation Instructions

Ground Fixed
Freechimes
Pentatonic 6 Notes/
Diatonic 8 Notes
Page 1 of 4
Components:
Eye Straps
X2
M6x20mm
Secure Screw
X4
Metric Conversion:
500mm/ 19 11/16"
M8x40mm
900mm/35 7/16"
Secure Screw
1100mm/ 43 5/16"
X4
1500mm/ 59 1/16"
Weight of heaviest part
BS EN 1176
1. Carefully lay 2 x legs on a level
surface and check distance
between legs is equal. Line up
pre drilled holes in the
backboards with the holes in legs
and ensure the instrument is
aligned square with the legs. Fix
in place using M8x40mm screws
supplied (see installation guide)
2. Attach Ground Fixings to base
of legs (See Ground Fix Post
Installation Sheet)
3.Excavate 2 holes on site of
installation minimum 500mm
deep ( adjust depth according to
age range for intended players)
4. Carefully raise the instrument
from the ground with legs
attached and locate (lower) legs
into holes making sure they are
vertical and level prior to
concreting in place. (See Ground
Fix Sheet)
5. Once happy with location and
levels, fill holes using rapid
hardening concrete. Be sure to
compact concrete around legs
and leave to dry according to
manufactures guidelines
8.35kg (Freechimes)
Ground Fix
Pair Small
Beaters X1
Components:
M10x200 Threaded Bar
6. Beaters can be fixed to
Steel posts with fixings
provided
Ground Surface
KS1 – 900mm
KS2 – 1100mm
x4
x8
M10 Nut
1.5m
Install Instrument
with 1.5m free space
(from widest point)
around it.
1.5m
KS1,2,
500mm
16 Kg
