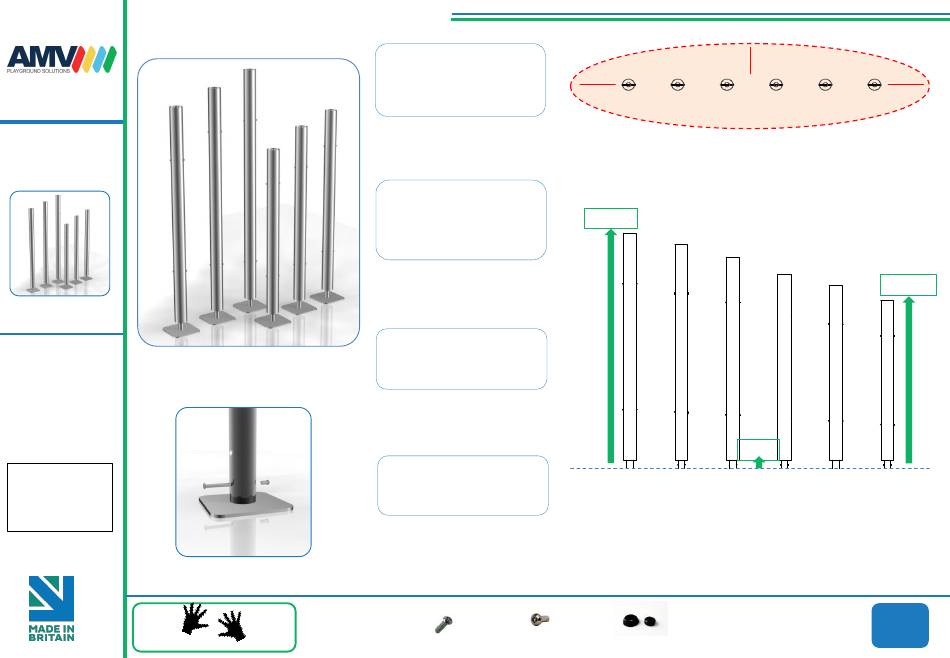

Installation Instructions
Surface Fixed
Emperor Chimes
Page 1 of 2
Instrument
Components:
Emperor
Chimes
are pre-
assembled
Metric Conversion:
100mm/ 4"
1.5m/ 59"
1785mm/ 70"
2490mm/ 98"
Weight of heaviest part
Played with hands
BS EN 1176
1. Attach Surface Fixing plates
to the base of each chime(1.1)
(See Surface Fix Plate
Installation Sheet)
2.Locate Chimes to desired
location and mark holes to fix
to desired surface.
4. Fix to Surface using
recommended ground
anchors not supplied
(1.1)
5. Make sure all fixings are
covered and secure using
cover caps provided
25kg
(XL Chime)
Surface Fix
Components:
M10x50 Security Screw
1.5m
2490mm
Ground
Surface
x6
x6
2 Part Cover Cap
M10 Barrel Nut
1.5m
100mm
x24
1.5m
Install Instrument
with 1.5m free space
(from widest point)
around it.
1785mm
117 Kg
Advertisement
Table of Contents
Related Manuals for AMV Playground Solutions Emperor Chimes
Summary of Contents for AMV Playground Solutions Emperor Chimes
-
Page 1: Installation Instructions
1.5m (See Surface Fix Plate Installation Sheet) Install Instrument Surface Fixed with 1.5m free space (from widest point) Emperor Chimes around it. Page 1 of 2 2.Locate Chimes to desired location and mark holes to fix 2490mm to desired surface. - Page 2 Surface Fix Plate Installation Tools: TX 45 Driver Bit Ground Fixed Emperor Chimes Page 2 of 2 (1.1) (1.1) Components: Thread Lock Solution Required (Not Supplied) M10 Barrel Nut M10x50 Security Screw Locate the Surface fix Fix instrument to Surface...
