d. Slide the Data Domain system all the way into the rack.
6. Determine whether your configuration and ongoing administration access for the Data Domain
system is to be through an Ethernet connection, a serial console, or a monitor and keyboard.
Then perform the appropriate substep.
- For an Ethernet connection, attach an Ethernet cable to one of the Ethernet interfaces, eth0
or eth1 on the back panel. See Figure 13 for Ethernet interface locations.
- For a serial console, attach an RS232 null modem cable to the serial port on the back
panel. See Figure 13. Use the console communication settings of: 9600 baud, 8 data bits,
no parity, 1 stop bit.
- For a monitor and keyboard, attach the monitor to the port video port and the keyboard to
the keyboard port. See Figure 13 for locations.

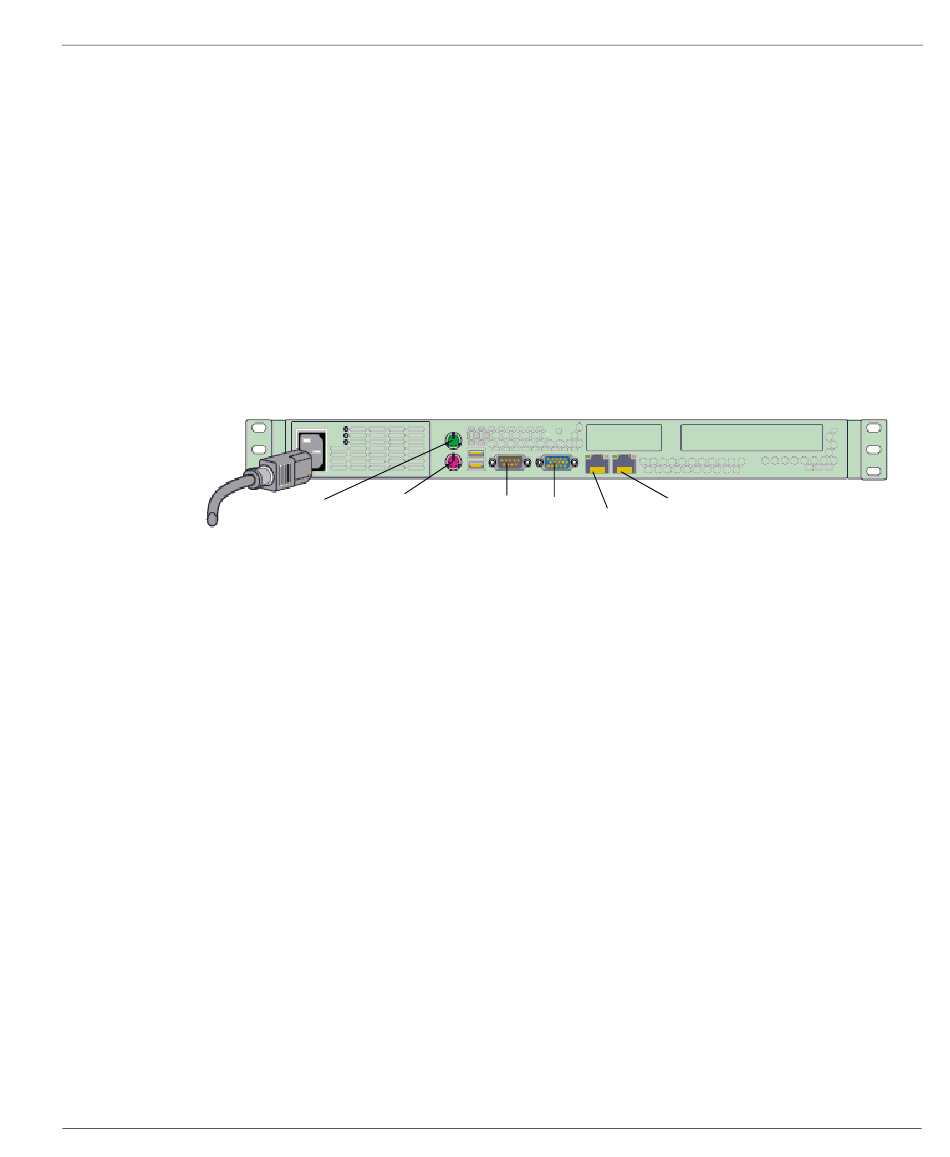

Figure 13: DD120 back panel
7. For backup and restore communications to and from the Data Domain system, attach at least
one Ethernet cable to an Ethernet port on the back panel. See Figure 13 for interface locations.
8. Attach the power cord to the power supply. See Figure 13 for the location.
9. Plug the power cord into the power source.
10. Push the power button to start the Data Domain system. See Figure 10 on page 39 for the
location of the power button.
After the Data Domain system starts, the power-on LED glows green. See Figure 10 on page 39 for
the location of the power-on LED.
DD120 Systems
Mouse Keyboard
Video
Serial
eth0
port
port
eth1
Installation
43
