USER MANUAL
EKKO EK-1 User Manual rev. 1.0.3
CONGRATULATIONS!
You are now the owner of an EKKO EK-1 delay pedal!

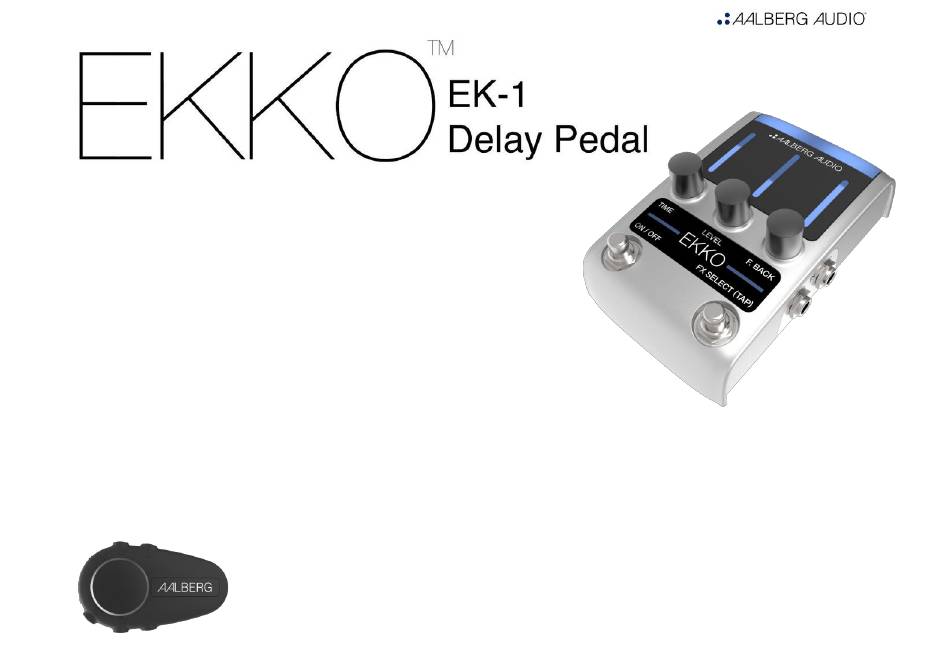

EKKO is a high-quality aluminum, standard semi-analog delay pedal with true bypass. Semi-analog
means that the direct signal from your guitar is always direct through, whether the pedal is in
TM
bypass mode or not. It can be controlled like a stand-alone effects pedal or using the AERO
AE-1
wireless controller (optional):
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EKKO EK-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Aalberg Audio EKKO EK-1

Summary of Contents for Aalberg Audio EKKO EK-1

  • Page 1 EKKO EK-1 User Manual rev. 1.0.3 CONGRATULATIONS! You are now the owner of an EKKO EK-1 delay pedal! EKKO is a high-quality aluminum, standard semi-analog delay pedal with true bypass. Semi-analog means that the direct signal from your guitar is always direct through, whether the pedal is in bypass mode or not.

  • Page 2: Getting Started

    GETTING STARTED To get your pedal up and running you need a standard 9V DC, 2.1 mm plug, center negative power supply (minimum 250 mA). You will find the connector at the back of your pedal. The pedal supports both mono and stereo connections. Combinations of these will lead to different properties in the output signal.
  • Page 3 OVERVIEW *Set active parameter for AERO AE-1 Wireless Controller...

  • Page 4: Specifications

    SPECIFICATIONS Power supply 9V DC, 2.1 mm plug (center negative) Current draw 250 mA Input impedance@1kHz ~1M Ohm Output impedance@1kHz < 1k Ohm Maximum input signal 3.22 Vp-p (2.28 Vrms) Delay time 0 ms – 2000 ms Sound Quality (sample-/bit rate) 48 kHz/24-bits Connectors - INPUT (mono/stereo)

  • Page 5: Software Update

    3. Download the app on your mobile device and launch the app. 4. The Aalberg Audio device set to update mode will now show up in a list in the AALBERG UPDATER, and you can check the current revision of the software found on the device.

  • Page 6: Wireless Control - Pairing

    WIRELESS CONTROL – PAIRING In order to control your Aalberg effects pedal using the AERO wireless controller (optional) you need to pair the devices. Below is a step-by-step guide: 1. Set your devices in pairing mode:  AERO: i. Turn off the AERO (slide switch set to ‘0’) ii.
  • Page 7 v. Repeat step i-iv for any additional Aalberg effects pedals 2. Confirm pairing: When you have repeated the above steps for all of your Aalberg pedals, you need to press and hold the rotary knob button for 3 seconds, then release button.

  • Page 8: Input/Output Setups

    INPUT/OUTPUT SETUPS The Aalberg EKKO EK-1 Delay Pedal offers the following mono/stereo configurations: 1. Mono in/Mono out 2. Ping-pong stereo 3. Dry/wet split 4. Dual mono 1. Mono in/Mono out Connect your instrument to Mono in and the amplifier to Mono out. 2.
  • Page 9 3. Dry/wet split Connecting your instrument to Stereo in will split the dry wet signal as follows:  Mono out: 100% wet signal  Stereo out: 100% dry signal 4. Dual mono This is useful if you want to maintain the stereo path for pedals in the signal chain. Connect the stereo outs from the previous pedal to both inputs on the EKKO (Mono in = left, Stereo in = right).

  • Page 10: Warranty

    DISCLAIMERS All use of our products is undertaken at your own risk and expense and Aalberg Audio cannot be held liable for any direct or indirect losses or cost incurred through use, default or malfunction of our products. Repair or replacement of defective units under our warranty provisions serve as the sole remedy in the unlikely event that our products does not comply with product specifications.
  • Page 11 If the product is altered or repaired by someone unauthorized by Aalberg Audio the warranty is no longer valid. Stores and distributors must always check products before sending them to Aalberg Audio for repairs. Please...
  • Page 12 Five years later, after lots of testing and prototyping we are proud to introduce the world’s first EKKO EK-1 Delay Pedal with the AERO AE-1 Wireless Controller. (Below you can see the different prototyping stages (from left to right): “The...

  • Page 13: About Aalberg Audio

    Aalberg Audio accept and follow these regulations and directives. ABOUT AALBERG AUDIO Aalberg Audio AS is located in Trondheim, Norway. We produce wireless guitar effects with accompanying hardware and software. Please don't hesitate to contact us if you have any...
  • Page 14 Trondheim NORWAY ™ and © 2015 Aalberg Audio AS. All rights reserved. The information in this manual is subject to changes without further notice.
