Aalberg Audio ROM RO-1 User Manual

Reverb pedal
Hide thumbs
Table of Contents

Advertisement

Quick Links

ROM
USER MANUAL
ROM RO-1 User Manual rev. 1.0.0, May 22
CONGRATULATIONS!

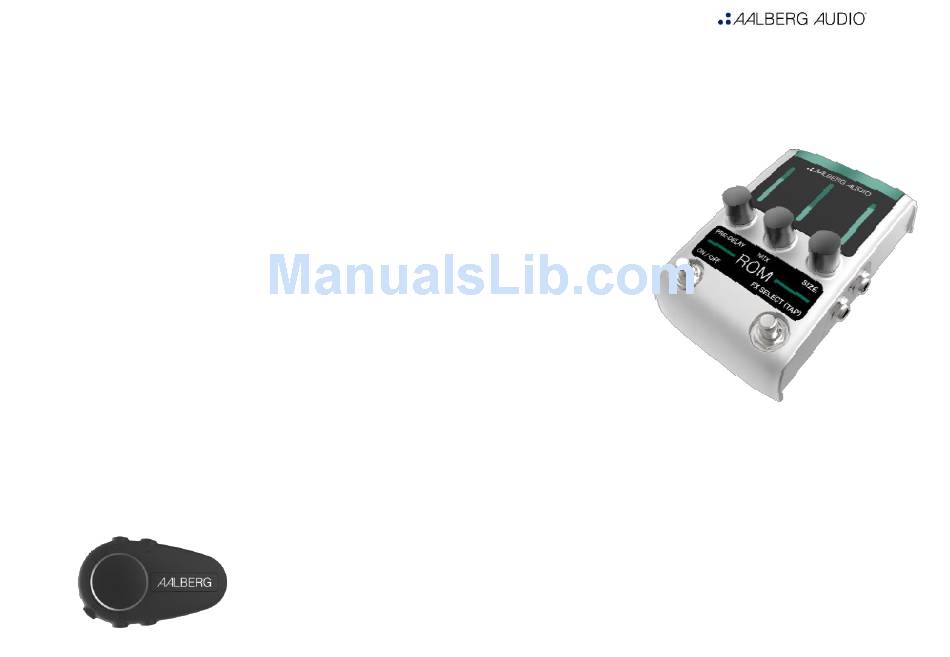

You are now the owner of the ROM RO-1 Reverb pedal!
ROM is a high-quality, custom aluminum housing reverb pedal with true bypass. It can be
controlled like a stand-alone effects pedal or use the AERO
the pedal's full potential (optional):
TM
RO-1
Reverb Pedal
nd
2015
1
TM
AE-1 wireless controller to unleash

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROM RO-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Aalberg Audio ROM RO-1

Summary of Contents for Aalberg Audio ROM RO-1

  • Page 1 ROM RO-1 User Manual rev. 1.0.0, May 22 2015 CONGRATULATIONS! You are now the owner of the ROM RO-1 Reverb pedal! ROM is a high-quality, custom aluminum housing reverb pedal with true bypass. It can be controlled like a stand-alone effects pedal or use the AERO AE-1 wireless controller to unleash the pedal’s full potential (optional):...

  • Page 2: Table Of Contents

    4. TECHNICAL SPECIFICATIONS ............6 5. SOFTWARE UPDATE ................7 6. WIRELESS CONTROL - PAIRING ............9 7. INPUT/OUTPUT SETUPS ..............11 8. DISCLAIMERS ..................13 9. WARRANTY ..................13 10. HISTORY ..................15 11. IPR-RELATED .................16 12. COMPLIANCE .................16 13. ABOUT AALBERG AUDIO ..............17...

  • Page 3: Getting Started

    1. GETTING STARTED To get your pedal up and running you need a standard 9V DC, 2.1 mm plug, center negative power supply (minimum 250 mA). You will find the connector at the back of your pedal. The pedal supports both mono and stereo connections. Combinations of these will lead to different properties in the output signal.
  • Page 4 o ALT (no light): Short pre-delay 10 ms o ALT (light): Long pre-delay ON/OFF Set the pedal to ON (activated) or OFF (true bypass).

  • Page 5: Overview

    3. OVERVIEW *Set active parameter for AERO AE-1 Wireless Controller...

  • Page 6: Technical Specifications

    4. TECHNICAL SPECIFICATIONS Power supply (not included) 9V DC, 2.1 mm plug (center negative) Current draw 250 mA Input impedance@1kHz ~1M Ohm Output impedance@1kHz < 1k Ohm Maximum input signal 3.22 Vp-p (2.28 Vrms) Sound Quality (sample-/bit rate) 48 kHz/24-bits Connectors - INPUT (mono/stereo) - OUTPUT (mono/stereo)

  • Page 7: Software Update

    5. SOFTWARE UPDATE UPDATE APP ESTIMATED READY: AFTER SUMMER 2015 Performing software updates on your wireless Aalberg Audio product is easy: 1. To set your device in software update mode:  For AERO: i. Turn off the AERO (slide switch set to ‘0’) ii.
  • Page 8 4. The Aalberg Audio device set to update mode will now show up in a list in the AALBERG UPDATER, and you can check the current revision of the software found on the device. 5. You can now choose if you want to update to the latest software available.

  • Page 9: Wireless Control - Pairing

    6. WIRELESS CONTROL - PAIRING In order to control your Aalberg effects pedal using the AERO wireless controller (optional) you need to pair the devices. Below is a step-by-step guide: 1. To set your devices in pairing mode:  AERO: i.
  • Page 10 2. Confirm pairing: When you have repeated the above steps for all of your Aalberg pedals, you need to press and hold the rotary knob button for 3 seconds, then release button. To indicate that pairing is completed, AERO LED (red) and lowermost LEDs in mid row for all pedals will light for 2 seconds 3.

  • Page 11: Input/Output Setups

    7. INPUT/OUTPUT SETUPS The Aalberg ROM RO-1 Reverb Pedal offers the following mono/stereo configurations: 1. Mono in/Mono out 2. Mono in/stereo out 3. Dry/wet split 4. Stereo in/stereo out 1. Mono in/Mono out Connect your instrument to Mono in and the amplifier to Mono out.
  • Page 12 Connecting your instrument to Stereo in will split the dry/wet signal as follows:  Mono out: 100% wet signal  Stereo out: 100% dry signal 4. Stereo in/Stereo out For a more spacious reverb using two amplifiers. Connect stereo signal to both inputs in and one amplifier to Mono out and another amplifier to Stereo out.

  • Page 13: Disclaimers

    8. DISCLAIMERS All use of our products is undertaken at your own risk and expense and Aalberg Audio cannot be held liable for any direct or indirect losses or cost incurred through use, default or malfunction of our products. Repair or replacement of defective units under our warranty provisions serve as the sole remedy in the unlikely event that our products does not comply with product specifications.
  • Page 14 Aalberg Audio the warranty is no longer valid. Stores and distributors must always check products before sending them to Aalberg Audio for repairs. Please note that we cannot replace a product before we have received it at the Aalberg Audio HQ in Trondheim, Norway.

  • Page 15: History

    10. HISTORY The inspiration for the delay pedals with wireless controller came to guitar player and inventor Rune Aalberg Alstad back in 2009, when he was tired of having to run over to the pedals and bend down all the time to change the effect settings. In 2012 he met the engineer Torkild Indstøy and the entrepreneur Aleksander Torstensen, and five years later, after lots of testing and prototyping we are proud to introduce the world’s first EKKO EK-1 Delay Pedal with the AERO AE-1 Wireless Controller.

  • Page 16: Ipr-Related

    11. IPR-RELATED Design Protection pending in EU & USA International Patent Application Pending PCT/NO2014/050236 12. COMPLIANCE Aalberg Audio accept and follow these regulations and directives.

  • Page 17: About Aalberg Audio

    13. ABOUT AALBERG AUDIO Aalberg Audio AS is located in Trondheim, Norway. We produce wireless guitar effects with accompanying hardware and software. Please don't hesitate to contact us if you have any questions or inquiries! Visit: www.aalbergaudio.com www.aalbergaudio.com Trondheim NORWAY ™...
