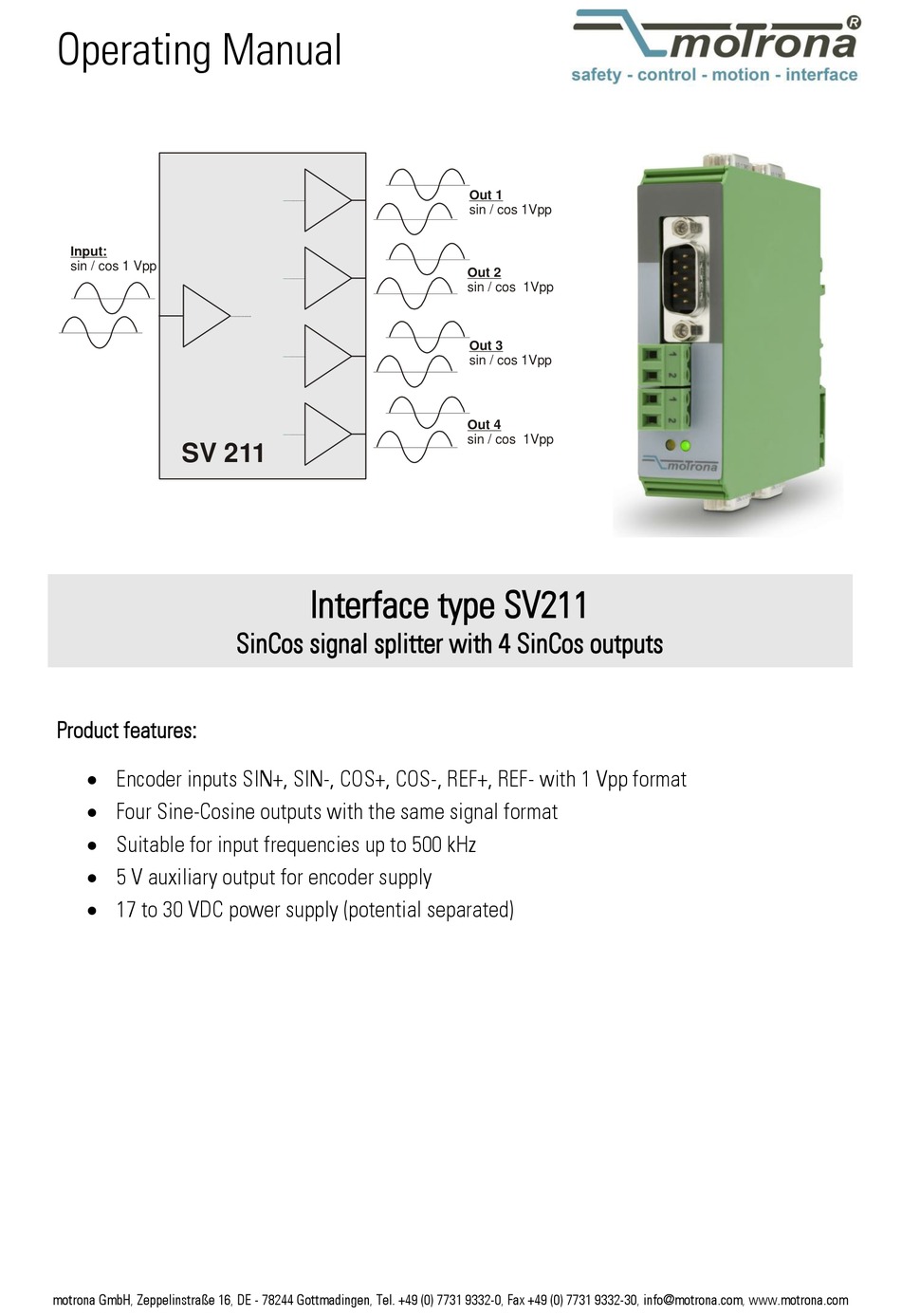

Operating Manual

Input:
sin / cos 1 Vpp
SV 211
Product features:
 Encoder inputs SIN+, SIN-, COS+, COS-, REF+, REF- with 1 Vpp format
 Four Sine-Cosine outputs with the same signal format
 Suitable for input frequencies up to 500 kHz
 5 V auxiliary output for encoder supply
 17 to 30 VDC power supply (potential separated)
motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com
Interface type SV211
SinCos signal splitter with 4 SinCos outputs
Out 1
sin / cos 1Vpp
Out 2
sin / cos 1Vpp
Out 3
sin / cos 1Vpp
Out 4
sin / cos 1Vpp

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV211 and is the answer not in the manual?

Questions and answers

Related Manuals for Motrona SV211

Summary of Contents for Motrona SV211

  • Page 1: Operating Manual

     Suitable for input frequencies up to 500 kHz  5 V auxiliary output for encoder supply  17 to 30 VDC power supply (potential separated) motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. +49 (0) 7731 9332-0, Fax +49 (0) 7731 9332-30, info@motrona.com, www.motrona.com...

  • Page 2: Table Of Contents

    Legal notices: All contents included in this manual are protected by the terms of use and copyrights of motrona GmbH. Any reproduction, modification, usage or publication in other electronic and printed media as well as in the internet requires prior written authorization by motrona GmbH.

  • Page 3: Safety Instructions And Responsibility

    1. Safety Instructions and Responsibility 1.1 General Safety Instructions This operation manual is a significant component of the unit and includes important rules and hints about the installation, function and usage. Non-observance can result in damage and/or impairment of the functions to the unit or the machine or even in injury to persons using the equipment! Please read the following instructions carefully before operating the device and observe all safety and warning instructions! Keep the manual for later use.

  • Page 4: Installation

    For placement, wiring, environmental conditions as well as shielding and earthing/grounding of the supply lines the general standards of industrial automation industry and the specific shielding instructions of the manufacturer are valid. Please find all respective hints and rules on www.motrona.com/download.html --> “[General EMC Rules for Wiring, Screening and Earthing]”.

  • Page 5: Application

    2. Application The SV 211 encoder splitter has been designed for clean and trouble-free distribution of the output signals of SinCos type encoders to several target units. On all sine output channels the same signal format is available as on the input site, including a reference impulse (if available on the input site).

  • Page 6: Connection Diagram

    3. Connection Diagram For wiring of the sinusoidal signals the unit provides 5 SUB-D-9 connectors (X1, X2, X3, X4 and X5). For all other connections 2 screw terminal strips are available (X6 and X7). All SUB-D 9 connector housings are connected with the GND potential. Output 1 Output 2 (sin-cos 1 Vpp)

  • Page 7: Connection Of The Sine-Cosine Encoder (X5)

     It is recommendable to connect the cable shield directly to the metal housing of the associated counterpart connector. This ensures that the cable is connected with the GND potential in any case via SV211. Sv211_01c_oi_e.doc / Apr-16 Page 7 / 9...

  • Page 8: Front Leds

    4. Front LEDs  The green LED is lit whenever the power supply of the unit is on.  The yellow LED indicates the availability of the encoder supply +5 V. The yellow LED is lit whenever the supply is available. 5.

  • Page 9: Technical Specifications

    6. Technical Specifications Power supply: Input voltage: 17 … 30 VDC, galvanically isolated Protection: reverse polarity protection Ripple: ≤ 10 % at 24 VDC Consumption: approx. 70 mA (unloaded) Connections: screw terminal, 1.5 mm² / AWG 16 Encoder supply: Output voltage: 5.2 VDC (or according to external input voltage) Output current: max.
