Page 1

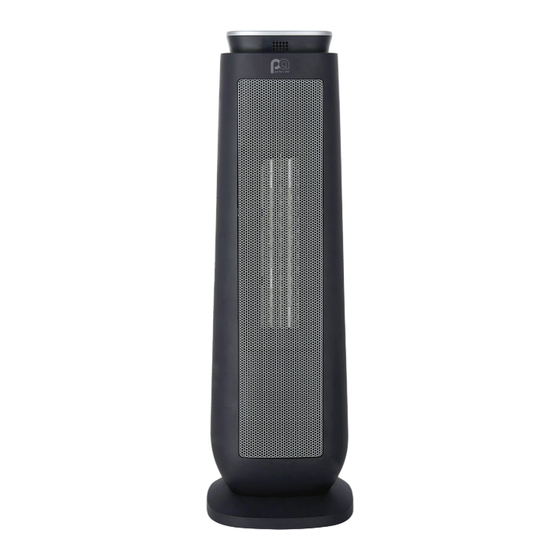

CERAMIC HEATER HEATER USER MANUAL FOR MODEL: 1PHCT23 Before using your ceramic heater please read this manual carefully and keep it for future reference, along with your receipt.
IMPORTANT INSTRUCTIONS PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances,basic precautions should always be followed to reduce the risk of fire,electric shock,and injury to persons, including the following: 1. Read all instructions before using heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface.
Page 3
could result in an electric shock hazard. 10. This heater draws 12.5 amps during operation. To prevent overloading could result in an electric shock hazard. a circuit, do not plug the heater into a circuit that already has other appliances working. 10.
Page 4
PART FIGURE Display screen Control panel Front cover Grille Rear cover Base Dispaly area Function ON/OFF Oscillation Timer -, +...
Page 5
OPERATING INSTRUCTION Check before turning on the machine 1. Check if the power wire is under good condition. 2. The product adopts 120V AC power supply, before use, please confirm if the rated current of the power socket meets the local requirements with safe grounding device, otherwise, please replace it with the qualified socket.
Temperature sensor short circuit, open circuit protection function No matter in what mode, the temperature sensor appears short circuit or open circuit, digital screen displays "E1" or "E2" and constantly flicker, while any key operation is invalid and the buzzer rings 10 times. Safety protection In the start state, when the room temperature TH is above 122°F, close all outputs system, The digital screen displays "FF"...
LOW OSC HIGH OSC . The product adopts 120V AC power supply, before use, please confirm if the rated current of the power socket meets the local requirements with safe 1PHCT23 1500 1500 HC-1004 grounding device, otherwise, please replace it with the qualified socket.
Page 8
Distributed by: Perfect Aire, LLC 5401 Dansher Rd. Countryside, IL 60525 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User_1PHCT231/05132019 Specification and performance data is subject to change without notice. Printed in China...
