Table of Contents
Advertisement
Quick Links
Contents ..................................................................................................................................................... 1
Safety Instructions. .................................................................................................................................... 2
Inspection and Testing. .............................................................................................................................. 4
Sub Floor ................................................................................................................................................... 4
Deck Mount Faucet Installation .................................................................................................................. 4
Installation Instructions for 1-Piece Tub with Integral Overflow ................................................................. 4
Installation Instructions for 1-Piece Tub ..................................................................................................... 5
Overflow Drain Hole Cutouts ..................................................................................................................... 5
Installation Instructions for 2-Piece Tub ..................................................................................................... 6
Installation Instructions for Remote Blower ................................................................................................ 6
Installation Instructions for 2-Piece Tubs with Whisper+ Technology™ or Heated Soak ........................... 7
Installation Instuctions for Bianca Whirlpool Drain Installation ................................................................... 8
Acylic Bathtub Maintenance ....................................................................................................................... 9
Solid Surface Care and Cleaning Instructions ........................................................................................... 9
Notes ........................................................................................................................................................ 10
Warranty Registration Card ..................................................................................................................... 11
PD52000D
INSTALLATION INSTRUCTIONS
Jacuzzi Luxury Bath
14525 Monte Vista Avenue
Chino, California 91710
FREESTANDING
BATHS
11/2018
Advertisement
Table of Contents
Related Manuals for Jacuzzi Stella

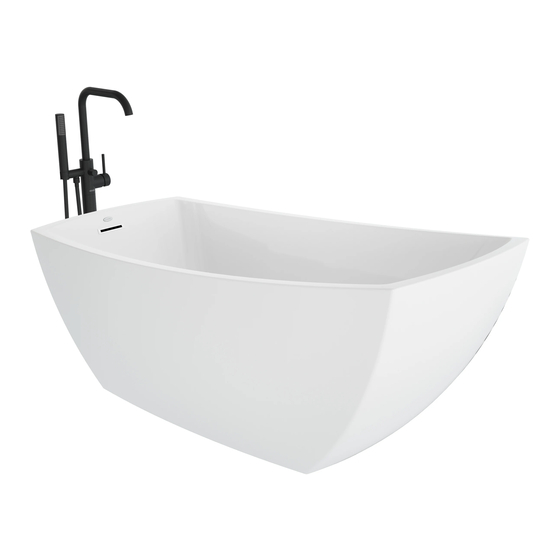

Summary of Contents for Jacuzzi Stella
-
Page 1: Table Of Contents
Installation Instuctions for Bianca Whirlpool Drain Installation ..............8 Acylic Bathtub Maintenance ........................9 Solid Surface Care and Cleaning Instructions ................... 9 Notes ................................ 10 Warranty Registration Card ........................11 Jacuzzi Luxury Bath 14525 Monte Vista Avenue Chino, California 91710 PD52000D 11/2018... -
Page 2: Safety Instructions
We recommend that a licensed contractor perform the installation of all Jacuzzi Luxury Bath products. Our warranty does not cover improper installation related problems. CAUTION: When using this unit, basic precautions should always be performed, including the following: READ AND FOLLOW ALL INSTRUCTIONS. - Page 3 It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of the product. The Company makes no representation or warranty regarding, and will not be responsible for any code compliance. Product specifications are subject to change without notice. Installation Instructions Page 3 www.jacuzzi.com...
-
Page 4: Inspection And Testing
All bathtub units are factory tested for proper operation and watertight connections prior to shipping. However, the unit must be retested by the installer prior to installation. Jacuzzi Luxury Bath is not responsible for any defect that could have been discovered, repaired, or avoided by following this inspection and testing procedure: Place the bathtub on a level surface, near appropriate water supply, and water drainage. -
Page 5: Installation Instructions For 1-Piece Tub With Integral Overflow
Specifications section. View Watertight installation of the drain is the installer’s responsibility. Drain leakage is excluded from the Jacuzzi Luxury Bath warranty of this product. Before the tub may be secured to the floor, the following steps must be completed: Place the tub on the floor in relation to the drain/overflow. -
Page 6: Overflow Drain Hole Cutouts
Apply silicone to the foam feet or bottom of the adjustable feet. Carefully place the tub into the tub skirt in relation to the drain/overflow. Allow silicone to dry for 24-hours before entering and/or using the tub. Page 6 Installation Instructions www.jacuzzi.com... -
Page 7: Installation Instructions For Remote Blower
Take care not to damage the brass tailpiece while lowering the bathtub into (Drain the skirt (Modena™ only). Alignment Drain 36” Stainless Steel Kit Only) Alignment Kit Supply Lines Turn on power to the dedicated GFCI-protected circuit and check vsystem (Modena™ Only) (If Applicable) operations. Installation Instructions Page 7 www.jacuzzi.com... -
Page 8: Installation Instuctions For Bianca Whirlpool Drain Installation
Thread (Included Tee (Included) in Drain Alignment Kit) Brass Nut Apply 2.75” (Included Glue in Drain Here Alignment Brass Tailpiece (Included in Kit) 1-1/2” PVC 90° Drain Alignment Kit) Apply Elbow SxS Grease (Included) Here Page 8 Installation Instructions www.jacuzzi.com... -
Page 9: Solid Surface Care And Cleaning Instructions
Solid Surface Care And Cleaning Instructions Jacuzzi Luxury Bath solid surface baths are manufactured with non-porous and durable materials that, when properly cared for and cleaned, resist soil buildup and stains to a great degree. The unique blend of natural and man-made materials, while strong and beautiful, may contain very slight variances in color and surface texture throughout the tub. -
Page 10: Notes
Freestanding Baths Notes: Page 10 Installation Instructions www.jacuzzi.com... -
Page 12: Warranty Registration Card
WARRANTY REGISTRATION CARD To complete your registration, visit our website at www.jacuzzi.com or fill out and mail this card to the address printed on the other side within thirty (30) days from date of purchase in order for this warranty to take effect.
