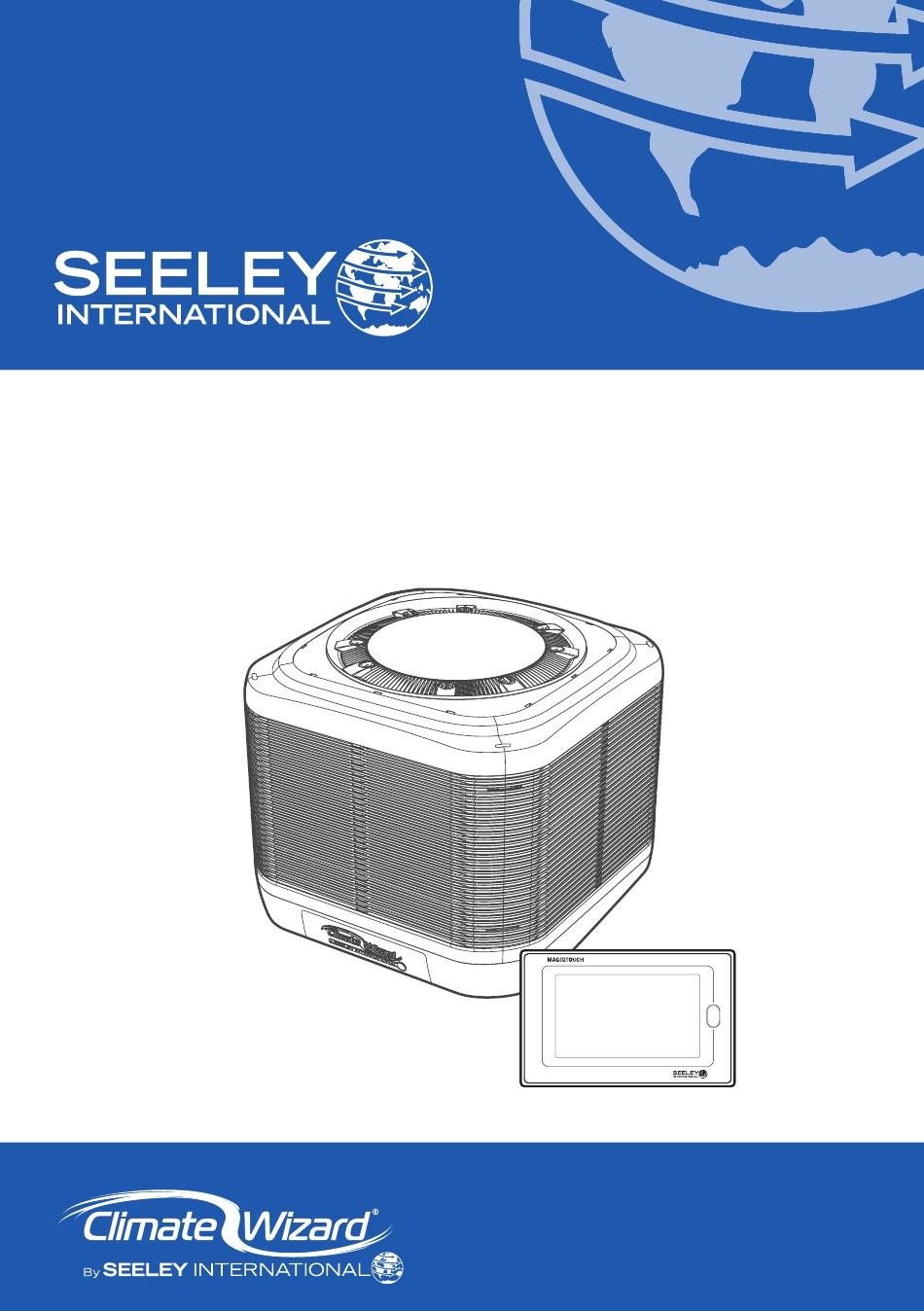

- Page 1 OWNER’S MANUAL Climate Wizard CW-6S Microcore (English) Original English Instructions...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE If the supply cord is damaged, INSTRUCTIONS FOR it must be replaced by the FUTURE REFERENCE. manufacturer, its service agent or similarly qualified persons in FOR EUROPE order to avoid a hazard. This appliance can be used New hose sets supplied with by children aged from 8 years the appliance are to be used...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Never force parts to fit because all parts are designed to fit together easily without undue force. Never drill holes in the cooler’s water reservoir. IMPORTANT NOTES! In areas where temperatures can cause water supply pipes to freeze, a drain down facility should be provided during the installation.
-
Page 4: Table Of Contents
TABLE OF CONTENTS OPERATING THE SYSTEM GENERAL TIPS QUICK REFERENCE Rooftop Cooling unit CONTROLLER SETTINGS QUICK START OPERATION Navigation Manual Mode - Cooling Manual Mode - Heating (if fitted) Program Mode SETTINGS MENU General Menu Cooling Menus Service Menu WARNINGS & SERVICE MESSAGES SLAVE CONTROLLERS POWER OUTAGES CONTROLLER TROUBLE SHOOTING... -
Page 5: Operating The System
Hello and congratulations on purchasing a Seeley International Climate Wizard CW-6S Microcore Cooler At Seeley International we manufacture Climate Wizard Air Conditioning systems ® from the highest quality materials, and we have designed the product to provide many years of economical, trouble-free air comfort and control. -
Page 6: Quick Reference
QUICK REFERENCE Here’s a brief visual guide to the main features of your wall controller. External / Internal “Live” Temperatures (External Temperature is only available if an External Sensor is fitted to your System On/Off Time Date System) Set Temp or Fan Speed Increase or Decrease Temp... -
Page 7: Controller Settings
CONTROLLER SETTINGS Your MagIQtouch Controller contains a settings menu, which gives you access to information about your CW-6S Microcore Cooler and to extra functions including: About Appliance Access information about the appliances installed in your system. Min/Max Set Temperature You can change the minimum and maximum temperature displayed on your slider, depending on what temperature range you prefer your system to work... -
Page 8: Quick Start
QUICK START Step 2 Here’s a brief visual guide to get you started quickly! Select mode from lower taskbar. Continue reading for detailed instructions. Step 1 Activate screen. ILL1523-C Step 3 Turn on cooling or fan only mode ILL1521-C ILL1525-C ILL1525-A ILL1522-C ILL1544-C... - Page 9 QUICK START cont Step 4 Step 5 Set desired temperature. Switch between thermostatic control to fan speed control. Note: When in thermostatic mode the fan speed automatically adjusts to achieve set temperature. ILL1527-C ILL1527-C ILL2413-A ILL1528-C ILL1528-C ILL2414-A CW-6S MICROCORE OWNER’S MANUAL |...
- Page 10 QUICK START cont Step 6 Access wall control and system settings in the SETTINGS menu. ILL1531-C ILL1531-A ILL1563-C...
-
Page 11: Operation Navigation
OPERATION NAVIGATION MANUAL MODE - COOLING There are a few things you might need In cooling mode, manual TEMP mode will to know in order to navigate your new try to maintain the temperature you want MagIQtouch Controller. by speeding up or slowing down the fan. The following section outlines some of the sliders and buttons you will need to use. -
Page 12: Manual Mode - Heating (If Fitted)
OPERATION cont MANUAL MODE - HEATING PROGRAM MODE (If Fitted) If you like routine and want to “set and forget” a seven day program that suits your lifestyle, activate PROGRAM mode. In heating mode, manual TEMP mode will try to maintain the temperature you want PROGRAM mode divides each day into by starting or stopping the fan. - Page 13 OPERATION cont PROGRAM MODE Or perhaps you want to make the cont temperature higher without permanently changing your program. The OVERRIDE button will allow you to temporarily change what’s been set by the program until the next time period begins. ILL1552-A If your system has zones, you’ll see each zone listed in rows.
- Page 14 OPERATION cont PROGRAM MODE Turn the system on or off. cont Now you can review what you’ve done and select another time period. ILL1556-B Adjust the start time. ILL1562-A Or if you’re done, press BACK to return to the program home screen. ILL1558-A Adjust the set temperature.
-
Page 15: Settings Menu
SETTINGS MENU The SETTINGS menu contains extra The current status is listed on the right, options. There are general settings close to the arrow buttons. for your MagIQtouch Controller and the system as a whole. You’ll also find individual menus for the product(s) you have installed. -
Page 16: General Menu
ILL1571-B * Only available for zoned installations. COOLING MENUS The COOLER menus include settings or information related to the specific Seeley International cooling products installed within your system. Here are some settings that are common to all cooling and heating... -
Page 17: Service Menu
SETTINGS MENU cont SERVICE MENU Status Information Display When this option is turned on, a temporary The SERVICE menu contains information information display window becomes and functions for competent service accessible on all MANUAL and PROGRAM personnel. Access is locked without a screens. -
Page 18: Warnings & Service Messages
WARNINGS & SERVICE MESSAGES Your MagIQtouch Controller will operate If a service issue occurs, there are some to make sure everything is as it should features to help you resolve it as quickly be. If it detects a change or a problem, it as possible. -
Page 19: Slave Controllers
SLAVE CONTROLLERS POWER OUTAGES Multiple MagIQtouch Controllers can be used to control individual zones. In such installations there is always one “master After a power outage there will be a controller” located in a nominated “master prompt to adjust the time and date. zone”. -
Page 20: Removing Side Panels
ACCESS FOR SERVICING REMOVING SIDE PANELS AND MAINTENANCE To remove a side panel: The CW-6S Microcore rooftop unit should be installed in a position that 1. Insert a flat head screw driver into the allows adequate access for installation, gap between the lid and the top of the and future maintenance and servicing side panel. -
Page 21: Seasonal Maintenance
If you are unsure how to find, remove, and clean the return air filter, then please contact your local Seeley Dealer or your installer. Cleaning the return air filter regularly will help to keep the heater running efficiently. -
Page 22: Maintenance Schedule
MAINTENANCE SCHEDULE CW-6S MICROCORE ROOFTOP COOLING UNIT Service Item Check/Adjust Clean Replace Water Distribution System Cooling modules (replace as required) Tank/Water Reservoir Pump Filter Water Probes System Washers, Seals and O’Rings (replace as required) Drain Valve operation Component Function Pump operation Drain Valve operation Motor Operation Solenoid operation... -
Page 23: Troubleshooting
If your controller prompts you to call a service agent, please contact your local Seeley International authorised dealer or the service number on the back of this manual. Important! In an emergency we recommend that you immediately cease operating the appliance, and if applicable, have the power and water isolated. -
Page 24: How To Register Your Warranty (Australia Only)
HOW TO REGISTER YOUR PRODUCT WARRANTY (Australia only) Warranty Information section HOW TO REGISTER YOUR PRODUCT WARRANTY (Australia only) Please register your warranty online by visiting seeleyinternational.com and selecting COMMERCIAL section on the top right hand side of the screen. Then follow these steps: Step 1 Select REGISTER A PRODUCT FOR WARRANTY Step 2 Enter your product serial number and “SUBMIT”... -
Page 25: Warranty Terms And Conditions (Australia Only)
Warranty Details (Australia only) In this warranty: We or us means Seeley International Pty Ltd (Seeley) ABN 23 054 687 035, and our contact details are set out at the end of this warranty; You means you, the original end-user purchaser of the Goods;... - Page 26 The warranty granted in clause 1 covers the costs of parts and labour but you will be responsible for: the cost of travel incurred for a Seeley International service agent to get to and from the location of the Goods if the location of the Goods is either: (i) outside the metropolitan areas of the capital cities; or (ii) more than 35 kilometres from an authorised Seeley International branch or service representative;...
- Page 27 PRIVACY NOTICE Seeley International Pty Ltd ABN 23 054 687 035 will use the personal information you provide us with to provide warranty support for the product you have purchased and to inform you about other products and services. If you choose not to supply us with the information requested, we may be unable to provide you with warranty support.
- Page 28 6 WITTON ROAD, FOUNDERSVIEW SOUTH, MODDERFONTEIN 1609, GAUTENG, SOUTH AFRICA It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
