■ FUNCTIONAL BLOCK: fbDIEX[0...7]
This Functional Block is valid only when the input extension module is specified at NodeObject.
Extension
discrete Input
Normal Mode
Combination Mode

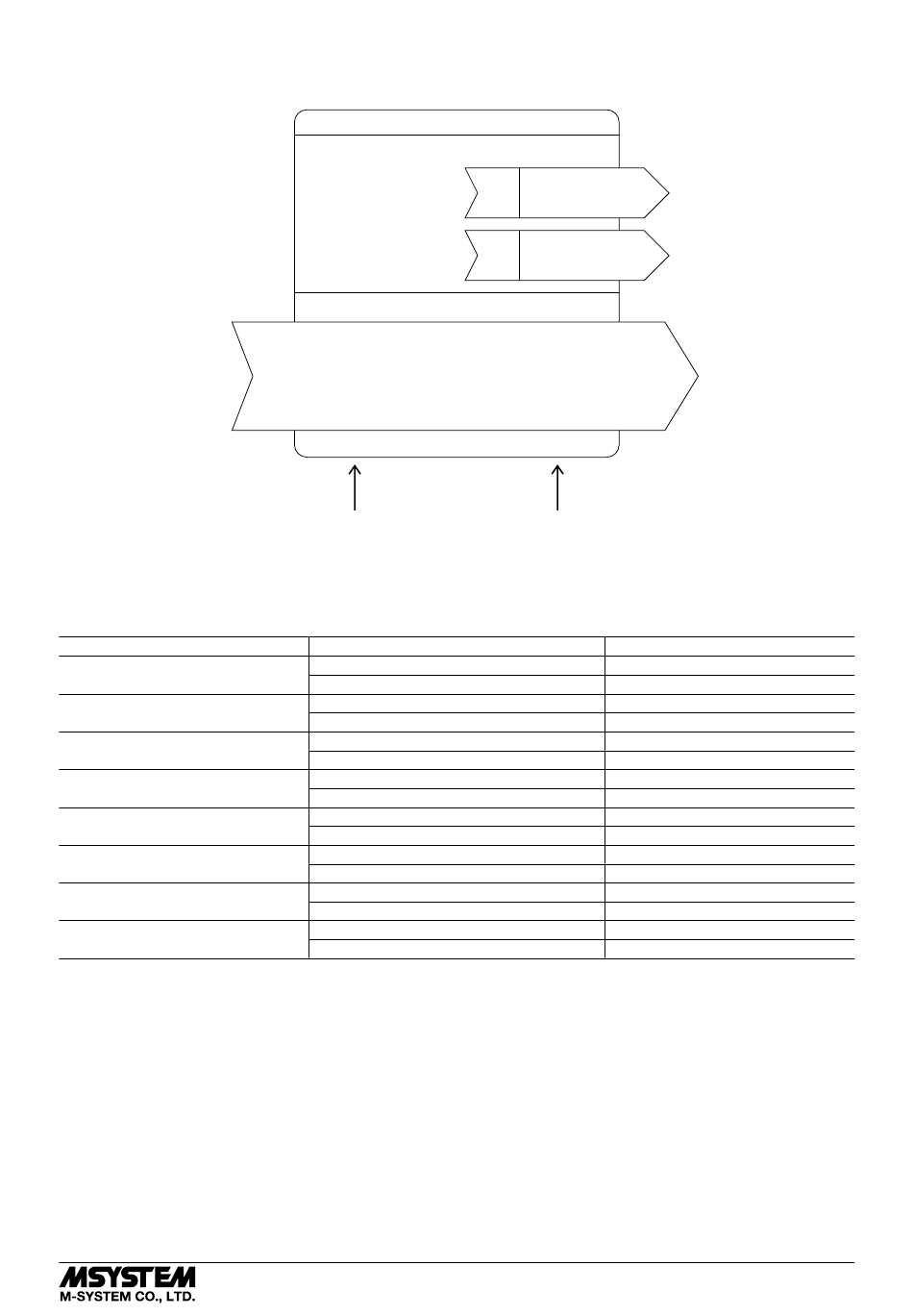

• Input Terminal v.s. fbDIEX Network Variables (nvoDIEX1, nvoDIEX2) Assignments
FUNCTIONAL BLOCK
fbDIEX[0]
fbDIEX[1]
fbDIEX[2]
fbDIEX[3]
fbDIEX[4]
fbDIEX[5]
fbDIEX[6]
fbDIEX[7]
fbDIEX[0...7] (Object ID : 9...16)
Network Variables
Configuration Properties
fbDIEX[ ] :
SCPTdirection
Set operating mode
nvoDIEX1 :
SCPTinvrtOut
Invert output
nvoDIEX2 :
SCPTinvrtOut
Invert output
X0, X2, X4, X6, X8, XA, XC, XE
Status output at nvoDIEX1
Refer to the table in the next page.
NETWORK VARIABLE
nvoDIEX1
nvoDIEX2
nvoDIEX1
nvoDIEX2
nvoDIEX1
nvoDIEX2
nvoDIEX1
nvoDIEX2
nvoDIEX1
nvoDIEX2
nvoDIEX1
nvoDIEX2
nvoDIEX1
nvoDIEX2
nvoDIEX1
nvoDIEX2
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
nvoDIEX1
nv 20
...nv 27
SNVT_switch
nvoDIEX2
nv 28
...nv 35
SNVT_switch
X1, X3, X5, X7, X9, XB, XD, XF
Status output at nvoDIEX2
R7L-SV4
INPUT TERMINAL
X0
X1
X2
X3
X4
X5
X6
X7
X8
X9
XA
XB
XC
XD
XE
XF
EM-7804-A Rev.5 P. 17 / 18
