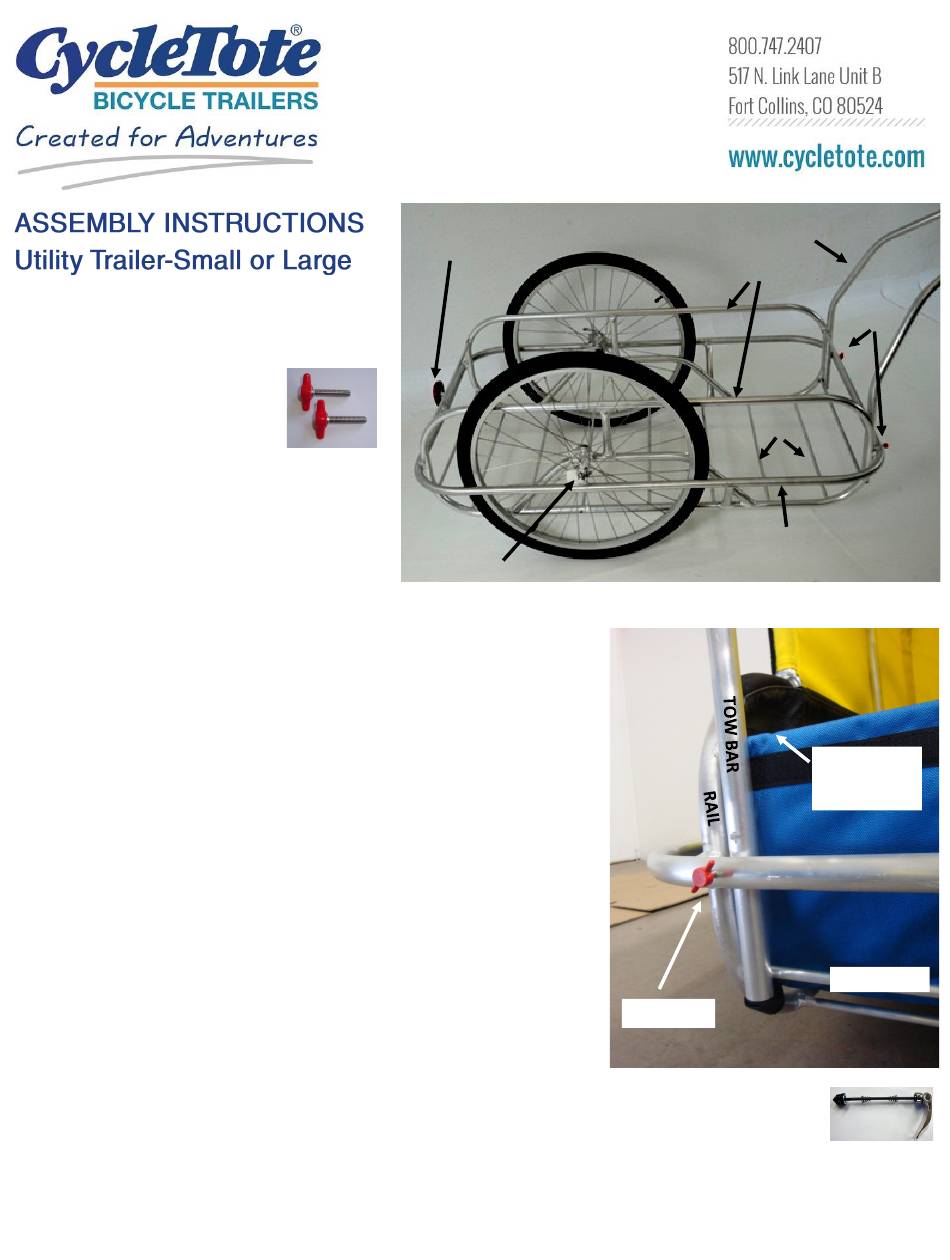

CYCLETOTE Utility Trailer-Small Assembly Instructions

Parts

Trailer frame
Seat post hitch
Two quick release wheels with
skewers and tires
Two red set screws
Hitch nut
Rear reflector
Two wheel reflectors
Safety flag
Hex key
Tow bar & ball joint
Safety strap
Tow bar
Insert the two red set screws (wing nuts) into the threaded holes in the main frame
just far enough to hold them in place. Slide the tow bar downwards, between the
outer horizontal ring and the two notched front struts.
There are two grooves in the tow bar. Select the grooves that allow your trailer to
sit closest to level. Adjust the tow bar while you tighten the red set screws by hand
so that the screw tips fit into the indentations in the front of the tow bar.
When tightened securely, the tow bar is pressed firmly against the struts to prevent
it from loosening.
Jogger Stroller
If you are installing the Jogger wheel, instead of the tow bar, follow Jogger Stroller
Instructions which are a included separately, then return to Wheels.

Wheels

NOTE: If you have a braking system, skip this section, go to the separately en-
closed Braking System Instructions, and then return to Wheel Reflectors.
Unwrap the quick release skewer, unscrew the nut and remove one spring. Then slide the skewer through the axle
of the hub (center of the wheel). Replace the spring with the smaller end towards the inside, and loosely attach the nut.
Set the wheel into the dropouts of the frame with the quick release skewer to the outside of the trailer. Tighten the nut until the
LARGE TRAILER
Reflector
Drop Outs
hold wheel
Tow bar
Rail
Struts
Outer Horizontal
RING
Red Set Screw
Red Set
Screws
Ring
Grooved strut
under fabric
Grooved strut
Skewer
1
