Avermedia AVerDVR TV2VGA Introduction

Introduction
Thank you for purchasing AVerMedia
converter is an inexpensive solution for DVR that only support TV output to display
video on LCD/CRT monitor. It supports PAL and NTSC video systems and
provides up to 1280 x 1024, 60~85Hz.
AVerDVR TV2VGA is easy to install and use. Control buttons are provided for
easy screen positioning and adjustment.

Package Contents

®
AVerMedia AVerDVR TV2VGA
Power adapter
Manual

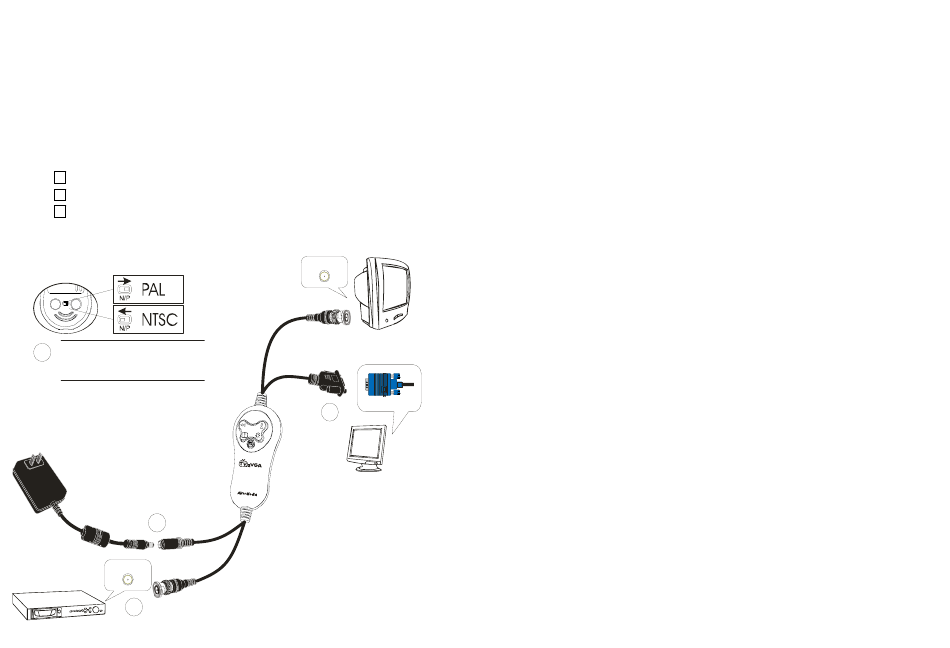

Hardware Connection

Back Panel
N/P
Note: Make sure the DIP switch is
1
set according to the DVR
video system.
Power adapter
The power adapter varies depending
*
on the standard power outlet of the
country where it is sold.
2
BNC VIDEO OUT
DVR
3
®
AVerDVR TV2VGA. AVerDVR TV2VGA
BNC VIDEO IN
Television
Monitor Cable
4
LCD Monitor
