Paradox ZX32D Manual

ZX32D: 32 Zone Expansion Module
Description
Driven by the V32 main controller's 4-wire communication
bus (Multibus), the ZX32D is a DIN module with 32 inputs
for home automation or security with a status display for
each input. The module offers a test mode with 5 different
tests for input connectivity and operation, and full remote
firmware upgradeability.
With its DIN rail design, the module saves space, and
makes installation and wiring significantly faster and easier.

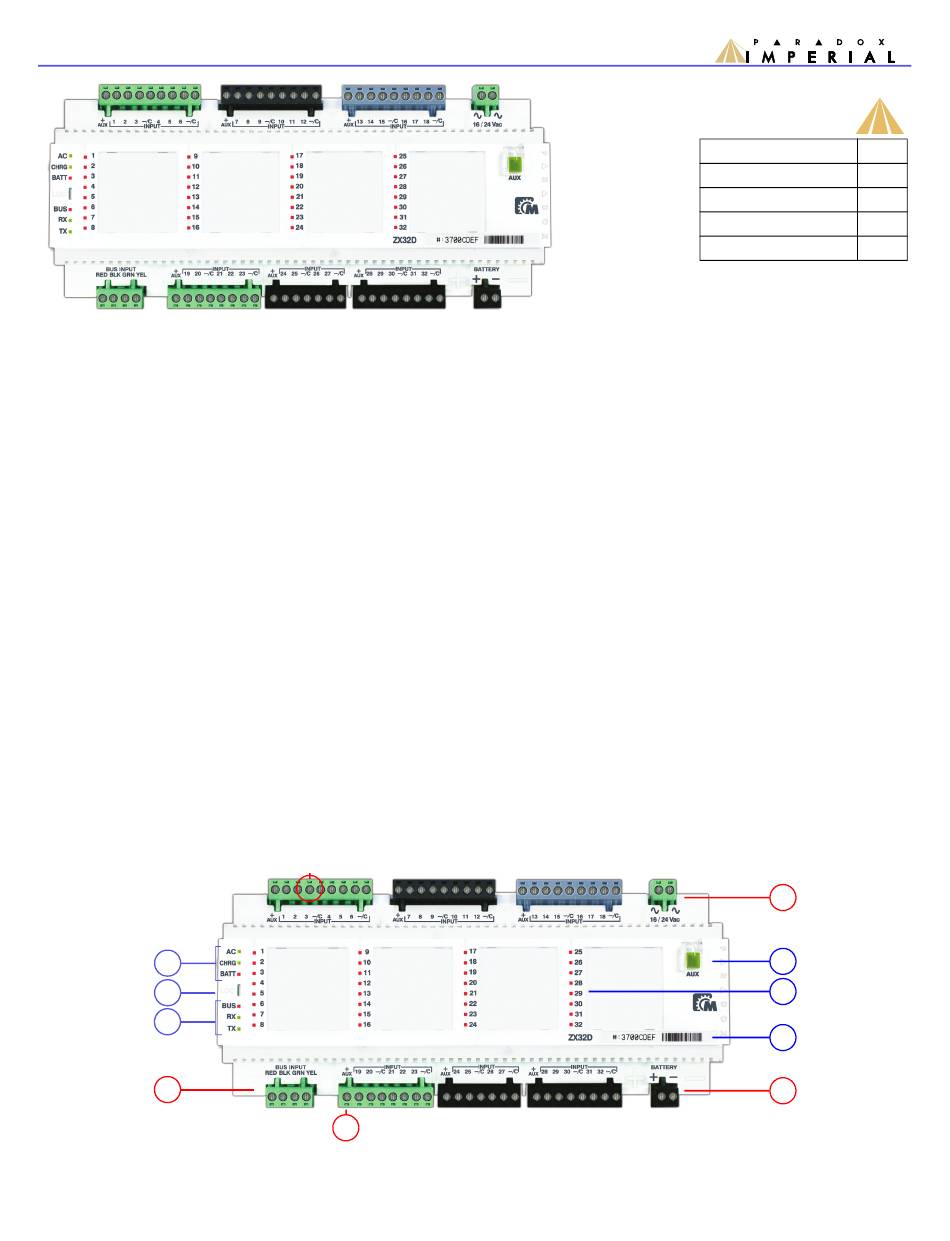

Overview
1) Power feedback LEDs
2) Module Locate feature activation (see "Bi-directional
Locate Feature" on page 3)
3) Multibus input status LEDs
4) Local AUX output control
5) Input status LEDs
6) Product serial number
1
2
3
A
For LED status, refer to "LED
Feedback" on page 3.
Features
•
•
•
•
•
•
•
•
•
A) 4-wire Multibus connection
B) Device inputs
C) Aux outputs
D) AC/DC input: 16-24Vac or 16-36Vdc
E) Battery connection: 12Vdc, 4Ah/7Ah gel cell
B
C
ZX32D - page 1
32 zones or inputs
Diagnostic Mode: Zone LEDs turn on/off to identify
assigned zone inputs, verify correct wiring (no EOL,
EOL without tamper, EOL with tamper) and perform a
walk test
Built-in switching power supply with battery charging
Auxiliary outputs providing up to 1A
Remote firmware upgradeability via Multibus
DIN rail design with on-board status display, and
removable terminals
Programming via BabyWare software
4-wire connection to the Imperial Multibus with up to
900m (3000ft) distance
Bi-directional LOCATE feature from module to software
and vice versa
Installation/Wiring: ??
Programming 1: ??
Programming 2: ??
Testing: ??
Total Time: ??
DRAFT
D
4
5
6
E
