Summary of Contents for NESTOR MARTIN STANFORD 9

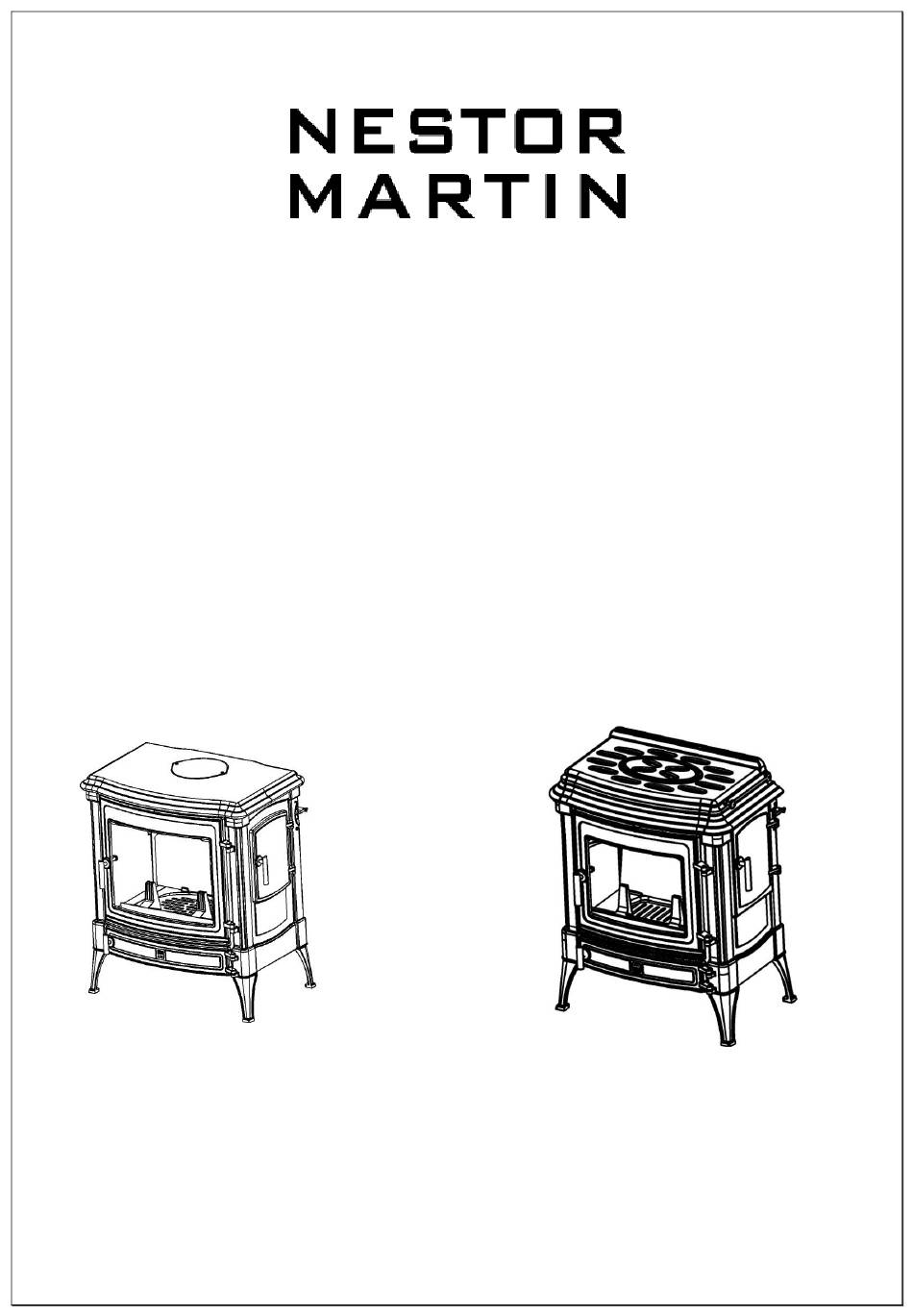

- Page 1 STANFORD 9 STANFORD 12 STANFORD 9 PLUS STANFORD 12 PLUS C07100DA352...
- Page 2 C07100DA352...
- Page 3 STANFORD 9 STANFORD 12 C07100DA352...
- Page 4 STANFORD 9+ STANFORD 12+ C07100DA352...
- Page 5 ENGLISH Stanford 9 Stanford 9+ Stanford 12 Stanford 12+ C07100DA352...
- Page 6 ENSURE THAT THIS MANUAL REMAINS WITH THE APPLIANCE AND PASSED TO THE USER AFTER INSTALLATION . DO NOT STORE OR USE PETROL OR OTHER FLAMMABLE VAPOURS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
- Page 7 (recommended) a chimney cowel, designed to stabiliser flue conditions. The Aerocowel is one such cowel sold for this purpose. Good FIG.1 Stove flue outlet sizes Stanford 9 Internal: 125 mm Stanford 12 Internal: 153 mm Extemal: 139 mm Extemal: 167 mm The chimney will be sufficiently high and clear of the house ridge by at least 1 meter to prevent any down draught.
- Page 8 AIR SUPPLY TO APPLIANCE. A room air entry opening or openings is or are needed. These must have a total free area of at Ieast 550mm per kW of rated output above 5kW. Where a flue stabiliser is used the total free area should be incraesed by 300mm for each kW of rated output.
- Page 9 door will become dirty. To keep the glass clean, we recommend you do not shut the damper completely but to leave it slightly open, depending on how the chimney draws, to achieve slow burning for a maximum of 10 hours. With a good drawing chimney the air wash control n°...
- Page 10 OPERATING WITH COAL Note: air wash control n° 1 must always be closed. LIGHTING COAL Place some tightly rolled paper/fire lighters and a little coal and kindling on the grate. Open the direct draught damper (3) (pull the handle to the right). Close air wash control n°...
- Page 11 OPERATION WITH COAL Thermostat n° 2 enables you to regulate the tempo of the stove by adjusting the air intake opening. The thermostat will automatically control the fire depending on the position it is set. The thermostat responds to both the stove and room temperature.
- Page 12 Wood Use dry wood which by definifion must be wood which has been dried under cover for more than 18 months, in which case the logs contain less than 20% moisture. Anthracite of a minimum size of 20x30 mm (3/4"x 1. 1/4"), lumps weighing at least 20 grames (6-7 oz.) and coal briquettes (ovoids /eggs).
-
Page 13: Summer Shut Down
MAINTENANCE OF THE GLASS. Properly operated, your glass doors will not get coated with thick tar like conventional stoves. If this does occur you may have to resort to using a glass cleaner. However by using the correct dry fuels and or smokeless coal , much of the tar on the glass will burn clean, when the appliance is run at high temperature. -
Page 14: Warning For Your Safety
Have your stove fitted by a professional. In the event of problems contact him immediately. Ask him to obtain originaI NESTOR MARTIN parts for you - beware of imitations. When you have found the part you require note the part nurnber. - Page 15 Top flue outlet configeration STANFORD 9 (not protection plates are used for rear flue outlet) When using top flue outlet fit flue protection tube. When using rear flue outlet fit top flue protector plate before fitting cover plate. This protection...
-
Page 16: Warranty
NESTOR MARTIN does not authorize any person or company to assume for it any other obligation or liability in connection with the sale application engineering, installation, use, removal, return, or replacement of its equipement, and no such representations are binding on NESTOR MARTIN. - Page 17 C07100DA352...
- Page 18 C07100DA352...
- Page 19 C07100DA352...
- Page 20 C07100DA352...
- Page 21 SOTO DE LA MARINA - CANTABRIA Apdo. de correos 208 SANTANDER C07100DA352_1 05/2015 C07100DA352...
