Gude Expert PDU basic 8110 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Expert PDU basic 8110/8111
© 2010 Gude Analog- und Digitalsysteme GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Expert PDU basic 8110 and is the answer not in the manual?

Questions and answers

Related Manuals for Gude Expert PDU basic 8110

Summary of Contents for Gude Expert PDU basic 8110

  • Page 1 Expert PDU basic 8110/8111 © 2010 Gude Analog- und Digitalsysteme GmbH...
  • Page 2 Expert PDU basic 8110/8111 © 2010 Gude Analog- und Digitalsysteme GmbH 26.08.2010...

  • Page 3: Table Of Contents

    Expert PDU basic 8110/8111 Content Table of content Chapter 1 Security Advise Chapter 2 Description Chapter 3 Hardware Content of delivery Connections Installation Chapter 4 Configuration DHCP Network settings with GBL_Conf Configuration via webinterface 4.3.1 Configuration - IP address 4.3.2 Configuration - IP ACL 4.3.3...

  • Page 4: Chapter 1 Security Advise

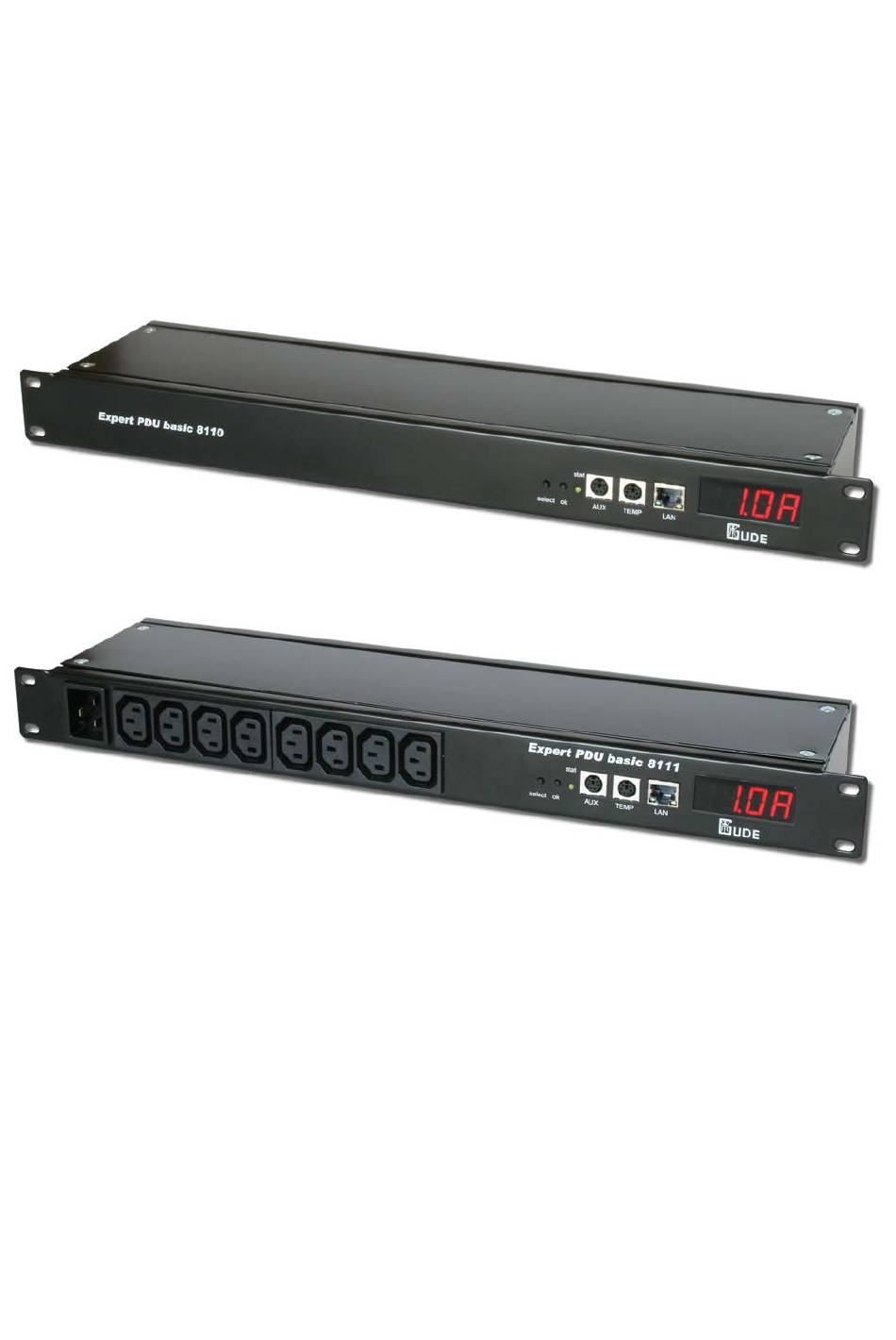

    Description Expert PDU basic 8110/8111 is a 19“ device which allows to monitor the power distribution of up to 8 electrical devices via TCP/IP. For installation, Expert PDU basic 8110/8111 is simply connected to a power supply and to the local network. After allocating a free IP address to Expert PDU basic 8110/8111, the device can be monitored from any computer in the same LAN via web browser.

  • Page 5: Connections

    Installation 1.) Connect the power supply cable to the at the rear side (Expert PDU basic 8110) or front side (Expert PDU basic 8111 ) of Expert PDU basic 8110/8111 and a socket. Expert PDU basic 8110/8111 now is booting and shortly after ready for usage.

  • Page 6: Chapter 4 Configuration

    Enter a free IP address and the according netmask in the entry mask, then save these changes by clicking on Program Device SaveConfig. Restart the firmware of Expert PDU basic 8110/8111, so that the changes will take effect. Now click on Search in order to have the new network configuration displayed. Configuration via webinterface Go to the website of Expert PDU basic 8110/8111.

  • Page 7: Configuration - Ip Address

    Use DHCP Here you can set, if Expert PDU basic 8110/8111 shall get its TCP/IP settings directly from your DHCP server. If DHCP is activated, Expert PDU basic 8110/8111 proves if a DHCP server is active inside of your LAN. Then Expert PDU basic 8110/8111 requests TCP/IP settings from this server.

  • Page 8: Configuration - Ip Acl

    Configuration - IP ACL IP Access Control List (IP ACL) acts as an IP filter for your Expert PDU basic 8110/8111. Wether it is active hosts and subnets only can contact Expert PDU basic 8110/8111, if their IP adresses are stated in this IP ACL.

  • Page 9: Configuration - Messages

    Administrators are authorized to switch all ports and to modify the settings of Expert PDU basic 8110/8111 and of all ports. The username of the admin is “admin”. Users are authorized to switch all ports but are not allowed to modify the settings of neither Expert PDU basic 8110/8111 nor the ports. The username of the user is “user”.

  • Page 10: Configuration - Snmp

    SNMP and Syslog. 4.3.5 Configuration - SNMP 4.3.5.1 Enable SNMP-get Here you can activate SNMP-get protocol of Expert PDU basic 8110/8111. Use SNMP only if your network is fitted for. 4.3.5.2 Community public Here you can enter the SNMP public community.

  • Page 11: Configuration - Snmp Trap Receiver List

    Here you can choose between SNMP-traps standard v1 and v2c. Use SNMP only if your network is fitted for. More information about the SNMP functions of Expert PDU basic 8110/8111, you can find in chapter SNMP, on http://www. gude.info/wiki or ask our support team.

  • Page 12: Chapter 5 Operation

    Connect the temperature sensor with the TEMP and AUX connector at the front of the device. If it is connected exactly, the recent temperature is displayed in the login window, in the switching window and can be requested via SNMP. The temperature sensor can be ordered as additional supplies. More information can be found at www.gude.info or requested at mail@gude.info.

  • Page 13: Chapter 6 Features

    Bootloader mode To activate the bootloader mode of Expert PDU basic 8110/8111 the button must be pushed while restarting the device. In bootloader mode it is possible to disable the password protection, to update the firmware and to restore the default settings by running the program GBL_Conf.exe.

  • Page 14: Chapter 7 Support

    More information, current drivers and software can be found on http://www.gude.info. In case of further questions, about installation or operation of Expert PDU basic 8110/8111, please have look at www.gude. info/wiki or do not hesitate to contact our support (mail@gude.info).

  • Page 15: Chapter 8 Declarations Of Conformity

    Expert PDU basic 8110/8111 Support Declarations of conformity...
  • Page 16 Expert PDU basic 8110/8111 Declarations of conformity...
  • Page 17 Expert PDU basic 8110/8111 Declarations of conformity...
  • Page 18 Expert PDU basic 8110/8111 © 2010 Gude Analog- und Digitalsysteme GmbH 26.08.2010...
