stake sack (1X)
sac pour piquets (x 1)
bolsa de estacas (1X)
SlimShady (1X)
#1035826C-1/11
INSTRUCTION
stake (2X)
piquet (x 2)
estaca (2X)
nut (4X)
écrou (x 4)
tuerca (4X)
guy rope (2X)
hauban (x 2)
cuerda con tensor (2 x)
SlimShady
wrench (1X)
bolt (4X)
clé (x 1)
boulon (x 4)
llave para tuercas (1X)
tornillo (4X)
key (2X)
clé de serrure (x 2)
llave (2X)
washer (4X)
roundbar adapter (2x)
rondelle (x 4)
adaptateur pour barre ronde (x 2)
arandela (4X)
adaptador para barra redonda (2x)
Tool(s) required:
Outil(s) nécessaire(s) :
Herramienta(s)
necesaria(s):
clamps (2X)
pince (x 2)
abrazaderas (2X)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Yakima SlimShady
Summary of Contents for Yakima SlimShady

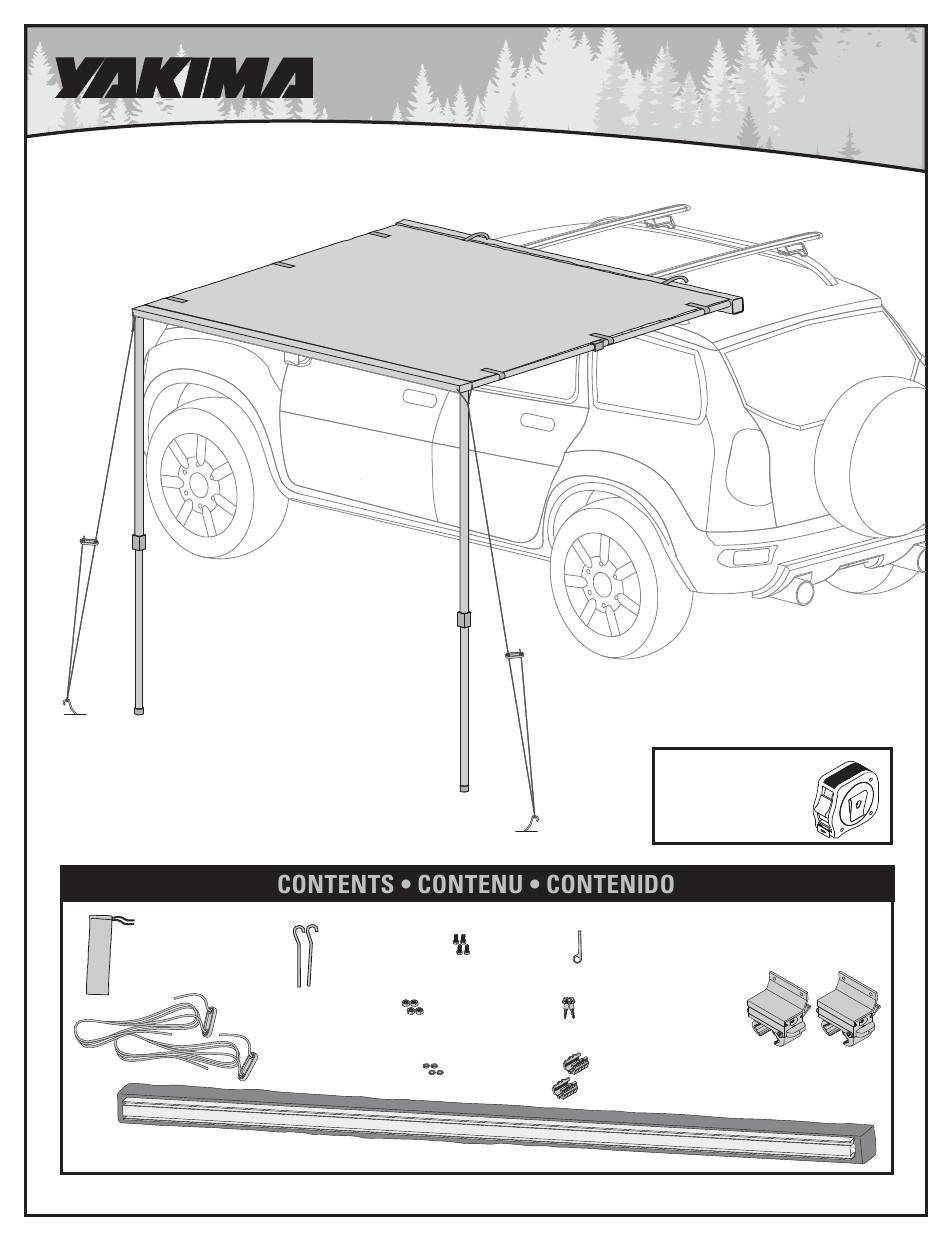

- Page 1 (4X) llave (2X) guy rope (2X) hauban (x 2) washer (4X) roundbar adapter (2x) cuerda con tensor (2 x) rondelle (x 4) adaptateur pour barre ronde (x 2) arandela (4X) adaptador para barra redonda (2x) SlimShady (1X) #1035826C-1/11 INSTRUCTION...
- Page 2 Introduzca dos tornillos en la guía superior de cada lado del toldo SlimShady y coloque las abrazaderas en los tornillos. Luego ponga una arandela y enrosque una tuerca en cada tornillo y apriete ligeramente con la mano. Una vez instalada, abra completamente las abrazaderas.
- Page 3 If you have Yakima RoundBars you must use the included Use the wrench to fully RoundBar adapters. First remove the pads from the clamps. tighten the 4 bolts. Then the adapters go around the RoundBars with the hinge oriented downward, and the clamps fit over the adapters.
- Page 4 Check for any front to back movement. If there is any movement, repeat step 3 and 4. Vérifier que l’auvent ne Verifique que el toldo bouge pas du tout vers no se mueve para l’avant ou l’arrière. Si adelante o para atrás. c’est le cas, reprendre Si aún se mueve, les opérations 3 et 4.
- Page 5 Fold down the front supports. Twist the tubing a quarter turn to unlock, and adjust their lengths then twist the tubing a quarter turn in the opposite direction to lock in the length. Set the awning to be level on a sunny day, or angle it slightly downward in the case of rain. Déplier les poteaux avant.
- Page 6 Drive a stake into the ground at a 45 degree angle about 12” (30.5cm) from the base of each front support. Hook the looped end of guy ropes around the stakes, then slide the tensioner up until the rope is under tension. Placer les piquets à...
- Page 7 Release the guy tensioner, and remove the stakes. Twist the tubing to unlock, and retract the front supports. Fold the front supports back into the frame. Secure by pressing them into place. Relâcher les Afloje el tensor de cuerda tendeurs et enlever les piquets. Tourner les poteaux pour y desentierre las estacas.
- Page 8 Asegure las correas antes de salir de viaje. Remove the SlimShady. Déposer l’auvent SlimShady. Retire el toldo SlimShady. Unlock Déverrouiller et ouvrir les and open deux pinces complètement. the clamps Destrabe y abra las completely.
-
Page 9: Avertissements Importants
AVERTISSEMENTS IMPORTANTS ADVERTENCIAS IMPORTANTES Remove your awning and Déposer l’auvent et le porte-bagage Retire el toldo y el rack Yakima antes Yakima avant d’entrer dans un lave- de entrar en un lavadero automático Yakima Rack before entering an auto automatique. - Page 10 Awning Care and Maintenance Your awning is designed to be a durable companion on your adventures. In order to keep it performing at its best, we recommend some simple care and maintenance steps that will help prolong the life of your awning. Prior to each use, inspect your awning mounting hardware.
- Page 11 Yakima before returning to the retailer who sold the product. Pour tout problème ou toute question concernant ce produit, prière de contacter Yakima avant de retourner chez le détaillant de qui on a acheté le produit. Por todo problema o pregunta en relación con este producto, por favor comuníquese con Yakima antes de contactar al minorista que le vendió...
