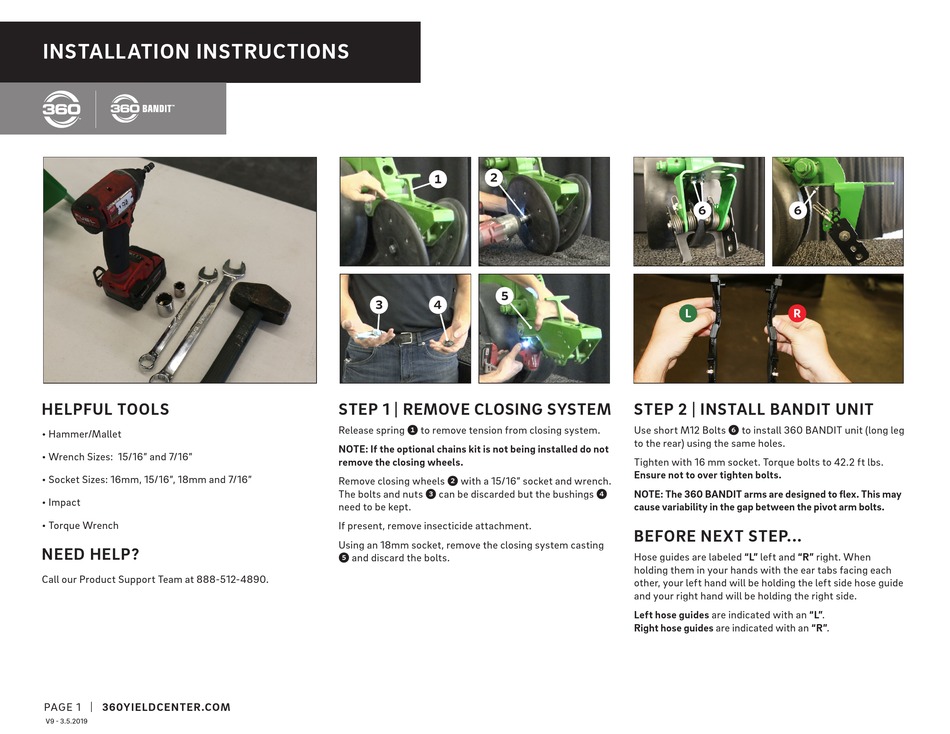

360 YIELD CENTER 360 Series Installation Instructions

INSTALLATION INSTRUCTIONS
HELPFUL TOOLS
• Hammer/Mallet
• Wrench Sizes: 15/16" and 7/16"
• Socket Sizes: 16mm, 15/16", 18mm and 7/16"
• Impact
• Torque Wrench
NEED HELP?
Call our Product Support Team at 888-512-4890.
PAGE 1 | 360YIELDCENTER.COM
V9 - 3.5.2019
2
1
5
3 4
STEP 1 | REMOVE CLOSING SYSTEM
Release spring 1 to remove tension from closing system.
NOTE: If the optional chains kit is not being installed do not
remove the closing wheels.
Remove closing wheels 2 with a 15/16" socket and wrench.
The bolts and nuts 3 can be discarded but the bushings 4
need to be kept.
If present, remove insecticide attachment.
Using an 18mm socket, remove the closing system casting
5 and discard the bolts.
6 6
l r
STEP 2 | INSTALL BANDIT UNIT
Use short M12 Bolts 6 to install 360 BANDIT unit (long leg
to the rear) using the same holes.
Tighten with 16 mm socket. Torque bolts to 42.2 ft lbs.
Ensure not to over tighten bolts.
NOTE: The 360 BANDIT arms are designed to flex. This may
cause variability in the gap between the pivot arm bolts.
BEFORE NEXT STEP...
Hose guides are labeled "L" left and "R" right. When
holding them in your hands with the ear tabs facing each
other, your left hand will be holding the left side hose guide
and your right hand will be holding the right side.
Left hose guides are indicated with an "L".
Right hose guides are indicated with an "R".
