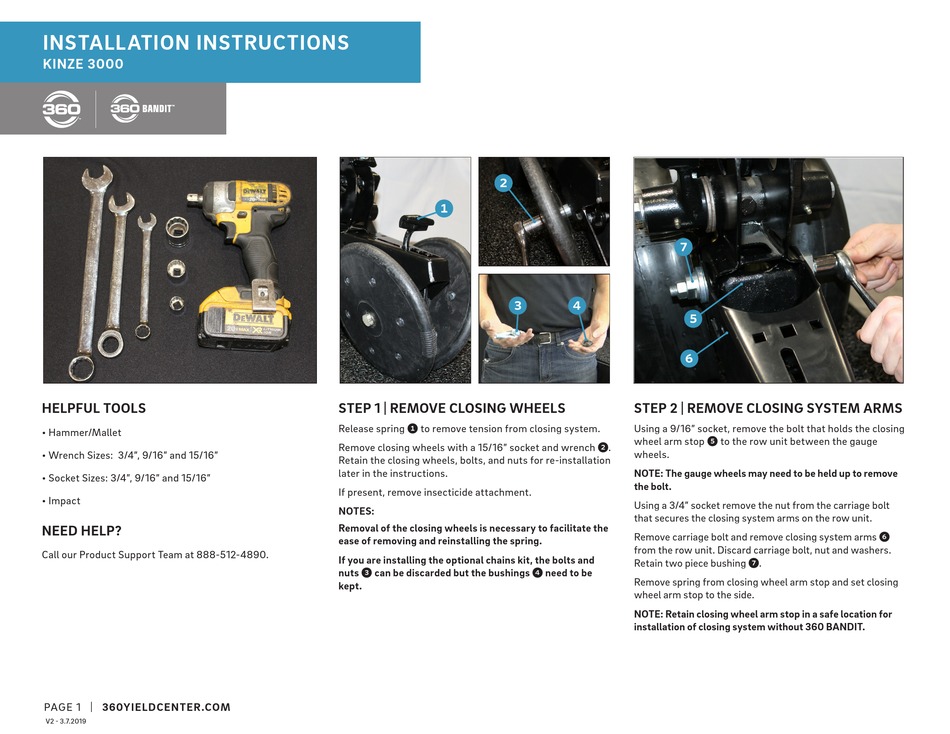

INSTALLATION INSTRUCTIONS
KINZE 3000
HELPFUL TOOLS
• Hammer/Mallet
• Wrench Sizes: 3/4", 9/16" and 15/16"
• Socket Sizes: 3/4", 9/16" and 15/16"
• Impact
NEED HELP?
Call our Product Support Team at 888-512-4890.
PAGE 1 | 360YIELDCENTER.COM
V2 - 3.7.2019
2
1
3
STEP 1 | REMOVE CLOSING WHEELS
Release spring 1 to remove tension from closing system.
Remove closing wheels with a 15/16" socket and wrench 2.
Retain the closing wheels, bolts, and nuts for re-installation
later in the instructions.
If present, remove insecticide attachment.
NOTES:
Removal of the closing wheels is necessary to facilitate the
ease of removing and reinstalling the spring.
If you are installing the optional chains kit, the bolts and
nuts 3 can be discarded but the bushings 4 need to be
kept.
7
4
5
6
STEP 2 | REMOVE CLOSING SYSTEM ARMS
Using a 9/16" socket, remove the bolt that holds the closing
wheel arm stop 5 to the row unit between the gauge
wheels.
NOTE: The gauge wheels may need to be held up to remove
the bolt.
Using a 3/4" socket remove the nut from the carriage bolt
that secures the closing system arms on the row unit.
Remove carriage bolt and remove closing system arms 6
from the row unit. Discard carriage bolt, nut and washers.
Retain two piece bushing 7.
Remove spring from closing wheel arm stop and set closing
wheel arm stop to the side.
NOTE: Retain closing wheel arm stop in a safe location for
installation of closing system without 360 BANDIT.
