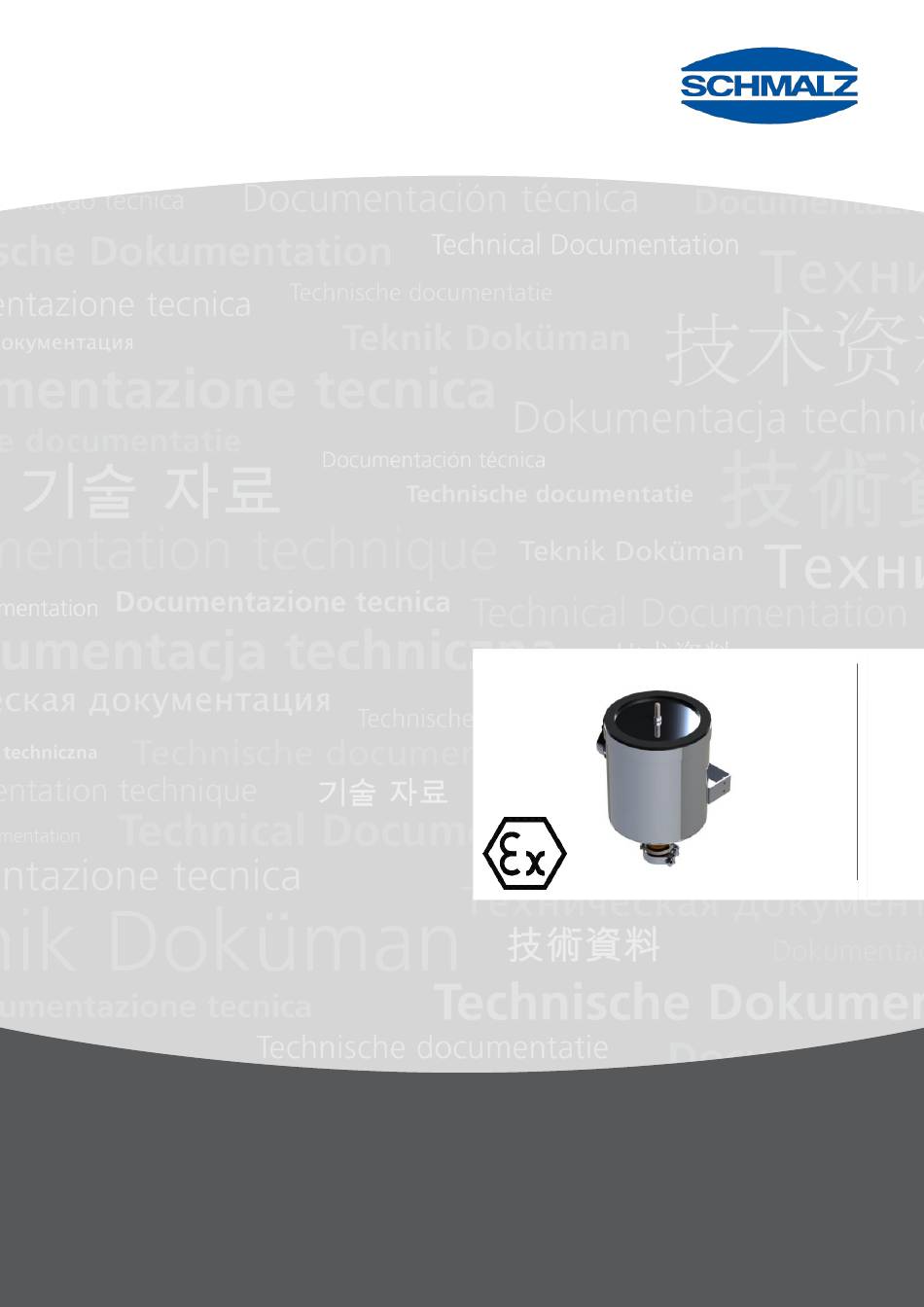

- Page 1 Innovative Vacuum for Automation Operating Instructions Dust Filter STF for Explosion Protection Zones 30.30.01.01548/00 | 02.2018 www.schmalz.com...
- Page 2 Published by © J. Schmalz GmbH, 02.2018 This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Reproduction of the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law.
-
Page 3: Table Of Contents
Establishing equipotential bonding ..................11 3.2.1 Grounding the dust filter ....................12 3.2.2 Grounding the vacuum hoses ..................12 Attaching the hoses ......................12 Resistance measurement ....................12 Maintenance...................... 13 Removing and cleaning filter cartridges ................13 Spare and wearing parts ....................14 Disposal ......................14 www.schmalz.com... -
Page 4: Safety Instructions
This warning informs the user of a risk that could result in damage to property if it is not avoided. ATTENTION Type and source of danger Consequence ► Remedial action General notes This symbol is used when important notes and information regarding the use of the machine/the system/the device are provided. Note/information 4 | EN www.schmalz.com 30.30.01.01548/00... -
Page 5: Warnings
Floating dust particles Explosive atmosphere Mandatory symbols Explanation of the mandatory symbols used in the operating instructions. Mandatory Description Mandatory Description symbols symbols Wear a mask Wear eye protection Activate prior to maintenance or repair 30.30.01.01548/00 www.schmalz.com EN | 5... -
Page 6: General Safety Instructions
► General safety regulations, European standards and VDE guidelines must be performing tasks. The same applies to maintenance! observed and complied with. ► It is not permitted to make changes to system components. ► Protect the components from damage of any kind. 6 | EN www.schmalz.com 30.30.01.01548/00... -
Page 7: Regulations In These Instructions
Pressure can cause closed devices to explode Personal injury and/or damage to property ► Wear eye protection Non-intended use The manufacturer accepts no liability for damages caused by the use of the dust filter for other purposes. 30.30.01.01548/00 www.schmalz.com EN | 7... -
Page 8: Requirements And Instructions For Installation, Maintenance And Operating Staff
WARNING Risk of injury due to misuse or non-observance of warning and safety notices Persons could be harmed ► The equipment must be used by trained personnel only. 8 | EN www.schmalz.com 30.30.01.01548/00... -
Page 9: Product Description
5/2017 or later. Components Item Designation Air outlet connection (vacuum generator) Hose clamps Air inlet connection (suction cup) Upper housing section Lower housing section (dust collecting pan) Filter cartridge Housing cover Mounting bracket 30.30.01.01548/00 www.schmalz.com EN | 9... -
Page 10: Installation And Operation
The dust filter can be installed vertically or horizontally. When mounting the unit vertically, ensure that the dust collecting system (5) is at the bottom. Incorrect installation voids the warranty for the dust filter and vacuum generator 10 | EN www.schmalz.com 30.30.01.01548/00... -
Page 11: Mounting The Dust Filter
Ensure that no dirt enters the blower supply hose. ► Ensure that no dust gets inside the filter cartridge during blowing. WARNING Insufficient grounding Risk of explosion ► Grounding connections must be checked regularly to ensure explosion protection. 30.30.01.01548/00 www.schmalz.com EN | 11... -
Page 12: Grounding The Dust Filter
Attach the hoses using the hose clamps SSD (2) included in the delivery. Resistance measurement Measure the total resistance once the installation is complete. In this process, observe the relevant parts of the operating instructions for the hoist. 12 | EN www.schmalz.com 30.30.01.01548/00... -
Page 13: Maintenance
8. Close the housing cover. To blow out the unit, set a pipe on a compressed-air gun that is bent at the end by approx. 90°. The pipe must be long enough to reach the bottom of the cartridge. 30.30.01.01548/00 www.schmalz.com EN | 13... -
Page 14: Spare And Wearing Parts
After replacement or after final decommissioning, the system, as well as the components and assemblies that were replaced, are to be disposed of in accordance with country-specific guidelines. ATTENTION Incorrect disposal of the dust filter Environmental damage ► Disposal according to country-specific regulations 14 | EN www.schmalz.com 30.30.01.01548/00... - Page 15 In short, easy-to-understand videos we explain the extensive features of our products. Take a look, it’s worth it! www.schmalz.com/gewusst-wie Further services ranging from consultation to training can be found at www.schmalz.com/services J. Schmalz GmbH Johannes-Schmalz-Str. 1 72293 Glatten, Germany Phone +49 (0)7443 2403-0 Fax +49 (0)7443 2403-259 schmalz@schmalz.de...
