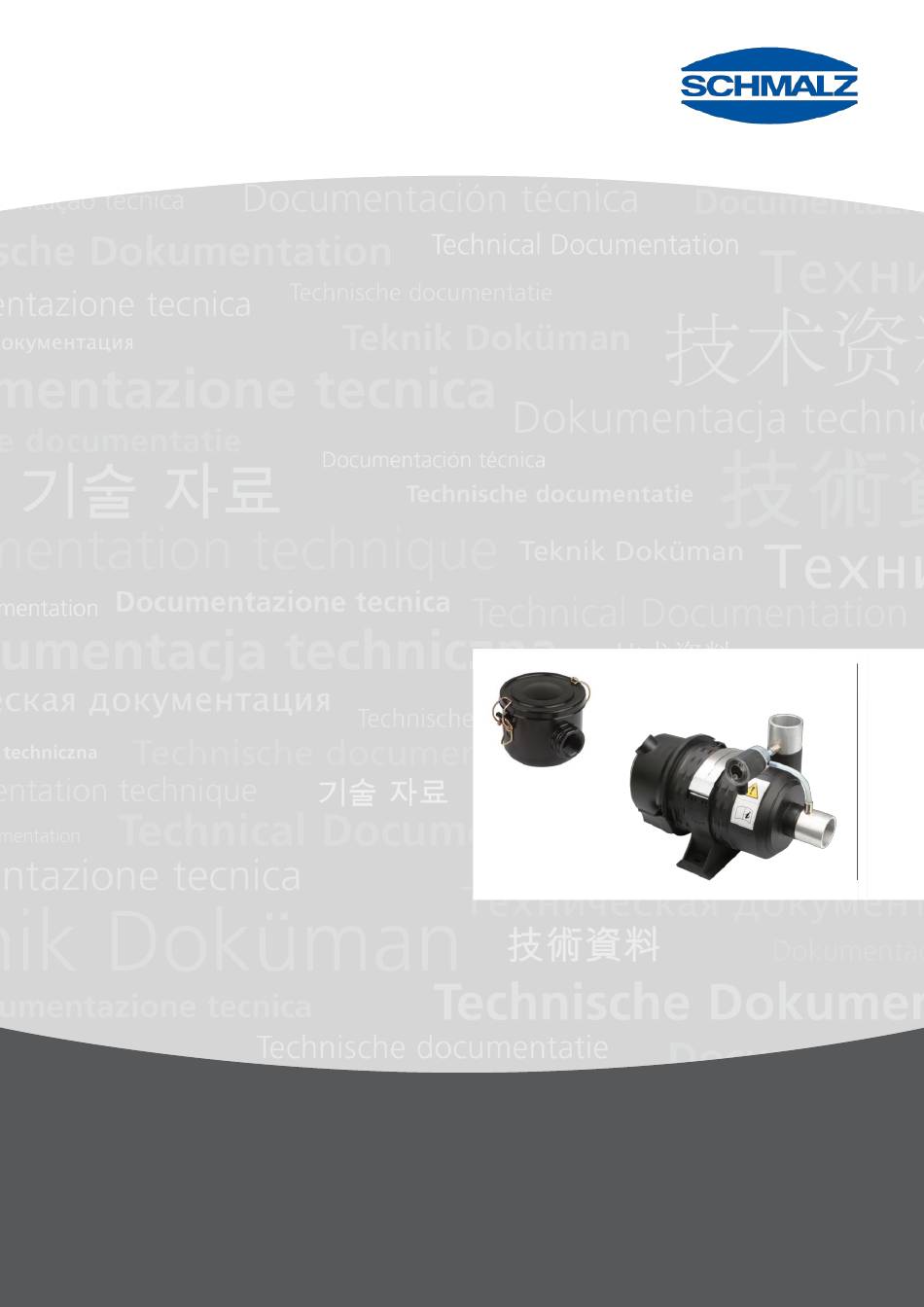

- Page 1 Innovative Vacuum for Automation Operating and Maintenance Instructions Dust filter STF… / STF-D… 30.30.01.00059/03 | 04.2018 www.schmalz.com...
- Page 2 Published by © J. Schmalz GmbH, 04.2018 This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Reproduction of the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law.
-
Page 3: Table Of Contents
Mounting ..........................10 Connecting the differential pressure monitor ..............11 3.3.1 Electrical connection .......................12 3.3.2 Setting the differential pressure ..................12 Maintenance...................... 13 Removing and cleaning filter inserts ................13 Install filter element ......................14 Spare and wearing parts ....................14 Decommissioning and disposal ................. 16 www.schmalz.com... -
Page 4: Safety Instructions
Attention This warning informs the user of a risk that could result in damage to property if it is not avoided. ATTENTION Type and source of danger Consequence ► Remedial action Important information for efficient and trouble-free use. www.schmalz.com 30.30.01.00059/03... -
Page 5: Warnings
These operating and maintenance instructions are specific to the items included in delivery from Schmalz. They do not take into account any modifications to the dust filter made by the customer, which are strictly prohibited. -
Page 6: General Safety Instructions
– including knowledge of applicable regulations – necessary to enable him or her to recognize possible dangers and implement the appropriate safety measures while performing tasks. Qualified personnel must observe the pertinent industry-specific rules and regulations.” www.schmalz.com 30.30.01.00059/03... -
Page 7: Installation Location Requirements
Make sure that no water can enter the dust filter Ensure that no warm air can be drawn in Ensure that the dust filter remains easily accessible (maintenance, cleaning and replacement of the filter insert) 30.30.01.00059/03 www.schmalz.com... -
Page 8: Product Description
Filter housing with threaded connection Quick-release fastener Mounting bracket Large design: STF-D…P STF…P with differential pressure monitor Item Designation Air inlet connection (suction cup) Air outlet connection (vacuum generator) Upper housing section Lower housing section (dust collecting pan) www.schmalz.com 30.30.01.00059/03... -
Page 9: Technical Data
5 mbar Maximum operating overpressure 100 mbar Electrical switching capacity 250V AC / 6 A 24V DC / 1 A Electrical connection AMP flat plug 6.3 mm x 0.8 mm, in accordance with DIN 46244 Certification VDE 0630 30.30.01.00059/03 www.schmalz.com... -
Page 10: Installation
1. Secure the mounting bracket with 2 screws near the vacuum generator. 2. Secure the dust filter to the mounting bracket in one of the permitted installation positions. 3. Connect the vacuum hoses with the supplied hose clamps. 10 | www.schmalz.com 30.30.01.00059/03... -
Page 11: Connecting The Differential Pressure Monitor
Before start of operations, make sure that the electrical connections of the differential pressure monitor are covered with the protective cap (8.6). Item Designation Dust filter STF-D... Differential pressure monitor Plug-in screw union STV 1/8"-6/4 Hose Hose Protective cap 30.30.01.00059/03 www.schmalz.com | 11... -
Page 12: Electrical Connection
Tighten the cable screw union (8.9). Put the protective cap (8.6) back in place and screw tight. IMPORTANT! The adjustment screws for fine tuning (A and B) are set at the factory and must not be adjusted. 12 | www.schmalz.com 30.30.01.00059/03... -
Page 13: Maintenance
► Wear eye protection ► Wear respiratory protection Small design: 1. Open all quick-release fasteners (5). 2. Remove the housing cover (3). 3. Remove the filter insert. 4. Blow the filter insert, never wash or brush 30.30.01.00059/03 www.schmalz.com | 13... -
Page 14: Install Filter Element
Filter insert FILT-EINS 3 65x70 PAP STF- STF 3-4 10.07.01.00017 3/4-IG Filter insert FILT-EINS 3 98x70 PAP STF- STF 1-1-4N 10.07.01.00018 1-1/4-IGN Filter insert FILT-EINS 128x125 PAP STF- STF 1-1-4H 10.07.01.00019 1-1/4-IGH Filter insert FILT-EINS 3 150x222 PAP STF 2-1-2 10.07.01.00020 STF-2-1/2-IG 14 | www.schmalz.com 30.30.01.00059/03... - Page 15 STF … 4.5 … / STF … 6.0 … Hose clamp SSD60 10.07.10.00017 STF … 8.0 … Hose clamp SSD76 10.07.10.00037 STF … 24.0 … Hose clamp SSD125 10.07.10.00052 STF-D … F Differential pressure monitor 21.01.06.00011 S = Spare part, W = Wearing part 30.30.01.00059/03 www.schmalz.com | 15...
-
Page 16: Decommissioning And Disposal
Before disassembling, make sure that the system is free of pressure and voltage. ATTENTION Incorrect disposal of the dust filter Environmental damage ► Dust filters and filter inserts must be disposed of in accordance with national regulations. 16 | www.schmalz.com 30.30.01.00059/03... - Page 17 In short, easy-to-understand videos we explain the extensive features of our products. Take a look, it’s worth it! www.schmalz.com/gewusst-wie Further services ranging from consultation to training can be found at www.schmalz.com/services J. Schmalz GmbH Johannes-Schmalz-Str. 1 72293 Glatten, Germany Phone +49 (0)7443 2403-0 Fax +49 (0)7443 2403-259 schmalz@schmalz.de...
