Klimaire KSIH Series Manual

Remote controller illustration (function selection)
Hide thumbs

Advertisement

Quick Links

Download this manual

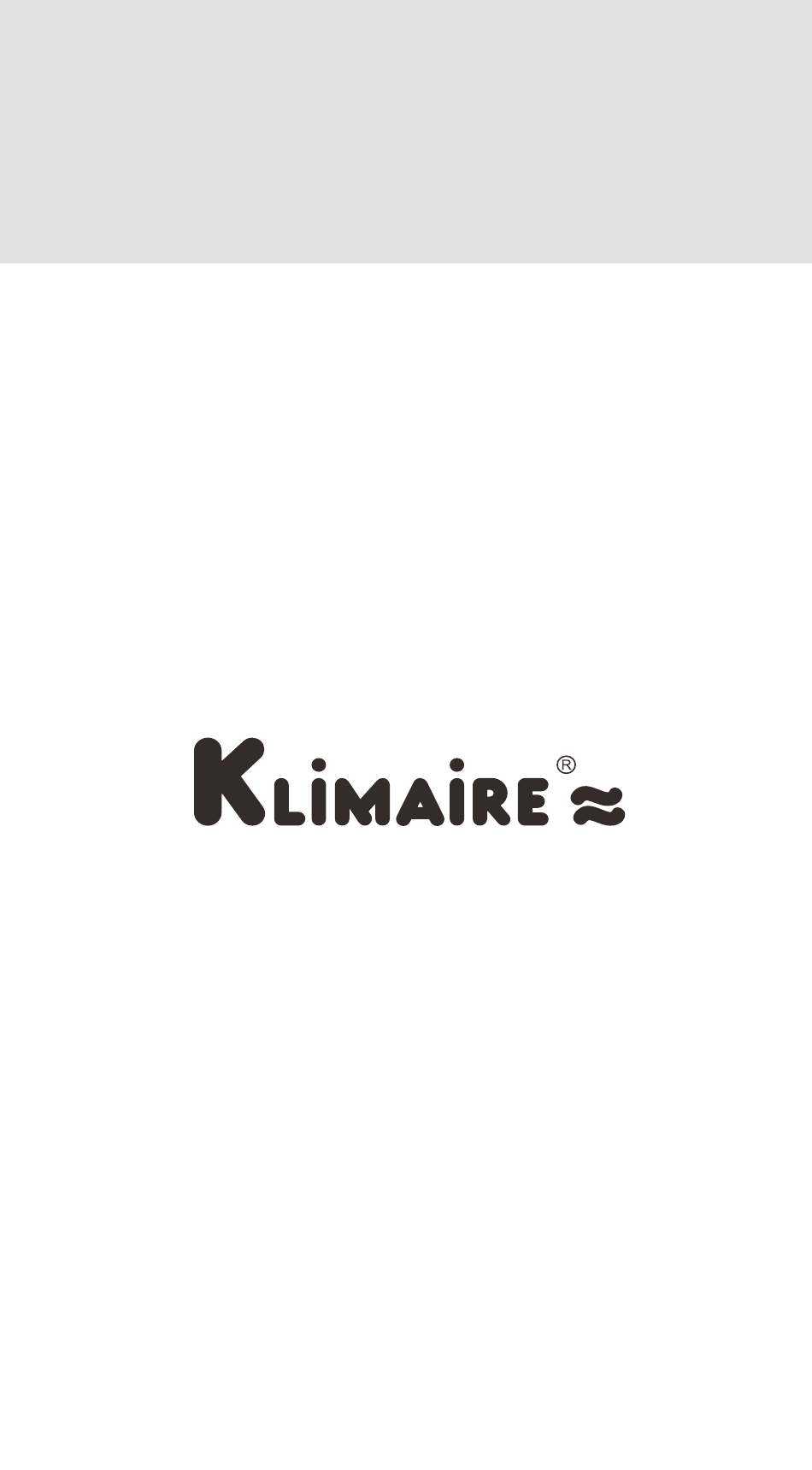

KSIH
SERIES
REMOTE CONTROLLER ILLUSTRATION

(Function selection)

Thank you very much for purchasing our products.
Please read this manual carefully before using the
remote controller.

Advertisement

loading
Need help?

Need help?

Do you have a question about the KSIH Series and is the answer not in the manual?

Questions and answers

Related Manuals for Klimaire KSIH Series

Summary of Contents for Klimaire KSIH Series

  • Page 1: Function Selection

    KSIH SERIES REMOTE CONTROLLER ILLUSTRATION (Function selection) Thank you very much for purchasing our products. Please read this manual carefully before using the remote controller.
  • Page 2 CONTENTS Handling the remote controller ........Remote controller specification........Features of remote controller buttons ....... How to set up the funcitons.........

  • Page 3: Handling The Remote Controller

    Handling the remote controller Location of the remote controller. Keep the remote controller where its signals can reach the receiver of the indoor unit. (a distance of 8m is allowed). CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.

  • Page 4: Remote Controller Specification

    Remote Controller Specification Model RG57A3/BGEF Rated Voltage 3.0V(Dry batteries R03/LR03×2) Signal Receiving Range Environment -5ºC~60ºC Features of Remote Controller buttons NOTE: After installing the batteries, during the first 30 seconds period, please holding down the MODE, FAN and TIME ON buttons together for 5 seconds, the remote controller will enter function reset state, and LCD window displays “F1".
  • Page 5 IMPORTANT: The remote controller is only enabled within10 minutes after the indoor unit is powered on, and the indoor unit must be switched off. POWER OFF button: Press this button to turn off ON/OFF the unit MODE button: Used to modify the selected function.

  • Page 6: How To Set Up The Funcitons

    How to set up the functions NOTE: The indoor unit will beep for 2 seconds indicating the function being set up successfully. Auto-start function 2. Press MODE button. Then 1. Press “ ” & “ ” press “ ” & “ ”...
  • Page 7 3. Press TIMER ON button. TIMER ON Anti-cold air function Intelligent anti-cold air function setting: NOTE: The parameter of intelligent anti-cold air is changed with the room temperature. After the room temperature raised, the temperature of anti-cold air would raise too, which can make you feel more comfortable. After the room temperature decreased, the anti-cold air temperature would decrease too, which can improve the fan speed and bring fast heating operation.
  • Page 8 General Anti-cold air function setting: NOTE: The parameter of general anti-cold air is fixed regardless of room temperature. 1. Press “ ” & “ ” button to choose “F3”. TEMP 2. Press MODE button. Press FAN button to to choose parameter .
  • Page 9 Speed control of indoor fan motor after the set temperature reached 1. Press “ ” & “ ” button to choos “F4”. TEMP 2. Press MODE button. Then press “ ” & “ ” button to select “1”, “2”, “3” or “4”. MODE TEMP Indicates stopping fan motor...
  • Page 10 Louver angle memory function 1. Press “ ” & “ ” button to choose “F5”. TEMP 2. Press MODE button. Then press “ ” & “ ” button to select “1”, “2” or “3”. MODE TEMP Indicates cancelling memory function. Indicates the louver angle memory function is enabled under switching off...
  • Page 11 Heating only or Cooling & heating setting 1. Press “ ” & “ ” button to choose “F6”. TEMP 2. Press MODE button. Then press “ ” & “ ” button to select “HH” or “CH”. (HH: Heating only, CH: Cooling &...
  • Page 12 Cleaning Filter Reminder 1. Press “ ” & “ ” button to choose “F9”. TEMP 2. Press MODE button. Then press “ ” & “ ”button to choose “ON” or “OFF”. 3. Press TIMER ON button to confirm. Filter Replacement Reminder 1.
  • Page 13 High temperature setting 1. Press “ ” & “ ” button to choose “E3”. TEMP 2. Press MODE button. Then press “ ” & “ ” button to set the temperature in a range of 25ºC to 30ºC. 3. Press TIMER ON button to confirm. Special Anti-cold air function setting: 1.
  • Page 14 Network Address setting 1. Press “ ” & “ ” button to choose “E6”. TEMP 2. Press MODE button. Then press “ ” & “ ” button to choose the network address between 0 to 63 or “ ”. “ ”...
  • Page 15 Twins setting 1. Press “ ” & “ ” button to choose “E8”. TEMP 2. Press MODE button. Then press “ ” & “ ” button to choose 0(no twins), 1(main unit) or 2(subsidiary unit) 3. Press TIMER ON button to confirm. Static pressure setting 1.
  • Page 16 Point check function Press the “LED DISPLAY” button( “Mute” button for some remote controllers) of remote controller three times and then press “AIR DIRECTION” button ( “Swing” button for some remote controllers) three times within 10 seconds, the buzzer ring last 2 seconds,the air conditioner will enter the information enquiry status.
  • Page 17 When the air condtioner enter the “information enquiry” status, it will display the code value in the next 25s after display name is displayed, the details are as follows, Display Enquiry Remark Meaning value information -1F,-1E, T1,T2,T3, -25,-24,-23,-22, 1. All the displaying -1d,-1c, T4,T2B,TP, -21,-20...
  • Page 18 Display Enquiry Meaning Remark value information Reserve 0-FF Reserve 0-FF 0-FF Reserve 0-FF Reserve 0-FF Reserve 0-FF Reserve 0-FF Reserve...
  • Page 19 2190 NW 89 Place, Doral, FL 33172 - USA Tel: (305) 594 - 4972 Fax (305) 675-2212 www.klimaire.com sales@klimaire.com The Klimaire logo is a registered Trademark of Klimaire Products inc. Copyright 2016 Klimaire Products Inc.

This manual is also suitable for:

Rg57a3/bgef
