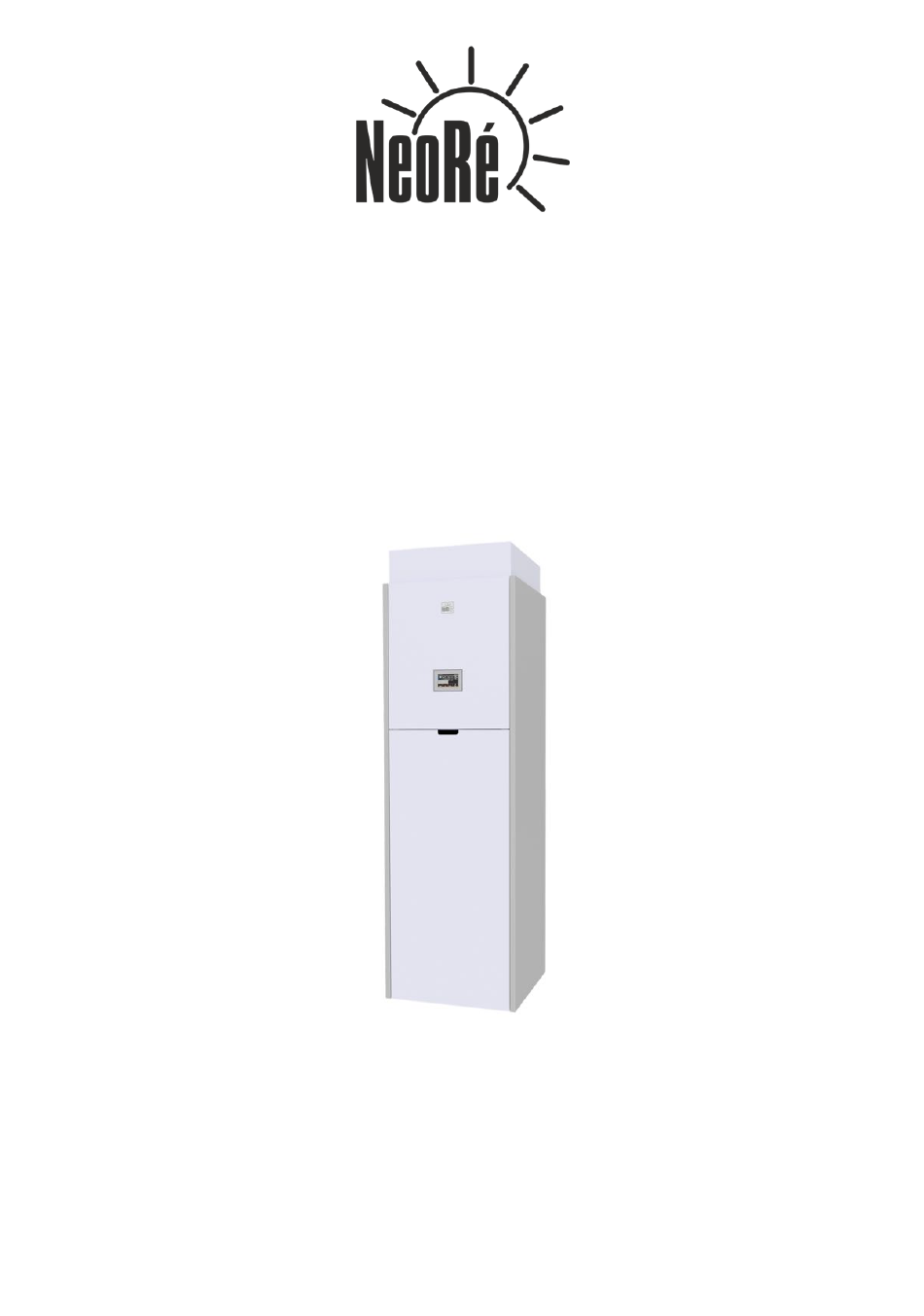

Page 1: User Manual

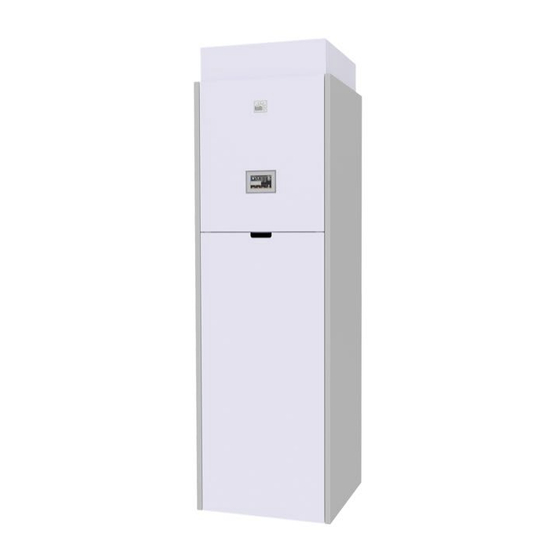

User manual NeoRé TG series heat pump air-water NeoRé TG TX NeoRé 8 TG TX NeoRé TG TX NeoRé TG TX NeoRé 6 TG TX NeoRé 8 TG TX HP NeoRé TG TX HP NeoRé TG TX HP NeoRé... -
Page 2: Quick Start
Quick start The Quick Start Guide can only be used if the heat pump installation has been completed and has been properly started and tested by the installer. Division and description of the basic control screen . Object part - Displays heating / cooling mode, object temperature, circulation pump run, and object status. Use the button to switch the heating or cooling on and off . - Page 3 Winter operation with water heating On the overview screen(sekce Overview), set the icon to "on". The "off" and "on" icon status is shown in the image (p. ). In the setting DHW set the required hot water temperature and delay of the supplemental electric heating according to the table ...
-
Page 4: Table Of Contents
Contents Safety instructions . Safety warnings ........... . . .... - Page 5 8.. Electronic anti-corrosion system - ACES ...........
-
Page 6: Safety Instructions
. Safety instructions . Safety warnings Read the instructions carefully before installing, commissioning or maintaining the equipment. Compliance with the described procedures for installation and operation of the equipment is important for years of trouble-free operation. Failures and malfunctions that result from non-compliance with safety instructions, installation procedures and operating rules will not be taken into account, including damage or destruction of other related equipment. -
Page 7: Zákonné Podmínky
In case of re, disconnect the appliance from the power supply and extinguish with a snow or powder extinguisher. In case of heating water leakage, switch off all circuit breakers located on the indoor unit and contact the service organization indicated on the label on the indoor unit. -
Page 8: Storage And Transport Conditions
. Storage and transport conditions Indoor unit NeoRé IUTX 6-8 Environment not dusty, non-aggressive Temperature range + to 45°C Relative humidity max % Outdoor unit OU GMx or OU GPx Environment not dusty, non-aggressive Temperature range - to 45°C Relative humidity max % ... -
Page 9: Intended Use Of The Product
. Product specications . Intended use of the product The NeoRé heat pump is designed for heating houses or smaller industrial buildings. The product is intended for connection to a low temperature heating system. The ideal heating system is mainly oor, wall and ceiling heating. -
Page 10: Description Of The Outdoor Unit
For comfortable and convenient operation, the NeoRé heat pump also offers the possibility to connect via a web browser from a computer, mobile phone or tablet, even remotely thanks to the Neota Route service. NeoRé TX COMFORT series NeoRé TX HIGH POWER series NeoRé... -
Page 11: Table Of Technical Parameters
.6 Table of technical parameters Figure .: Table of technical parameters ... -
Page 12: How It Works And Its Proper Use
. How it works and its proper use . The principle of the heat pump function The basic prerequisite for the operation of a heat pump is a heat transfer medium that has suitable properties for changing the state of matter at a given pressure and temperature. All these basic components are outlined in the gure below - Principle diagram of the heat pump function. -
Page 13: Low Temperature Heating System
.. Low temperature heating system An example of a low temperature heating system is: • oor heating • ceiling heating / cooling • wall heating Large area radiant systems are most suitable for use with a heat pump. A heat pump is most effective with these systems and its lifetime is higher. -
Page 14: Description Of The User Interface
. Description of the user interface Before you make any changes to your device settings, read carefully what each feature means and what the settings inuence. Improper adjustment can result in uncomfortable and uneconomical operation, resulting in unnecessary wear and tear on the appliance and more expensive operation. .... -
Page 15: Overview
. Overview Overview screen (g. . p. ) is divided into four columns. In the rst column on the left, the top section shows the heating mode using a colour bar, red stands for heating, blue for cooling. Furthermore, the current heating water temperature is displayed and the circulation pump run is depicted by means of a triangular pictogram. - Page 16 Figure .: Overview section More.. Energy screen (g. . p. 6) shows in its left part the quantities needed to calculate the current delivered performance, the current delivered performance and also the counter of total energy supplied. This counter can be reset with the button , e.g.
-
Page 17: The Meaning Of Graphic Symbols And Text Abbreviations
Figure .: Section Overview More.. Status Error Under no circumstances may the stored operating data be deleted or modied. The data record is used to analyse the operation and failures of the device. Damage or deletion of records may affect the recognition of claims. ..... - Page 18 Attenuation - attenuation is active, parameters can be set in the section Higher tariff - operation of the device is blocked due to high electricity tariff DHW heatling - the DHW tank is being heated by the heat pump DHW suppl.
-
Page 19: Object
. Object The right side of the screen (g. .6 p. ) is reserved for navigation. Use the buttons ntext to browse through each section window. There is a scroll bar next to the arrows to indicate which screen of the section is currently being displayed. This way of navigation is common to all sections. Activating results in that heating / cooling of the object runs only at times of low tariff. - Page 20 The speed of reaction to temperature changes is related to the intervention size allowed (the volume of the pre- set coefcient). Higher coefcient means faster reaction, but too high a value can cause unpleasant temperature uctuations. Item shows the current calculated output water temperature. Click the orange square to get to the next screen where the equithermal curve can be edited.
- Page 21 Equithermal curve setting Heating water temperature for: Outside temperature Floor heating Radiators 19°C 22°C 25°C 6°C 28°C 40°C 7°C 33°C 45°C 20°C 38°C 50°C Table .: Equithermal curve setting The equithermal curve must then be ne-tuned to match the nature of the heated object. For this ne-tuning, use the item .
-
Page 22: Dhw
The item enables to lower the output temperature of the heating water.In the settings (g. ?? p. ), two time intervals are available for each day of the week. Click the orange rectangles to set the desired times. The heating water temperature will not be affected at the selected time intervals. Outside these time periods, the attenuation is active and the heating water temperature is reduced by the value set in the last window of the attenuation timing program. - Page 23 If item is activated (orange), it means that once a week on Friday starting from midnight, heating of hot water in the tank by the electric heater is on, and it turns off after reaching temperature set in item . This temperature must be set to at least 6°C. If this temperature is not reached after eight hours of electrical heating, the disinfection program is terminated.
-
Page 24: Charts
. Charts In the Charts section (g. . p. ), there are ve screens that serve for navigation via navigation keys. Records from the last ten hours of the heat pump operation are graphically displayed on individual screens. The individual graphs describe the progresses of . - Page 25 Figure .: Settings section - screen Item enables to view the complete history of recorded information about the operation of the heat pump (data is only available when accessed through a web browser). Item enables to set up network addresses, reports, and remote access (g. .6 p. 6, g. . p. 6 and g.
- Page 26 Figure .6: Settings section - screen Network settings in the chapter . - Neota Route (cloud) (p. ). The rst item is which serves to set the Neota Route server address. The item serves to enter the user name to log in to the Neota Route service. The user name is pre-set as the pump serial number.
- Page 27 Figure .8: Settings section - screen Network settings Figure .: Settings section - screen Network settings E-mail settings ...
-
Page 28: Other
Language setting screen (g. . p. 8) offers several languages for the user interface. Click on the appropriate language to select it. Figure .: Settings section - screen Language settings Silent mode screen (g. . p. 8) serves to switch on silent mode, when the speed of fan and compressor decrease, to reduce maximal noise of outdoor unit by ... - Page 29 The item shows the current temperature of the pool. The item sets the required temperature the pool heating should reach. Figure .: Section Other - screen The rst item in the second screen of the section (g. . p. ) is which sets the hysteresis of the pool temperature.
-
Page 30: Web Server Control
If you want to control the heat pump from an outdoor internet network, contact your Internet service provider. • The heat pump’s default IP address is • The username is "neore" and the password is "neore" You can change this address and other settings in the section of the heat pump regulator. - Page 31 Then follow the instructions in the Web server control chapter .8 str. . Find out the heat pump’s IP address in the Settings section - screen Network settings , or by a network scanner in your router or by an application (e.g. Network Scanner), where you can see the heat pump as TECO device. ...
-
Page 32: Commissioning
. Commissioning . Commissioning of the heating system Before starting the heat pump, it is necessary to water the circuit. It is lled with water up to a base pressure of -. bar. Depending on the height of the water column of the heating system, the base pressure increases by . bar per meter of height. -
Page 33: Putting Out Of Operation
6. Putting out of operation Beware of danger of freezing that may cause damage or complete destruction of the heating system and the heat pump when putting the device out of operation and completely shutting down the device in winter. 6.... -
Page 34: Errors And Status Messages
. Errors and status messages . Error code structure The error code consists of four digits. indicate critical failures. These are defects that result in the heat pump shut-down. The next two digits indicate the status of connected temperature sensors. Temperature sensor faults do not affect the operation of the heat pump. -
Page 35: Errors And The Procedure To Solve Them
- Defective object temperature sensor - sensor disconnected - Defective object temperature sensor - sensor short-circuited - Defective DHW temperature sensor - sensor disconnected 6 - Defective DHW temperature sensor - sensor short-circuited - Defective storage tank temperature sensor - sensor disconnected 8 - Defective storage tank temperature sensor - sensor short-circuited If the value of the third digit is other than , some of the sensors are defective and the quality of the temperature control may decrease. - Page 36 The regulator is equipped with the function . This function causes the heat pump to restart after a critical failure subsides, such as restoring sufcient system ow. If autoreset is activated times, it is obvious that it is not a random defect. The heat pump then remains in a error condition and professional intervention is required.
-
Page 37: Status Messages
To eliminate this failure, contact a service organization. xxx and xxx failures Outlet water temperature sensor defective. If the heating water temperature sensor fails, the operation of the heat pump is stopped as there is a risk of damage to the indoor unit due to lack of information about the output water temperature. The temperature sensor must be repaired or replaced with a new one, thus contact your service organization. -
Page 38: Security Features
To repair the sensor, contact a service organization. xxx and xxx status This status means that the second circuit temperature sensor is not connected or is defective. If there is a second heating circuit in your installation, this circuit is shut down until the fault is rectied. Other functions of the heat pump work without changes. - Page 39 Venting process is carried out in cycles when the circulation pump rst stands still for seconds and then works at full power for ten seconds in each cycle. These cycles are repeated continuously until the required minimum ow rate is reached.
-
Page 40: Service Organizations
Cooling water temperature too low Protection from too low water temperature during cooling when the cooling water temperature drops below the set limit. The limiting temperature for shut-down of the outdoor unit and ending the cooling process is determined as the cooling water temperature lowered by the decreased temperature of the cooling water. -
Page 41: Maintenance Of The Equipment And Components
8. Maintenance of the equipment and components Due to its design, the heat pump is almost maintenance-free. Basic maintenance is performed by the service organization at regular annual inspections. During this inspection, all important elements of the heat pump are checked, in particular the operation of the refrigerant circuit. -
Page 42: Indoor Unit Maintenance
8. Indoor unit maintenance The indoor unit requires only minimal maintenance. There are no user-serviceable parts inside the machine. Use only a damp cloth to clean the surface. Be careful when the device is in operation and under voltage. We recommend that the indoor unit be maintained outside the heating/cooling season when switched off with no voltage. - Page 43 anode rod out of the container. This residue is then unscrewed from the brass plug and a new Mg anode rod is screwed in instead. The new rod is again inserted into the container and the plug is screwed on. The magnesium anode rod can be ordered from the manufacturer (see chapter ...
- Page 44 8. Maintenance Plan Figure 8.: Maintenance Plan ...
- Page 45 . Disposal of equipment . Disposal of packaging The EKO - KOM system is based on the cooperation of industrial companies (clients), cities and municipalities. This non-prot system ensures that waste from used packaging is sorted by the consumer, collected by collection equipment, ne-sorted and nally used as a secondary raw material.
- Page 46 . Manufacturer contact MANUFACTURER NEOTA CZ s.r.o. Štefánikova /8 6 Brno IČO DIČ CZ PLACE OF OPERATION NEOTA CZ s.r.o. Jankovice 6 Holešov Telephone: + 8 6 E-mail: support@neota.eu . Documents to download All the product documenation is avilable on website www.neota.eu/en/download as PDF. ....
