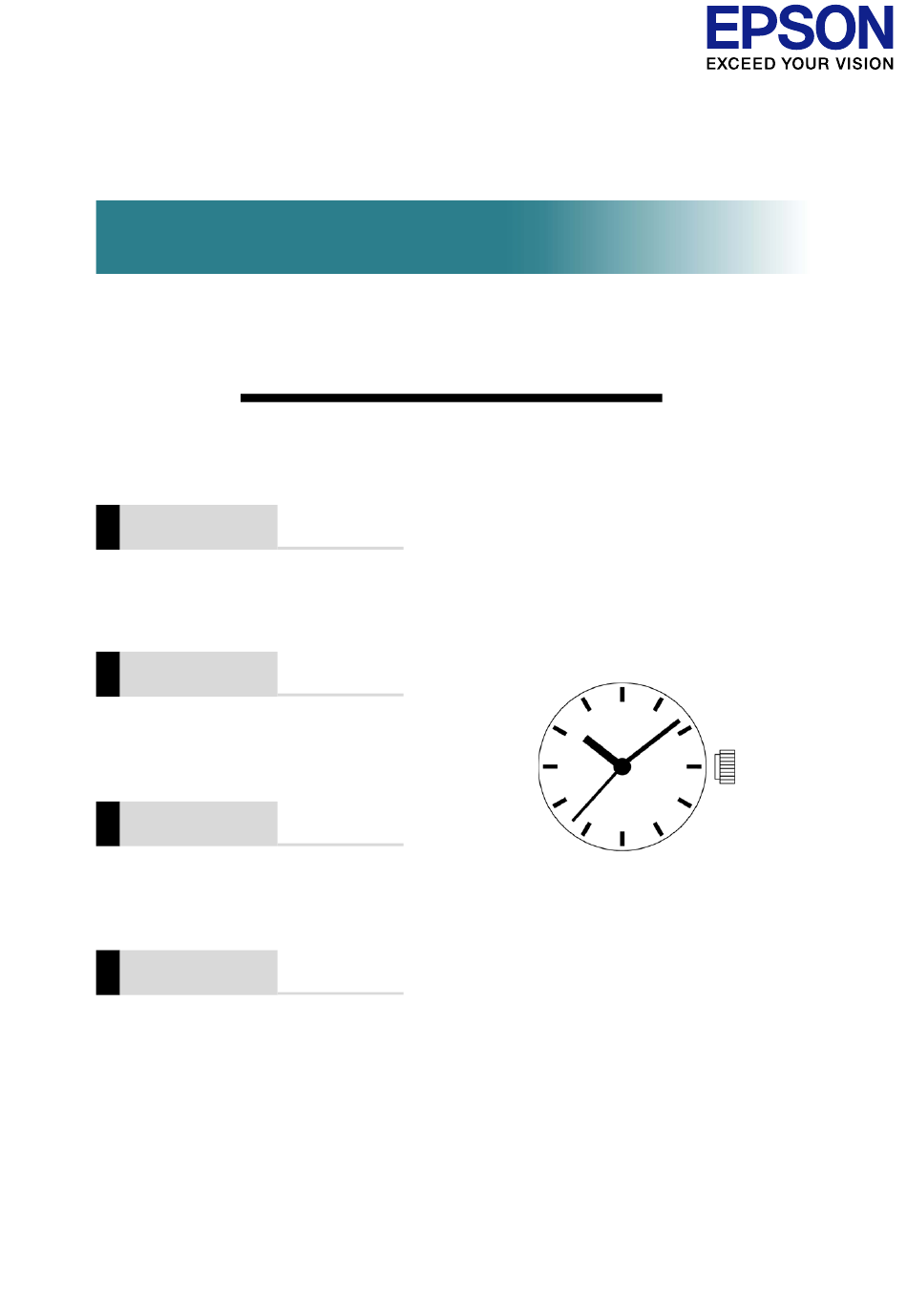

Watch Movement Specification and Drawing
SOLAR SERIES
Cal. AS01A
Movement Size
6 3/4 × 8'''
Casing Diameter
15.3 × 17.8 mm
Height
3.45 mm
Running Time
Approx. 4 months

Advertisement

loading

  Summary of Contents for Epson As01A solar series

  • Page 1 Watch Movement Specification and Drawing SOLAR SERIES Cal. AS01A Movement Size 6 3/4 × 8’’’ Casing Diameter 15.3 × 17.8 mm Height 3.45 mm Running Time Approx. 4 months...
  • Page 2 Date: 30/Jul./'19 Cal. AS01A Items Rev. Page Features Specifications Appearance Casing Hand fitting Hand setting stem Dial-01 7-01 Dial-02 7-02 Dial-03 7-03 Casing ring Solar cell unit-01 9-01 Solar cell unit-02 9-02 Solar cell unit-03 9-03 Attention-01 10-01 Attention-02 10-02 Attention-03 10-03...
  • Page 3 Date : 24/Apr./'15 Cal. Features AS01A Rev. : 01 1.Solar-powered watch This watch is a solar-powered watch containing a solar cell underneath the dial to convert any form of light into '' electrical energy'' and store the power in a secondary battery. 2.
  • Page 4: Specifications

    Date : 24/Apr./'15 Cal. Specifications AS01A Rev. : 01 Solar Quartz 6 3/4 × 8''' Movement / Three Hands (H/M/S) 1. MOVEMENT DIMENSIONS Outside diameter 15.30mm(3-9H) × 18.20mm(12-6H) Casing diameter 15.30mm(3-9H) × 17.80mm(12-6H) Total height 3.05mm (Including solar cell : 3.45mm) 2.
  • Page 16 24/Apr./'15 Date : Cal. Attention-01 AS01A Rev. : 01 1. How to remove the setting stem When removing the setting stem, put the setting stem at normal position and push the ''setting lever'' by tweezers. (Refer to the Fig.[0].) The ''setting lever'' can not be push if the setting stem is not at normal position. Fig.[0] 2.
  • Page 17 Date : 24/Apr./'15 Cal. Attention-02 AS01A Rev. : 01 6. Attention for the secondary battery unit Please set the exclusive secondary battery unit. (The secondary battery is Titanium-lithium-ion battery without any environmentally harmful substances.) If the silver oxide battery is accidentally set and charged, there is a possibility of battery explosion. To prevent from the battery explosion, it is adopted safety structure not to charge the silver oxide battery even if it is accidentally set.
  • Page 18 Date : 24/Apr./'15 Cal. Attention-03 AS01A Rev. : 01 7.Attention for hands disassemble When the hand is disassembled, please be sure to hold the dial. If the hand is disassembled without holding the dial, it may have a possibility to break the movement. Hand remover 8.
